FISCHER FT90 - 3-Channel Version P;T;Rh

FISCHER Mess- und Regeltechnik GmbH Start-up | 4
BA_EN_FT90 27/108
4.2.1.2 3-channel version P/T/rH
Assignment:
Channel 1: Differential pressure
Channel 2: Temperature
Channel 3: Humidity
The display can be changed using the 'Meas.data display' menu. The
three channels can be displayed individually or at the same time. The bar graph
display always shows all three measuring channels.
Measuring point 1
mbar
Pa27.5
K1
1 2 3 4
Measuring point 1
%RH
Pa27.5
K3
1 2 3 4
Channel 1
channel 3
Measuring point 1
°C
Pa21.4
K2
1 2 3 4
channel 2
Indicator Colour change
Switching outputs

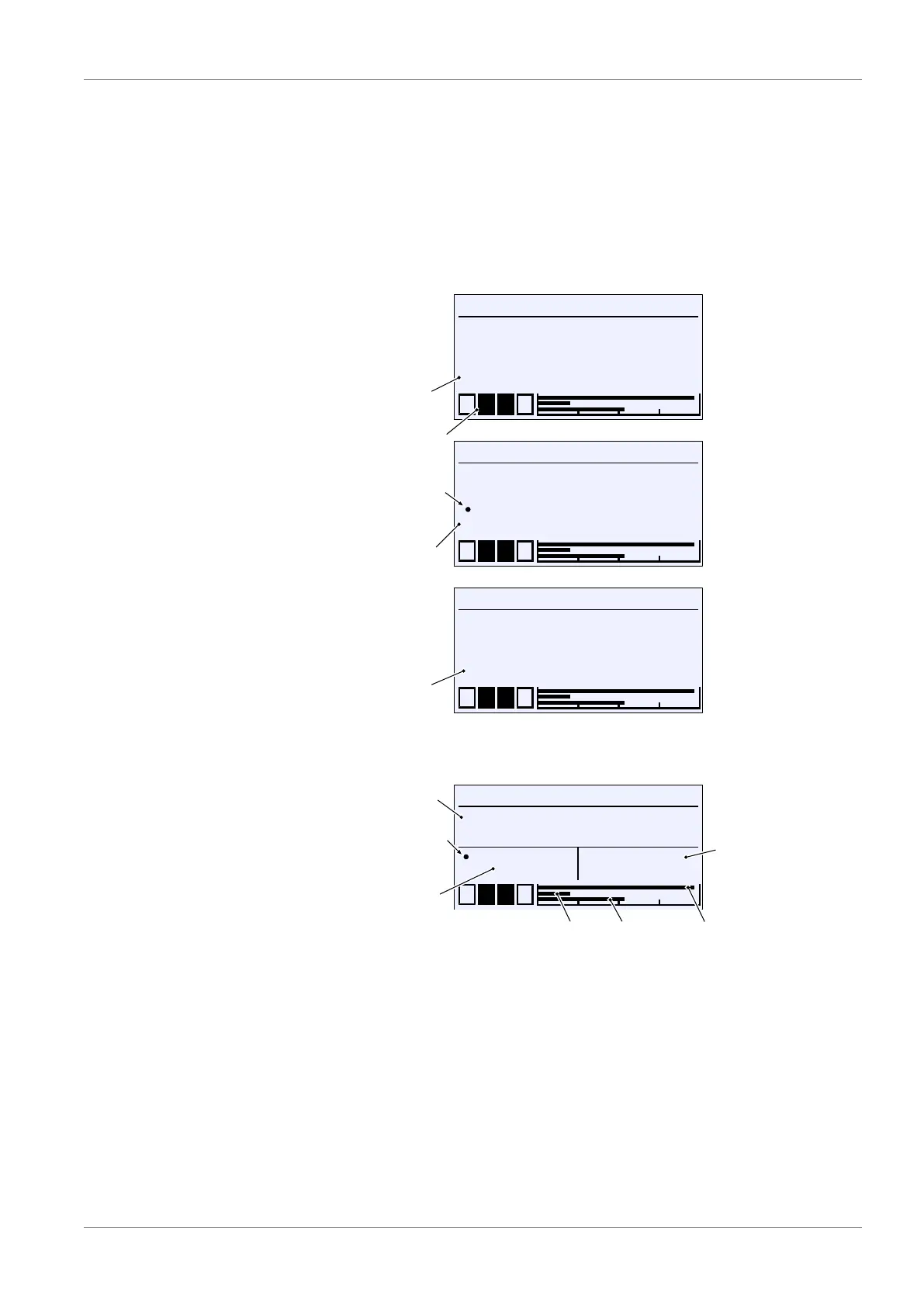

Fig.32: Measuring data display (individual channels)
Measuring point 1
1 2 3 4
K2 K3
K1
27.547
21.4
°C
54.6
mbar
%rF
U
Channel 2
Channel 3
K1
K2 K3
Channel 1
Indicator Colour change
Fig.33: Measuring data display (3 channels)
