5.5.1.5.5 Colour change C1 delay off
Path: \Configuration\Channel 1\Colour change C1\Col.ch. C1 delay off
Level: 4
Col.ch. C1 delay off
1 2 3 4
OK CancelEdit
0
s
U

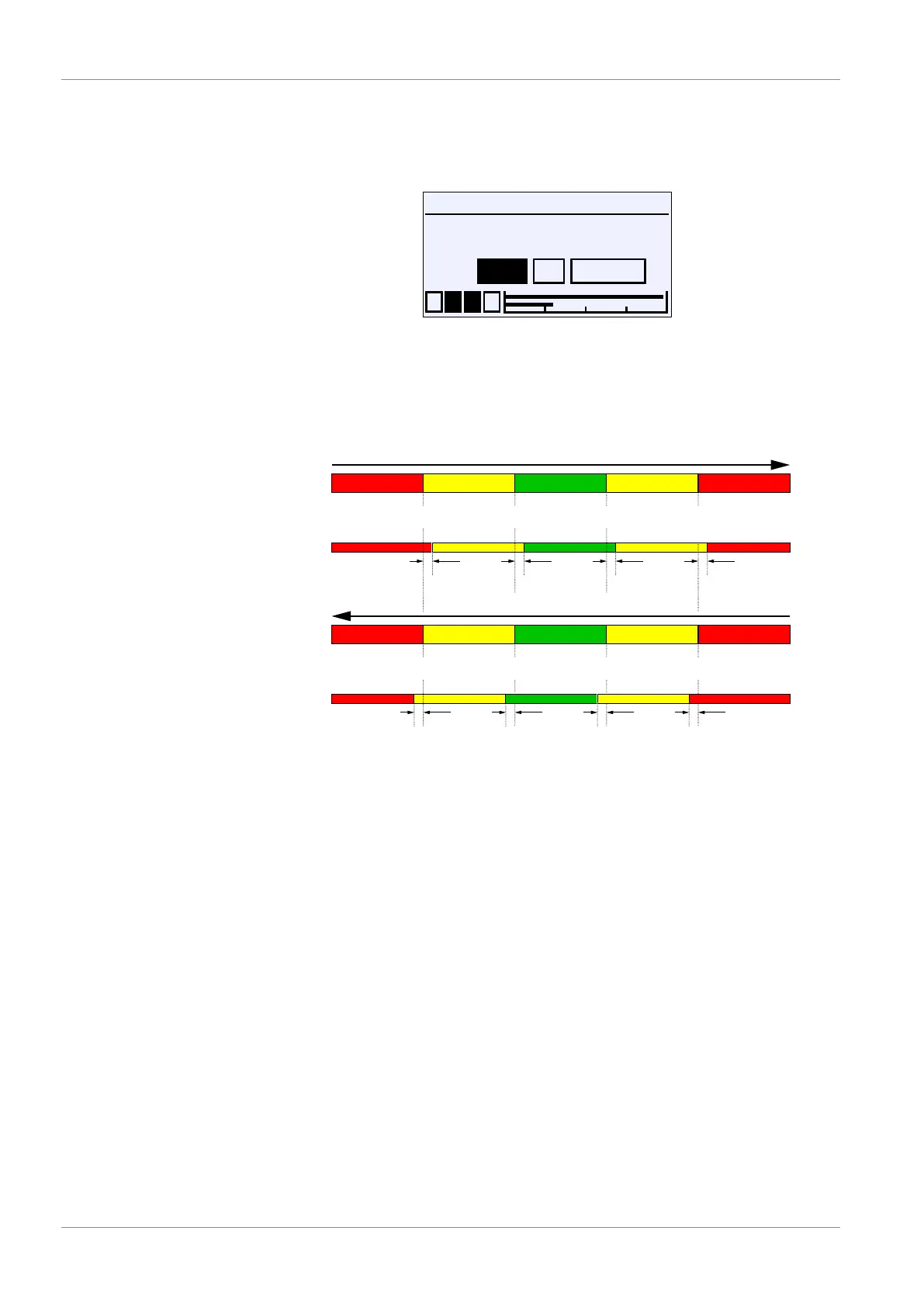

Fig.111: Colour change C1 delay off
The deactivation delay acts when changing from a higher risk level to a lower
risk level.
This results in the following connection between the delay and the colour
change:
Danger level
Delay
Danger level
Delay
increasing signal
RED REDYELLOW YELLOWGREEN
2 1 0 1 2
S1 S2 S3 S4
falling signal
RED REDYELLOW YELLOWGREEN
2 1 0 1 2
S1 S2 S3 S4
t
OFF
t
OFF
t
ON
t
ON
t
ON
t
ON
t
OFF
t
OFF
Fig.112: Colour change delay
