2021-02-03 09:56:53:End of SunSpec detection on
ethernet1. 1 devices found.
SunSpec detection completed on the Ethernet interface. 1 device was detected.
• It is always possible to interrupt detection by clicking the “Abort detection” button. But this is
not recommended, because some equipment can be disturbed if the detection is stopped in
the middle of a discovery.

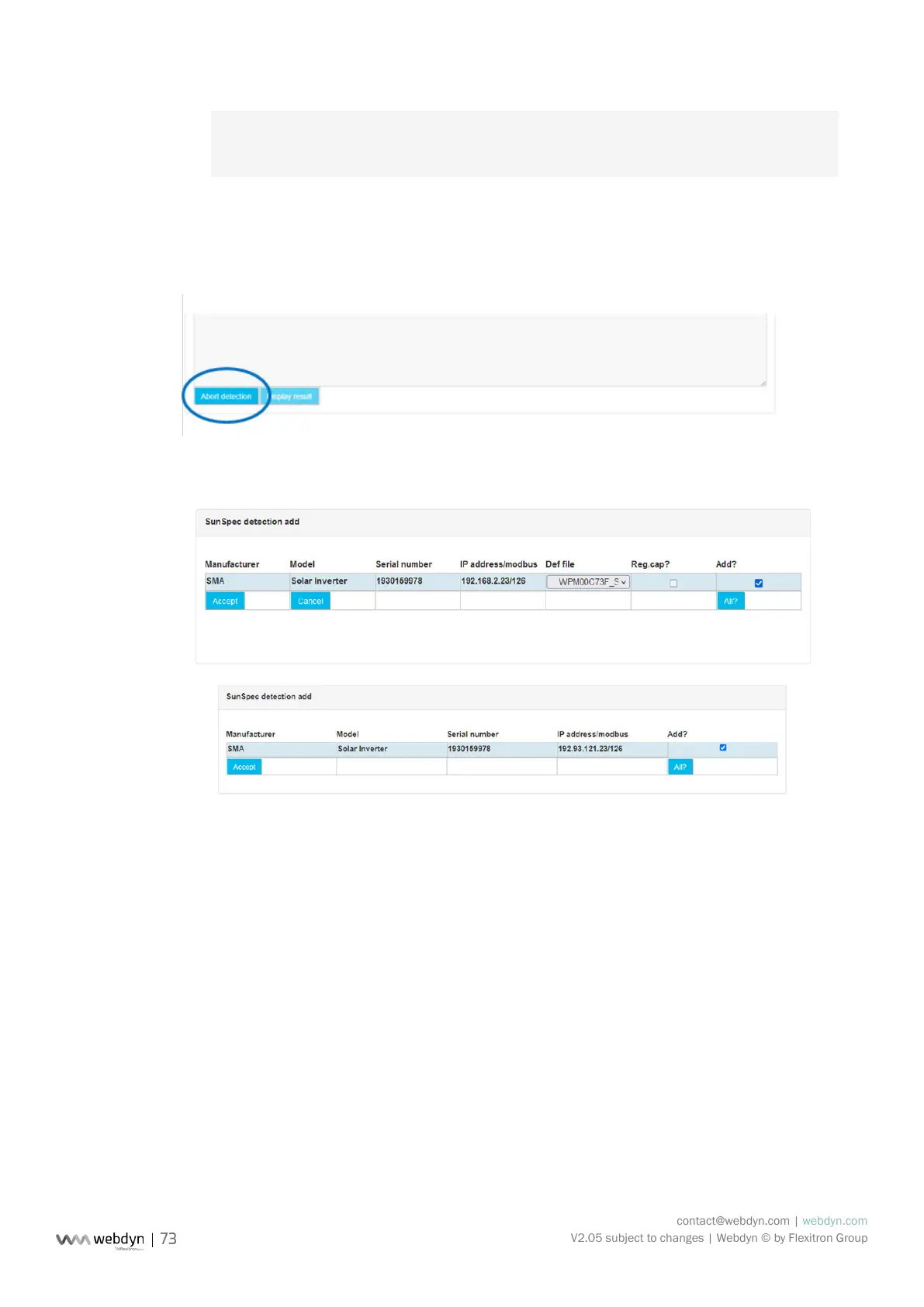

• At the end of the SunSpec detection the last detection page is used to view all detected devices
and eventually to add them to the conguration.
This screen therefore displays all the detected devices, as well as a certain amount of
information read in the SunSpec device tables (model, serial number, address, manufacturer)
as well as the name of the denition le associated with it.
There is also a checkbox at the right to select the devices to add to the conguration. Note
that if the detected device is already part of the conguration, the checkbox is not checked by
default. Otherwise the checkbox is checked for automatic addition.
Once the devices have been selected, a click on the “Accept” button imports the new
conguration to the concentrator and the device appears in the congured devices.
The variables for this new device will be generated based on the detected SunSpec tables.
Thus, for each detected SunSpec table, the following variables will be created:
• <idTable>_tableId: this variable will contain the identier of the table in numeric form, as
a 16-bit integer
• <idTable>_tableSize: this variable contains the size of the table in number of registers,
as a 16-bit integer
