DAD 143.x User Manual Profinet Rev.1.1.1 March 2023 Page 54 of 95
02 - Peak value (Maximum)
03 - Average value (check weigher)
06 - Valley value (Minimum)
9.9.4 Value
[Index 0x2600 Sub 0x01 / 0x02 / 0x03]
This command is used to read or setup the 3 setpoints S0, S1 and S2. Permitted value range is +/- 999 999.
Slave (DAD143.x) responds
Request: Setpoint S1 = 1500 d
Setup: Setpoint S1 = 3000 d
Factory defaults d
9.9.5

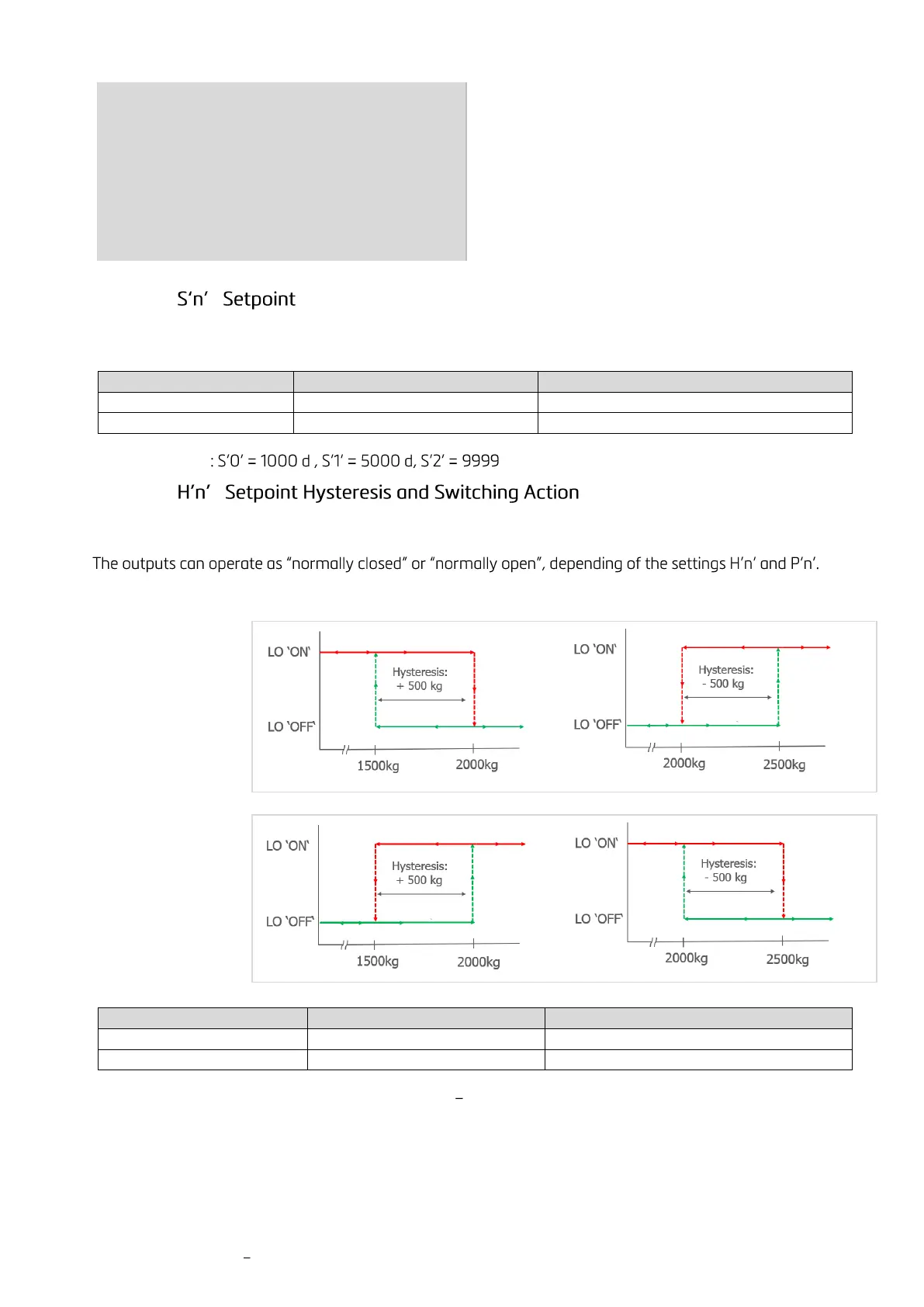

[Index 0x2700 Sub 0x01 / 0x02 / 0x03]
The switching logic will be defined by the numeric value of hysteresis and the polarity.
Examples of the swichting actions for a Setpoint value of 2 000kg
Polarity = 0 [OFF]:
Polarity = 1 [ON]:
Slave (DAD143.x) responds
Request: hysteresis setpoint S1
Setup: hysteresis setpoint S1 to 100 d
Allowed hysteresis values are within the range from 32 768 to +32 767 at a step size of 1.
