59
Limitorque QX Electronic Actuator FCD LMENIM3306-06 – 07/14
flowserve.com

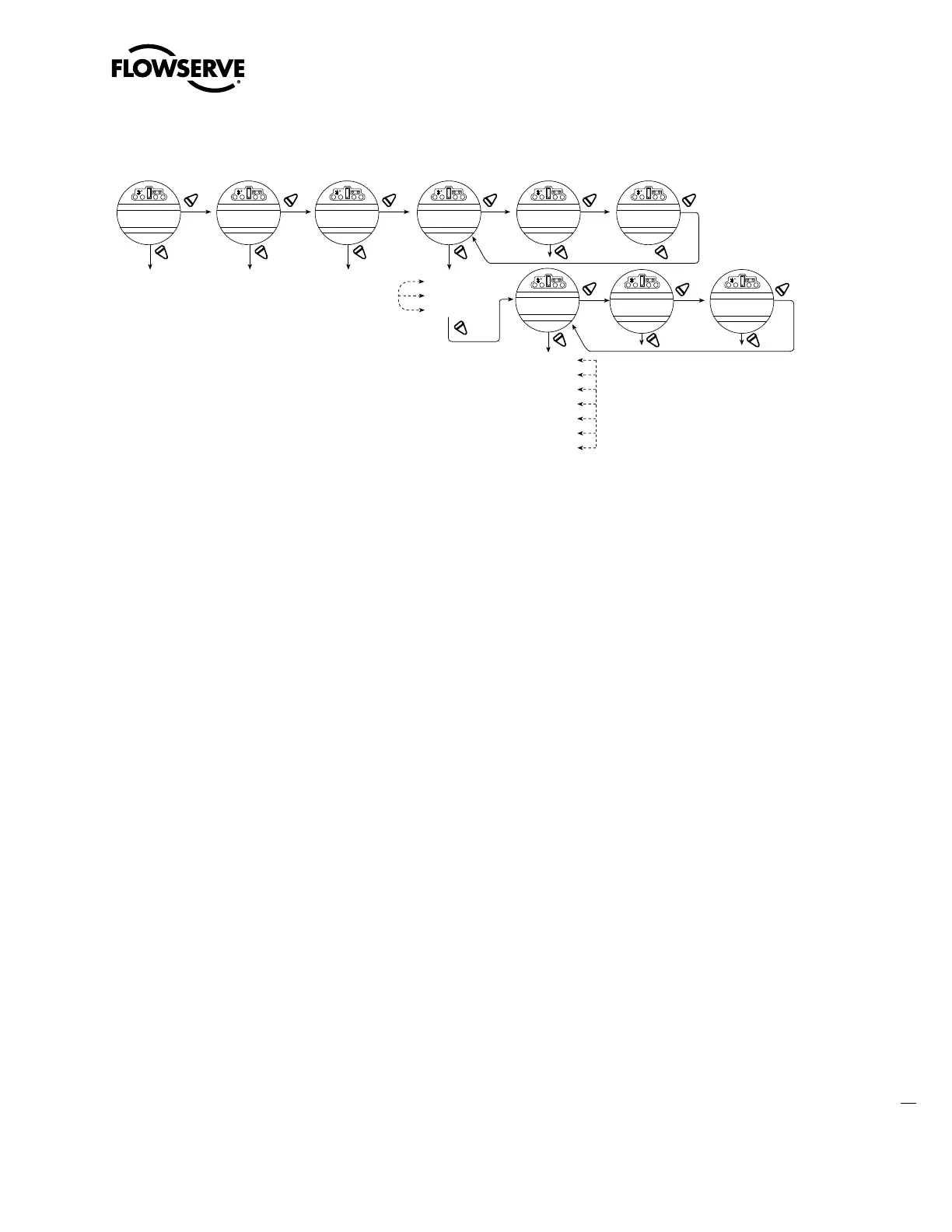

Figure 4.20 – Status and alarm contacts (Shown with optional boards added)
NO
YES
NO
NO
NO
NO
NO
YES
YES
NO
YES YES YES
YES
(CLOSE)
(BLINKER)
(R5-R8)
Same as changing
alarm contact R1
NO
(Option)
CHANGE CONTACTS
R1-R4 & RM?
CHANGE STATUS
CONTACT S1?
CHANGE ALARM
CONTACT R1?
STATUS FUNCTION
CLOSE?
CONTACT
(OPEN)-OK?
STATUS FUNCTION
(LOCAL SELECTED)?
CONTACT
(CLOSE)-OK?
CONTACT S2?
CONTACT S3?
CONTACT S4?
CONTACT R2?
CONTACT R3?
CONTACT R4?
CONTACT R5?
CONTACT R6?
CONTACT R7?
CONTACT R8?
YES
NO
(DISABLED - OK?)
ENABLED - OK?
R1-R4 & RM
YES
NO
Same as changing
status contact S1
CHANGE STATUS &
ALARM CONTACTS?
Note: S1b, S2b are not configurable. They
will change states from S1a, S2a. For
example, if S1a is configured for normally
closed, then S1b will be normally open.
Status functions:
1. CLOSING
2. OPENING
3. STOPPED
4. VALVE MOVING
5. LOCAL SELECTED
6. MOTOR OVERTEMP
7. OVERTORQUE
8. MANUAL OVERRIDE
9. VALVE JAMMED
10. CLOSE TSW
11. OPEN TSW
12. LOCAL STOP/OFF
13. LOST PHASE
14. ESD SIGNAL
15. CLOSE INHIBIT
16. OPEN INHIBIT
17. ANALOG I/P LOST
18. REMOTE SELECTED
19. LIMIGARD ACTIVE
20. HARDWARE FAILURE
21. NETWORK CONTROLLED
22. CLOSE
23. OPEN
24. MID-TRAVEL
25. CSE CONTROL
4.14.3 Contact
This mode allows the user to select the state of the contact when the function is active. Select “NO” to choose whether
the contact is required to be normally closed, normally open, or blinker when the function is active. When “Blinker” has
been selected, the contact will switch automatically between open and close (1 second open/1 second close).
4.14.4 Valve Position
This display will appear only if the function “MID-TRAVEL POSITION” has been selected. Toggle “NO” until the display
indicates the required value of percentage “OPEN” at which the contact should trip. If the contact has been selected as
normally closed, then it will close when the trip point has been reached, with the actuator moving in the open direction.
NOTE: Status contacts (S) and optional alarm (R) contacts are latching type and will remain in their last set position in
the event of a main power supply failure.
4.15 Two-speed Timer (Optional)
The optional two-speed timer extends the operating time of the actuator, in the closing and/or the opening direction,
by pulsing the motor ON and OFF. Pulsing may be applied to full valve travel or only a part of it. The ON and OFF pulse
times are adjustable.
1. Select “CHANGE 2-SPEED TIMERS?”
2. Select “YES” to enter the “CHANGE OPEN TIMER?” routine.
3. If slow opening is required, select “YES;” otherwise select “NO” to move into the “CHANGE CLOSE TIMER?”
routine.
4.15.1 Status
Select “NO” to switch the timer ON or OFF. If OFF, no further menus will be displayed.
4.15.2 Start Position
If the Close or Open timer has been switched ON, pulsing will start when the set point is reached in the selected direc-
tion and the actuator will continue pulsing until the valve reaches the desired “STOP” position.
