• “TURNS RECENT” – Number of drive sleeve revolutions since last diagnostic reset. See Section 4.22, Diagnostic
Reset, for reset diagnostics instructions.
• “CONTACTOR OPS” – Total number of contactor operations
• “OPS RECENT” – Number of contactor operations since last diagnostic reset. See Section 4.22, Diagnostic Reset, for
reset diagnostics instructions.
• “MOTOR RUN TIME” – Total motor operational time
• “TIME RECENT” – Motor operational time since last diagnostic reset. See Section 4.22, Diagnostic Reset, for reset
diagnostics instructions.
• “MOVED MANUAL #” – Total number of times unit has been operated manually
• “MANUAL # RECENT” – Number of times unit has been operated manually since last diagnostic reset. See Section
4.22, Diagnostic Reset, for reset diagnostics instructions.
• “Starts per hour” exceeds count - number of configured st/hr has been exceeded.
• “Starts per hour” exceeds time - number of configured starts in less than an hour has been exceeded.

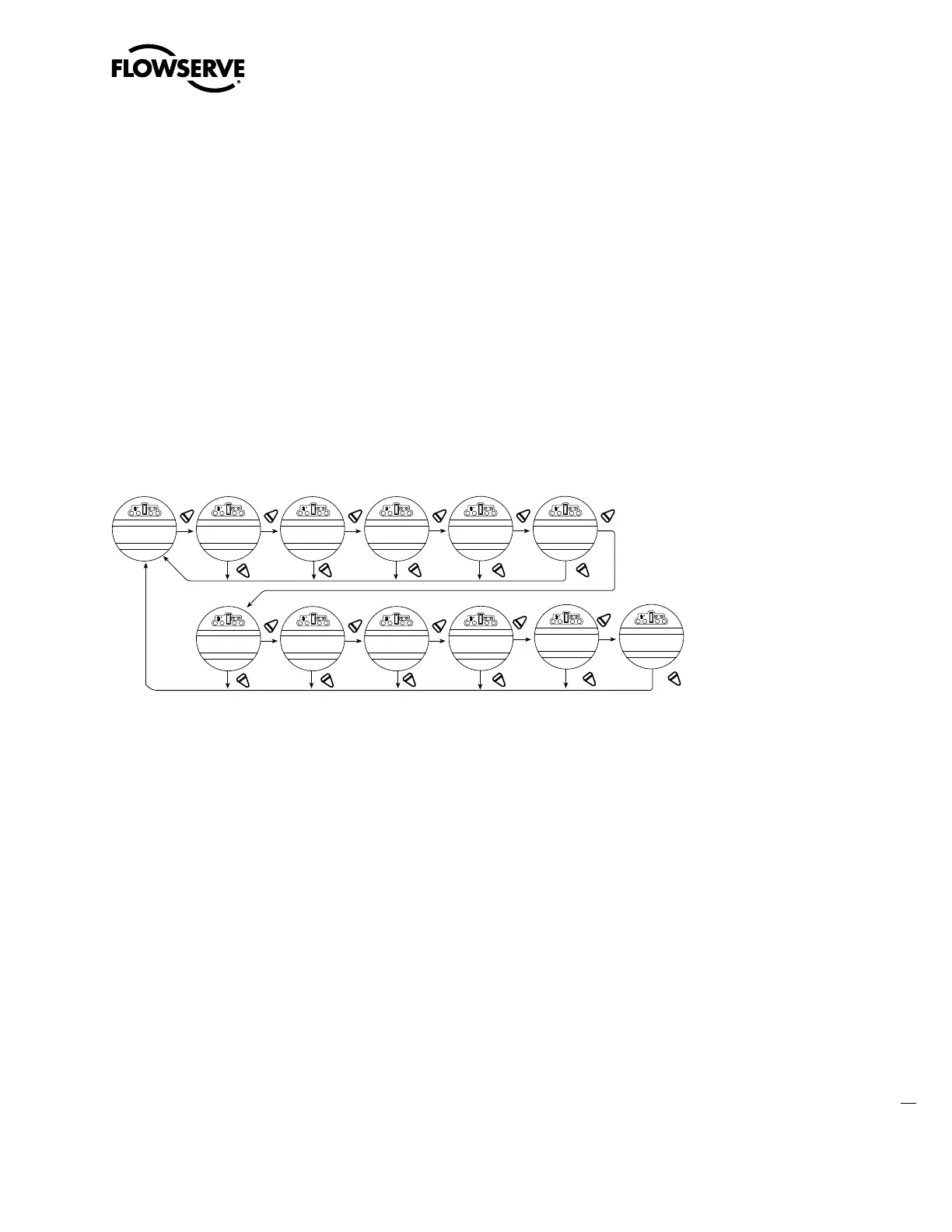

Figure 5.8 – View operation log
TURNS RECENT
4294967296-OK?
YES YES YES
NO
NO
YES YES
NO NO
YES
NO
YES YES YES
NO
NO NO
NO
(See NOTE 1)
NOTE 1: Resetable –
See Section 4.22
,
Diagnostic Reset
(See NOTE 1)
(See NOTE 1) (See NOTE 1)
VIEW
OPERATION LOG?
STROKE TIME
65536 SECS-OK?
TURNS TOTAL
4294967296-OK?
OPS RECENT
4294967296-OK?
CONTACTOR OPS
4294967296-OK?
MOTOR RUN TIME
1193046xHR-OK?
TIME RECENT
4294967296-OK?
MOVED MANUAL#
4294967296-OK?
MANUAL#RECENT
4294967296-OK?
STRTS/HR EX CNT
0.35HR - OK?
STRTS/HR EX CNT
47 - OK?
YES
YES
NO
NO
