Limitorque QX Electronic Actuator FCD LMENIM3306-06 – 07/14
70

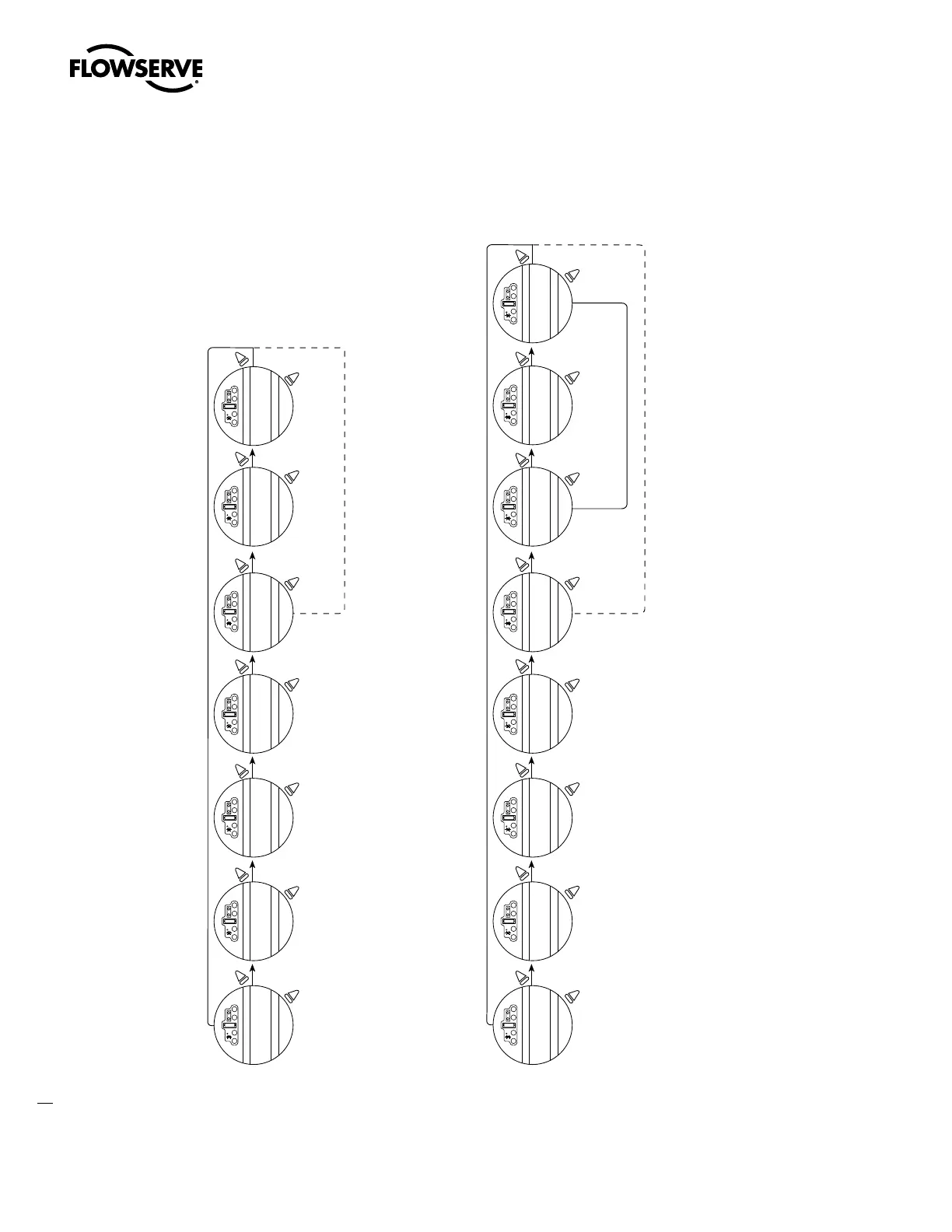

Figure 4.31 – Custom Input Mode
CHANGE
INPUTS
CHANGE STATUS
INPUT (0)?
STATUS
(OFF)?
INPUT (1)
INPUT (2)
(CLOSE INHIBIT)
(OPEN INHIBIT)
(BOTH INHIBIT)
(USER INHIBIT)
(CSE)-SEE NOTE 1
(CLOSE)
(OPEN)
(STOP)
(POSITION)
(ABSENT)
(ON)
see Note 2
see Note 4
see Note 3
see Note 5 see Note 6
STATUS FUNCTION
ESD?
ESD ACTION
(IGNORE)-OK?
ESD MOVE TO
XXX% OPEN
SIGNAL
(PRESENT)-OK?
Note 1: Only input 2 will display “CSE” as an option. The user must run the “remote” indication
signal of the CSE to inout 2, and define input 2, status function as CSE for it to work with Fieldbus/Profibus.
If CSE option is chosen for input 2, they will only be able to select “SIGNAL PRESENT”.
Note 2: The “ESD ACTION” menu will only appear if the user selects the “ESD” status function for the input.
Otherwise the “SIGNAL PRESENT” menu will return the “CHANGE INPUTS” menu.
Note 3: “ESD MOVE TO” menu only appears if Position is chosen as action.
The following menus will appear if the customer has the custom mode input option, and has enabled custom mode 1 (in remote control menu).
Note 4: The “ESD ACTION” menu will only appear if the status function for the input is “MOMENTARY ESD/PSESD”.
Otherwise the “SIGNAL PRESENT” menu will return to the “CHANGE INPUTS” menu.
Note 5: The “ESD MOVE TO” menu only appears if position is chosen as action .
Note 6: “PS MOVE TO” menu only appears if the status function of the input is “MOMENTARY ESD/PSESD”.
The user will only be able to change the ESD ACTION (and ESD MOVE TO target if ESD action is position, and the PS MOVE TO settings when in this special custom mode 1.
Following are the preconfigured settings for each input.
Input 0: off, user input, signal present
Input 1: off, psesd enable, signal present
Input 3: on, momentary esd release, signal present
Input 4, on, momentary esd release, signal present
Input 5: on, momentary esd/psesd. signal present, esd action close, ps move to target 0%
CHANGE
INPUTS
CHANGE STATUS
INPUT (0)?
STATUS
(OFF)?
INPUT (1)
INPUT (2)
INPUT (3)
INPUT (4)
INPUT (5)
(PSESD ENABLE)
(
MOMENTARY
ESD RELEASE)
(
MOMENTARY
ESD/PSESD)
(CLOSE)
(OPEN)
(STOP)
(POSITION)
(ABSENT)
(ON)
STATUS FUNCTION
USER INPUT?
ESD ACTION
(IGNORE)-OK?
PS MOVE TO
O% OPEN
ESD MOVE TO
XXX% OPEN
SIGNAL
(PRESENT)-OK?
YES
NONO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
