Flowserve Limitorque QX User Manual

31
Limitorque QX Electronic Actuator FCD LMENIM3306-06 – 07/14
flowserve.com

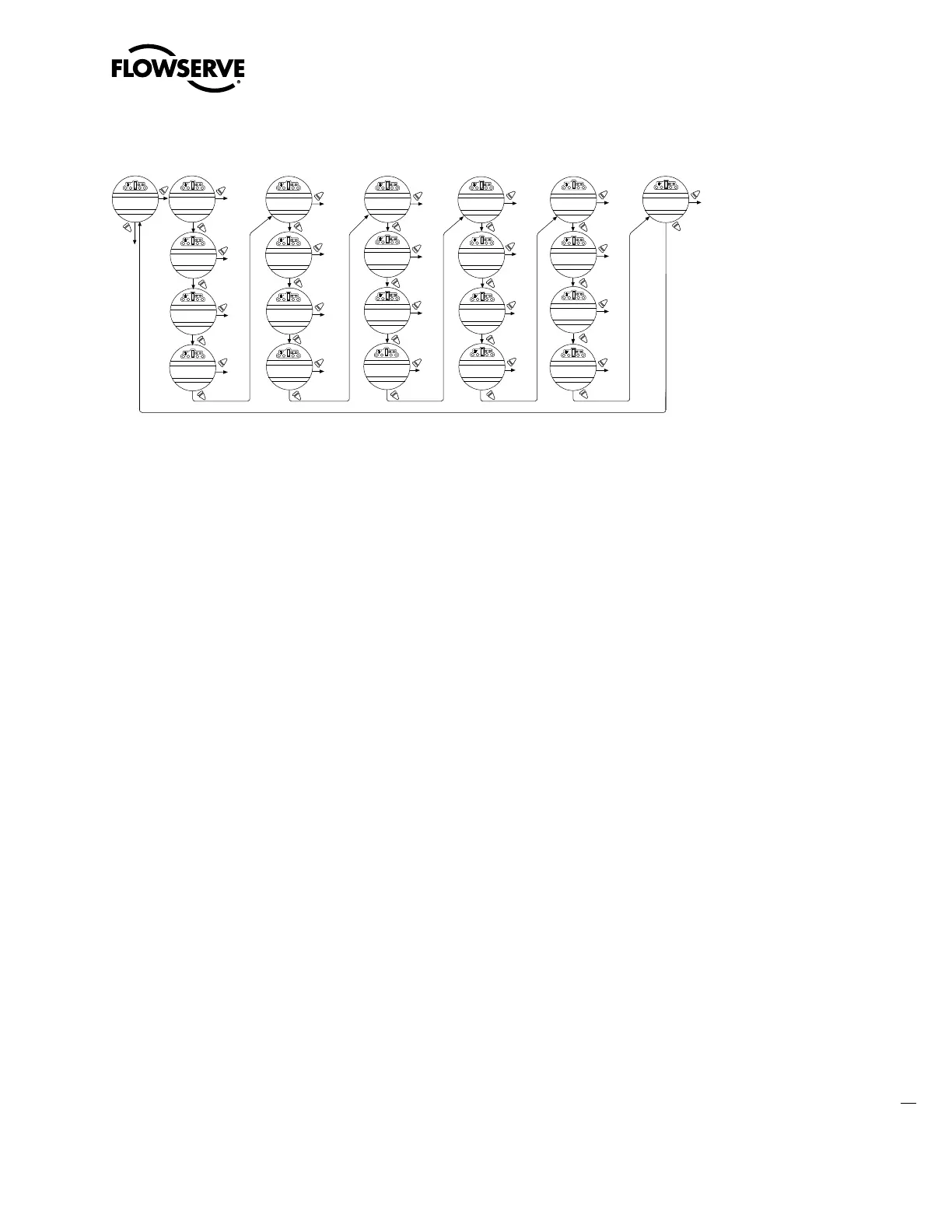

Figure 3.15 – View settings
VIEW
VALVE SETTINGS ?
?
VIEW
SETTINGS?
YES
NO
NO
YES
YES
YES
NO
See
NOTE 1
YES
YES
NO
NO
NO
YES
NOTE 1: These optional displays
will not appear unless the
option has been pur
chased.
NO
YES
NO
YES
NO
YES
NO
YES
NO
YES
YES
YES
NO
NO
YES
NO
YES
NO
YES
NO
NO
NO
NO
1
YES
YES
NO
NO
YES
YES
NO
VIEW
DEVICENET?
See
NOTE
VIEW
REMOTE MODE?
VIEW
DDC?
See
NOTE 1
YES
VIEW
UNIT DATA?
VIEW
PORTS?
VIEW
THERMOSTAT?
VIEW
VALVE DATA?
VIEW
MONITOR RELAY?
VIEW
LOCAL CONTROL?
VIEW ESD
OVERRIDES?
VIEW
INPUTS?
VIEW 2-SPEED
TIMERS?
VIEW STATUS &
ALARM CONTACTS?
See
NOTE 1
VIEW
ANALOG OUT?
1
1
See
NOTE
See
NOTE
1
VIEW
FF?
VIEW
PB/DP?
See
NOTE 1
VIEW
PB/PA?
See
NOTE
1
See
NOTE
VIEW
MODUTRONIC?
VIEW TORQUE
SETTINGS
VIEW OPERATING
TIME?
See
NOTE 1
3.5.4 Setting Position Limits
This section will advise how to configure end-of-travel limits.
The actuator’s position limits may be set by manual operation or electrical operation.
c
WARNING: If the actuator will not move after setting the limits, the limits have been set incorrectly.
Set Close Position Limit (Handwheel Operation)
1. Enter the “SETUP” mode as detailed in Section 2.1.3, Entering the Setup Mode.
2. Enter “POSITION SETUP?” routine.
3. From the “SET CLOSE POSITION LIMIT?” display, select “YES.” “CLOSE VALVE OK?” will be displayed on the LCD.
4. Engage manual override as detailed in Section 3.6.1, Manual Operation.
5. Ensure that the valve is fully closed.
6. Move the valve in the open direction for one handwheel turn to allow for coasting of the motor.
7. When the valve is positioned correctly, select “YES” again. The LCD will display “SAVE CLOSE LIMIT OK?”
8. Select “YES.”
The close position limit is now calibrated. Check the position limit setting as follows:
1. Move the valve in the open direction. The close lamp should extinguish with approximately one turn of the
handwheel.
2. Move the valve back in the close direction and check that the close lamp illuminates just before the full close posi-
tion is reached (approximately ½ to 1 turn).
3. Select “YES” at the “SET OPEN POSITION LIMIT?” prompt.
4. Set Position Precision? The QX permits position to be reported to the User in either default mode of XXX% OPEN,
or single precision mode of XXX.X% OPEN. This may be preferred in Modulating or other positioning applications
such as network move-to, analog fail move-to, communication loss move-to, or ESD move-to.
