41
Limitorque QX Electronic Actuator FCD LMENIM3306-06 – 07/14
flowserve.com
4.4 Valve Setup
Valve setup enables the actuator to be changed to suit the type of valve that it is mounted on.
4.4.1 Close Direction
Default = CW to Close
The majority of valves require clockwise (CW) rotation of the actuator drive sleeve when viewed from above the
actuator.
1. Engage manual override and check whether the valve closes with CW or CCW rotation of the handwheel.
2. Select “NO” until the required direction is displayed, then “YES.”
NOTE: If in doubt as to valve seating, consult the valve manufacturer.
NOTE: For torque seated valves, ensure that the “POSITION” limit is not set at “TORQUE” seat. It is recommended that
the “POSITION” limit be set approximately one handwheel turn (360˚) in the opposite direction from the “TORQUE”
seat.
4.4.2 Close Seating
Default = Position Seating
1. Configure the actuator to close on “TORQUE” limit for seating valve types such as wedge gate and globe.
2. Configure the actuator to close on “POSITION” limit for valve types such as ball, butterfly, plug, sluice gate, parallel
slide, knife gate, and through conduit.
3. Select “NO” until the required seating is displayed.
4. Select “YES” when correct seating is displayed.
4.4.3 Open Seating
Default = Position Seating
The majority of valves, regardless of their construction, seat on position limit in the open direction. Some valves are
“back-seating” and require torque limit in the open direction.
1. Select “NO” until the required seating is displayed.
2. Select “YES” to return to the “VALVE SETUP?” display.

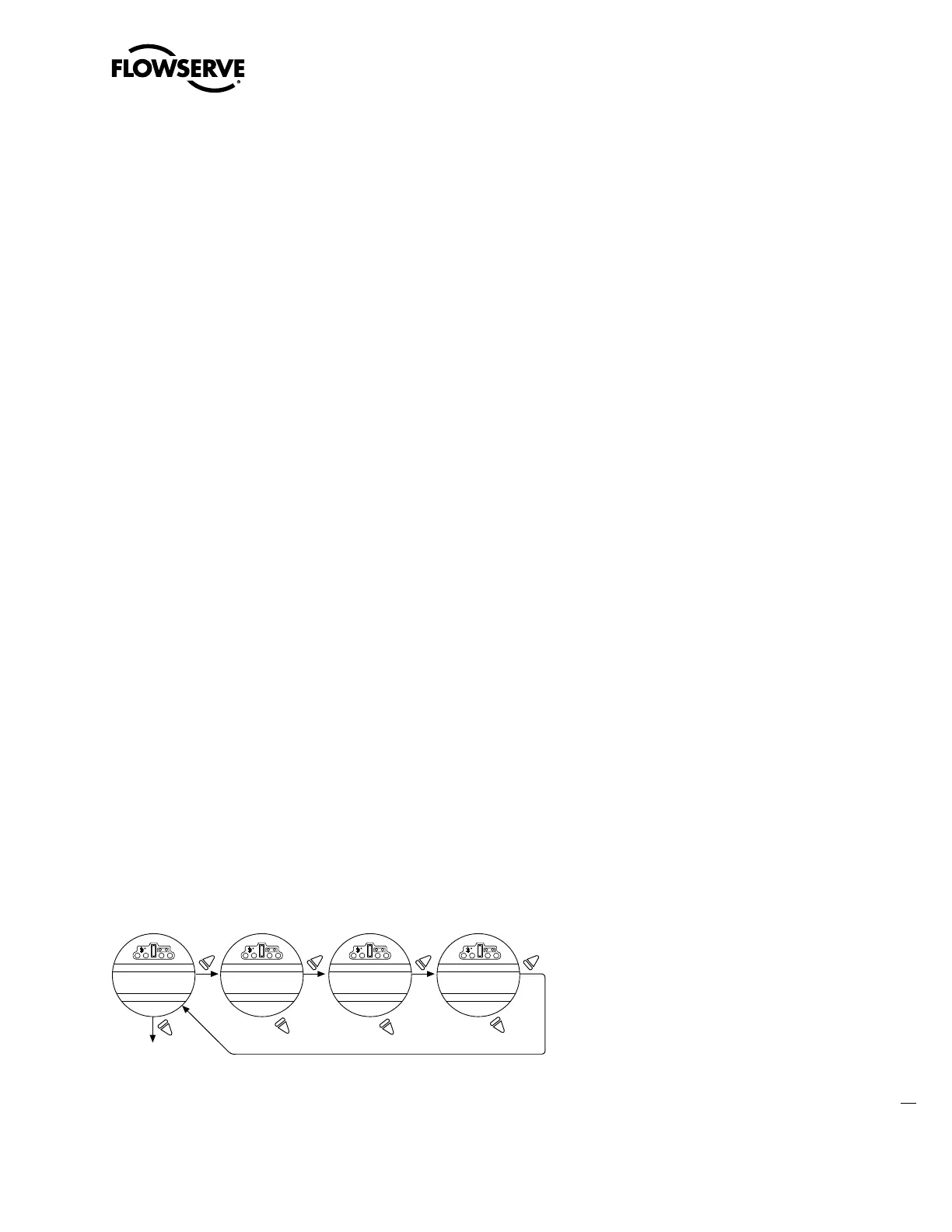

Figure 4.6 – Valve setup
OPEN SEATING
(POSITION)-OK?
VALVE
SETUP?
CLOSE DIRECTION
(CW)-OK?
CLOSE SEATING
(POSITION)-OK?
(CCW) (TORQUE) (TORQUE )
YES
NO
NO
NO
NO
YES YES YES
To Next Page
