Flowserve Limitorque QX User Manual

33
Limitorque QX Electronic Actuator FCD LMENIM3306-06 – 07/14
flowserve.com
1. Move the red knob to “LOCAL” and move the black knob in the intended direction. LCD display will read:
OR
CLOSE VALVE
RETURN TO STO P
OPEN VALVE
RETURN TO STO P
2. Once the “CLOSE” or “OPEN” valve position limit has been reached, return the red knob to “STOP” and complete
setting the “CLOSE” or “OPEN” position limit. See Figure 3.16.
NOTE: Once the travel limits have been set, the actuator may be operated electrically from the remote inputs. Local
maintained operation is also permitted. Check the operation of the actuator to ensure that the torque and limit settings
are satisfactory. Place the selector switch in “LOCAL” and rotate the “OPEN/CLOSE” switch to operate the actuator in the
“MOTOR” mode.
a CAUTION: On some valves, position limits could be set adjacent to each other, so be careful that the Close and Open
limits are set sufficiently apart to permit operation. If the limits are set adjacent of each other, an error message will
be displayed: “KEEP OPEN(CLOSE) LIMIT?” No further movement is permitted until the error is corrected. Should the
User elect to proceed with the setting, an error will be displayed on the screen after re-booting stating “IDENTICAL
LIMITS”. The actuator will not move until the error is corrected.

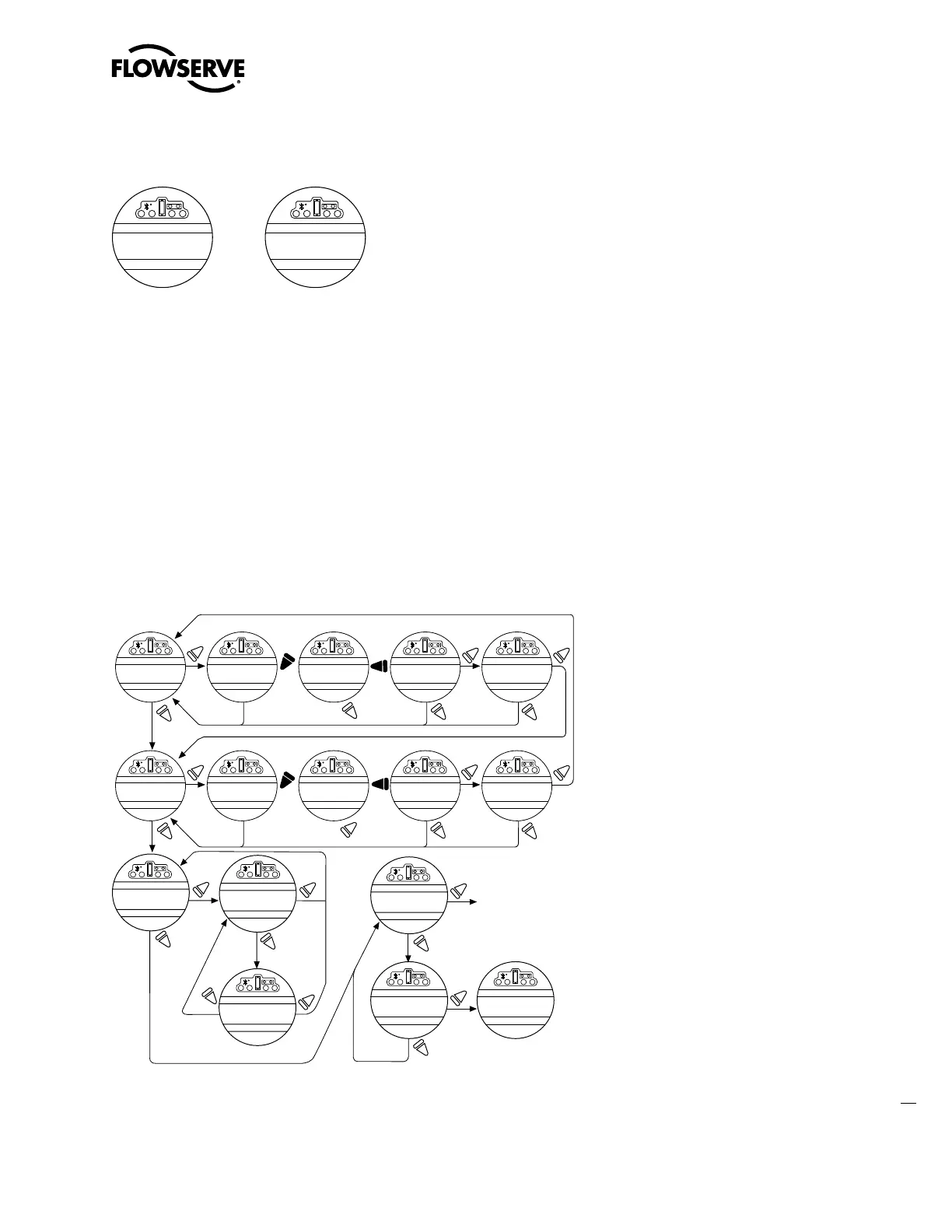

Figure 3.16 – Position setup – electrical operation
“ NO ” operates
close direction
“ YES ” operates
open direction
SET CLOSE
POSITION LIMIT?
CLOSE VALVE
OK?
CLOSE VALVE
RETURN TO STOP
CLOSE VALVE
OK?
SAVE CLOS E
LIMIT OK?
OPEN VALVE
OK?
OPEN VALVE
RETURN TO STOP?
OPEN VALVE
OK?
SAVE OPE N
LIMIT OK?
SET OPEN
POSITION LIMIT?
STO P
LOCAL
Switch to
NO
NO
NO
NO
NO
NO
NO
STO P
LOCAL
Switch to
YES
YES
YES
YES
YES YES
YES
Enter “SETUP ” mode
SETUP?
EXIT
SETUP?
100% OPEN
STATUS OK?
YES
YES
NO
NO
SET POSITION
PRECISION?
POSITION
XXX% OPEN?
YES
NO
NO
POSITION
XXX.X% OPEN?
NO
YES
YES
Moving the red knob from “STOP” to “LOCAL” or “REMOTE” automatically saves to non-volatile memory all the
changes that have been made.
