Flowserve Limitorque QX User Manual

Limitorque QX Electronic Actuator FCD LMENIM3306-06 – 07/14
62

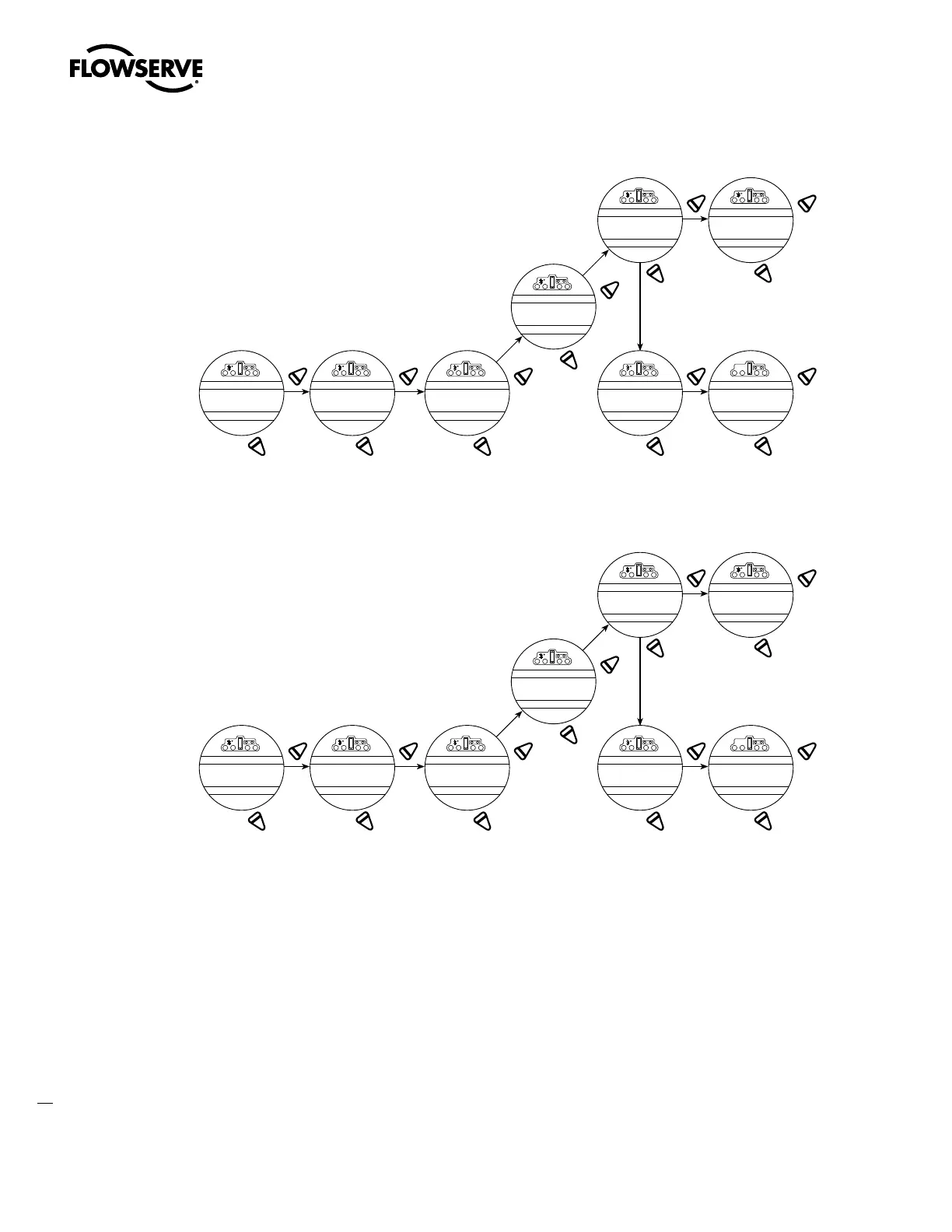

Figure 4.25 – Change Analog Out Voltage – ATT
Figure 4.26 – Change Analog Out Current – ATT
4.16.1 APT Polarity Option
The APT option provides a 4-20 mA feedback signal proportional to valve position. APT is connected at terminals 17
and 18 for 4-20 mA output. Consult actuator wiring diagram for details.
NOTE: If the second analog out option is turned ON but this option was not purchased, the display will show a hardware
fault. An optional I/O board is required for this option. To purchase, please contact Limitorque service coordinator at
(434) 528-4400.
During position limit calibration (see Section 3.5.4, Setting Position Limits) the APT is automatically calibrated to
default settings: Default = 20 mA OPEN, 4 mA CLOSE.
To Customize the Settings:
1. Select “CHANGE APT?” from the “SETUP” routine. Select “YES.”
2. Select “NO” to select the status if OFF. If ON, select “YES” to enter the “Status Function APT?” display. Select “NO”
to select ATT display.
YES YES
NO0-10VDC-OK?
0-5VDC-OK?
1-5VDC-OK?
MIN-OK?
NO
ANALOG OUT
VOLTAGE-OK?
YES
NO
OFFSET
2-10VDC-OK?
POLARITY 10VDC
MAX-OK?
YES
NO
CALIBRATE
LOW SIGNAL?
YES
NO
YES
NO
CALIBRATE
HIGH SIGNAL?
SAVE
SETTINGS?
YES
NO
10VDC
OK?
YES
NO
2VDC
OK?
If 5VDC option
selected: “5VDC”
will be displayed.
If 5VDC option selected:
“POLARITY 5VDC”
will be displayed.
YES YES
NO0-20MA-OK?
NO
ANALOG OUT
CURRENT-OK?
YES
NO
OFFSET
4-20MA-OK?
POLARITY 20MA
MAX-OK?
YES
NO
CALIBRATE
LOW SIGNAL?
YES
NO
YES
NO
CALIBRATE
HIGH SIGNAL?
SAVE
SETTINGS?
YES
NO
20MA
OK?
YES
NO
4MA
OK?
MIN-OK?
