3. Select “NO” to select 4 ma/0 VDC2. Select “YES” to enter the “POLARITY” display.
4. Select “NO” to choose between:
20 mA = OPEN
or
20 mA = CLOSE
5. Select “NO” to recalibrate new value (low end 3.4-4.5 mA; high end 19.5-21 mA) as shown on meter. New value will
not be shown on display.
4.16.2 ATT Polarity Option
The ATT option provides a 4-20 mA signal proportional to actuator output torque and is for reference only. The signal
range is from approximately 40% of rated torque to approximately 100% rated torque. This option is connected at
terminals 17 and 18 for 4-20 mA output. Consult the actuator wiring diagram for details.
NOTE: If the second analog out option is turned ON but this option was not purchased, the display will show a hardware
fault. An optional I/O board is required for this option. To purchase, please contact Limitorque service coordinator at
(434) 528-4400.
To Customize the Settings:
1. Select “CHANGE ATT?” from the “SETUP” routine, then “YES” to select ATT status as “ON” or “OFF.”
2. Select “NO” to select the status if OFF. If ON, select “YES” to enter the “Status Function?” display. Select “NO” to
select ATT display.
3. Select “NO” to select 4 ma/0 VDC2. Select “YES” to enter the “POLARITY” display.
4. Select “NO” to choose between:
20 mA = OPEN
or
20 mA = CLOSE
5. Select “NO” to recalibrate new value (low end 3.4-4.5 mA; high end 19.5-21 mA) as shown on meter. New value will
not be shown on display.
4.17 Remote Mode
Remote mode permits a User to select from multiple remote control permissions, or isolate remote control to a single
control selection:
• Multi Control mode (default): permits up to three discrete remote inputs: There are three modes of remote control for
the QX actuator allowed when the remote mode is configured for multi-control: digital control, analog control, and
network control. Digital and network control operation is based on the last command received. Analog control opera-
tion in initiated by either toggling user input 2 (configured for CSE input) or breaking and reapplying the analog signal.
• Digital Control Only: the unit will operate only upon the last digital input command received.
• Network Control Only: the unit will operate only upon the last network command received.
• Analog Control only: the unit will operate only upon the last analog input command received.

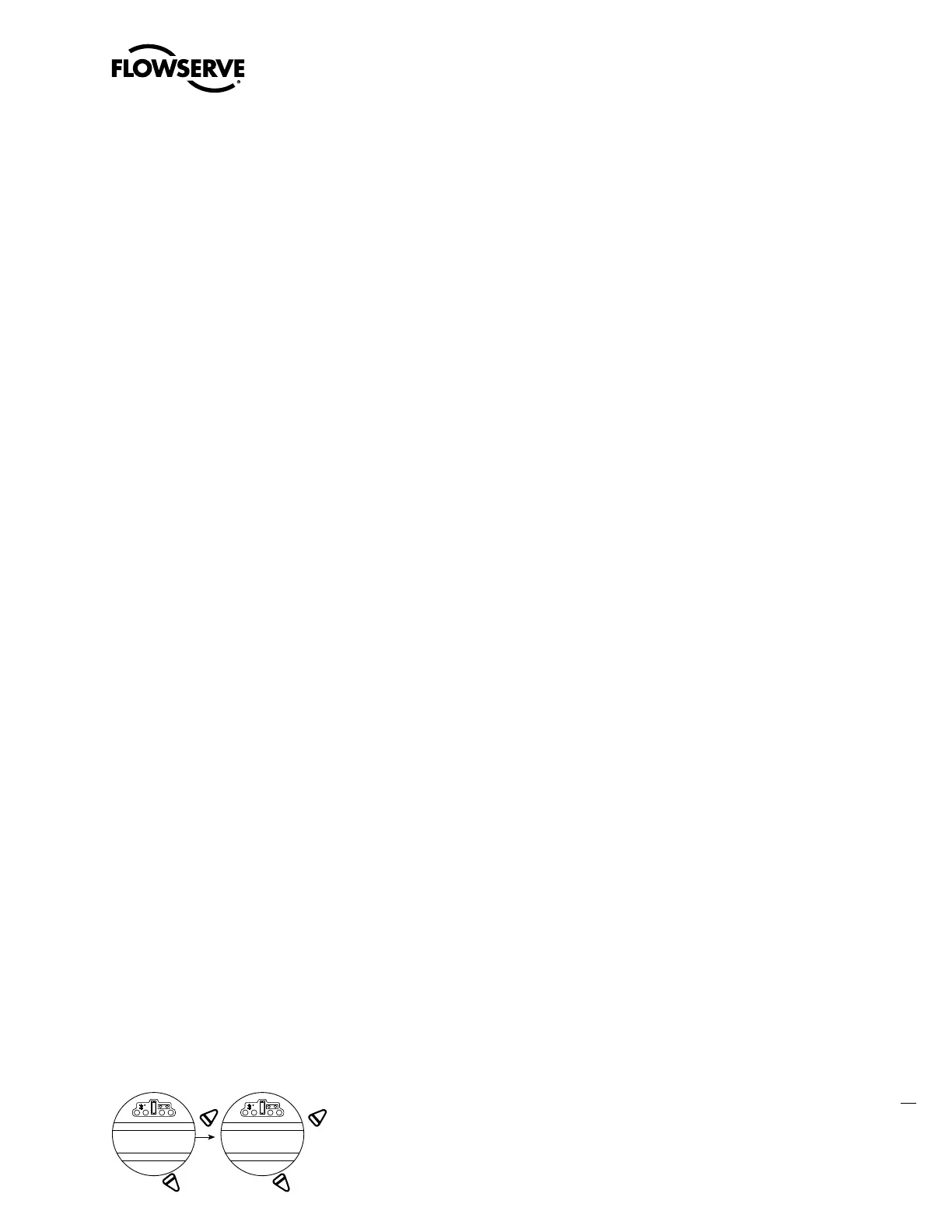

Figure 4.27 – Remote Mode
NO
YES YES
NO
CHANGE
REMOTE MODE
MULTI-CONTROL
MODE - OK?
