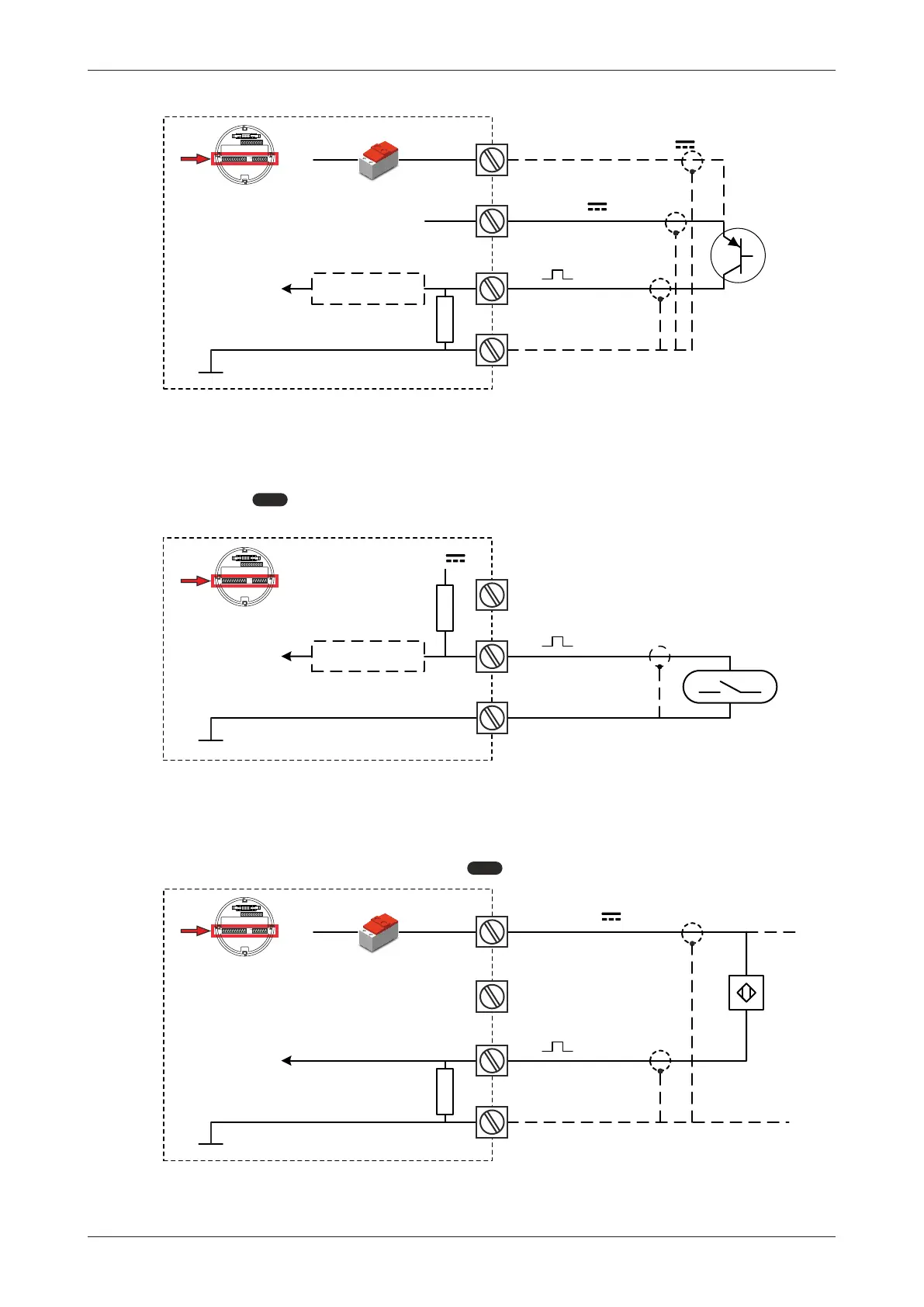

E018-P
Page 54 FW_E018-P_M_v0302-02_EN
COMMUNICATION
Function Reading display information, reading/writing all configuration settings
Type CR HART Communication protocol, Revision 7.0
Type CX No communication, remote configuration possible with accessory cable (ACE02)
Addressing Maximum 32 addresses
Loop resistance Between 250 and 1100Ω
A.4 OPERATIONAL
OPERATOR FUNCTIONS
Displayed information ● Linearized flowrate and / or total.
● Linearized total and accumulated total.
● Indicating speedometer for flowrate
● Total can be reset to zero by pressing the CLEAR-key twice
TOTAL
Digits 7 digits
Unit L, m3, US gal, igal, cf, Oil bbl, kg, ton, US ton, lb or none
Decimals 0 – 1 – 2 or 3
Note Total can be reset to zero
ACCUMULATED TOTAL
Digits 11 digits
Unit and decimals According to selection for total
Note Accumulated total cannot be reset to zero
FLOW RATE
Digits 7 digits
Units mL, L, m3, g, kg, ton, US ton, US gal, igal, Oil bbl, lb, cf, rev, none, scf, nm3, nL
Bar graph Speedometer consisting of 20 blocks, each block is 5% of total span
Decimals 0 – 1 - 2 or 3
Time units /sec - /min - /hr - /day
A.5 STANDARDS AND APPROVALS
APPLICABLE DIRECTIVES, LEGISLATION AND STANDARDS
EU Directives See Section E: Legal information[»63]
EMC FCC 47 CFR part 15
CSA CSA 22.2 No. 25; CSA 22.2 No. 30; CAN/CSA 22.2 No. 94.2; CSA C22.2 No. 61010-1 + A1
FM FM3600; FM3615; FM3616; FM3810
IP & TYPE EN 60529; NEMA 250
