E119-P
Page 6 FW_E119-P_M_v0301-02_EN
3 INTRODUCTION
3.1 SYSTEM DESCRIPTION
The flowrate indicator / totalizer model E119-P (also referred to as a unit) is an explosion proof
microprocessor-driven instrument designed to linearize the flowmeter’s flow curve and to show the
current flowrate, the totalized flow and the accumulated totalized flow, current and previous day
total, and several historical day totals. Additionally, the unit is capable of printing totalizer tickets and
delivery tickets.

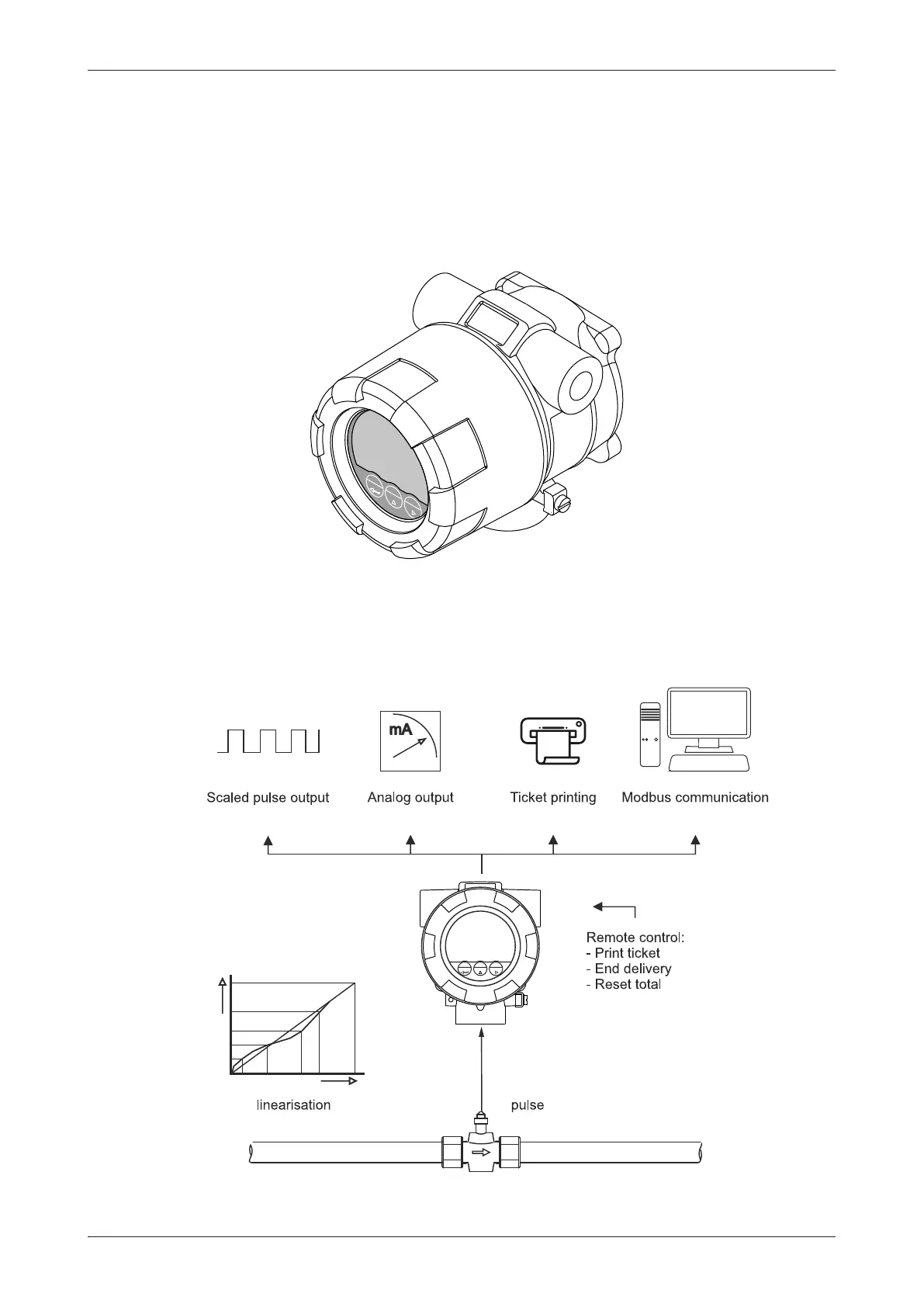

Fig.1: The E119-P
This manual describes the daily use, configuration and installation of the standard unit (with pulse
input from a flowmeter) and its available options. The following figure shows the E119-P used in a
typical application.
Fig.2: Typical application
