E119-P
Page 56
FW_E119-P_M_v0301-02_EN
When the output is disabled, the current is by default limited to 2mA. Max. driving capacity
1000Ohm @ 27VDC. If only powered by the loop, the backlight will not be activated.
The total loop resistance may not exceed 1000 Ohm and may not be less than 330 Ohm (at 30mA).
This means that the total resistance of other loop-devices may not exceed 670Ohm.
A1
A2
+
10
-27V DC
mA
mA
MEM

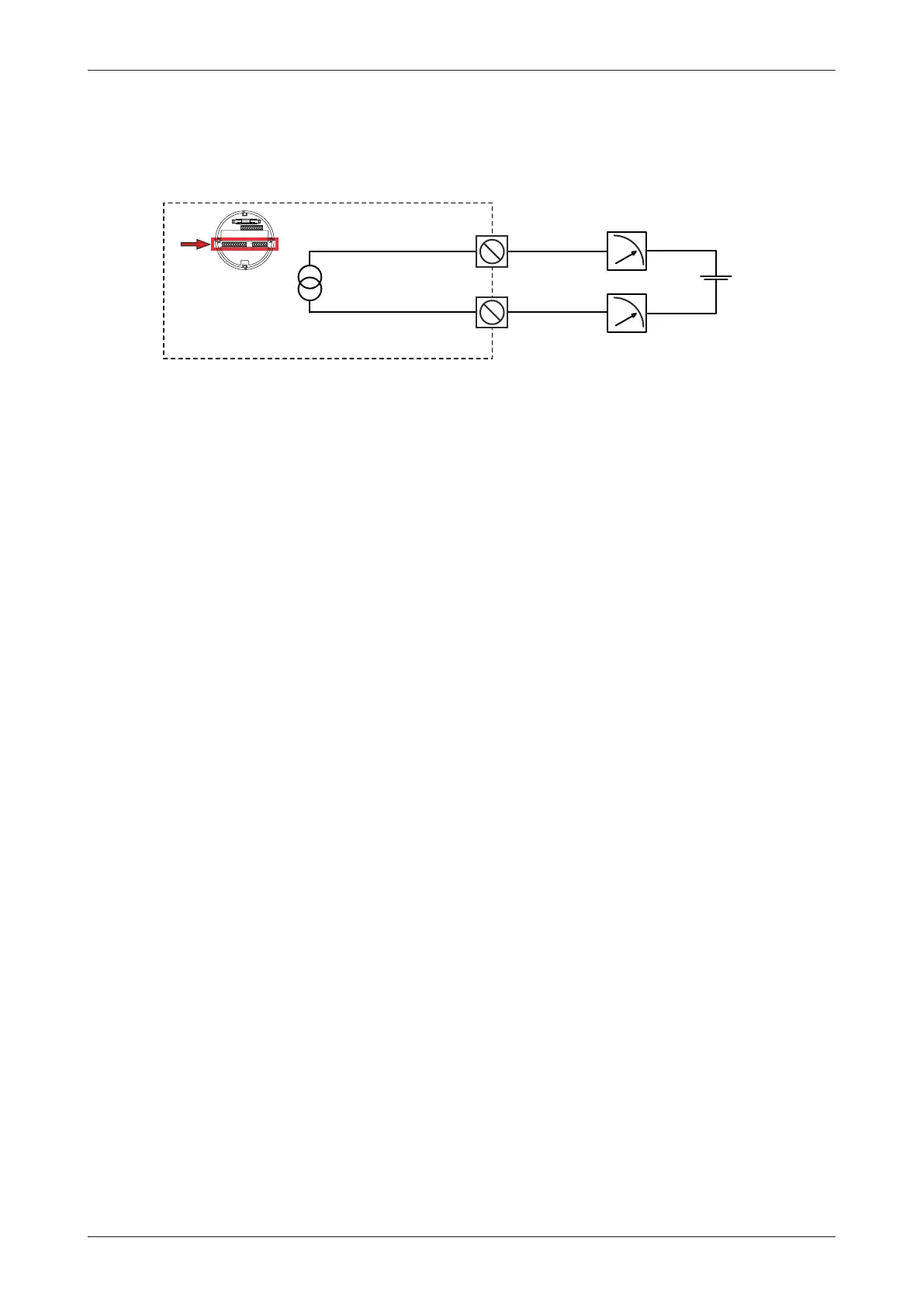

Fig.40:
Terminals A1-A2: Analog output
55
57
Table of Contents
Table of Contents
2
About this Manual
4
How to Use this Manual
4
Use of Pictograms
4
Warranty and Technical Support
4
Model Reference
4
Safety
5
Personal Safety
5
End-User Responsibilities
5
Potential Equipment Damage
5
Disposal of Electronic Waste
5
Introduction
6
System Description
6
Product Features
7
Ticket Printing
8
Totalizer Ticket
8
Delivery Mode
9
Installation Example
10
Operation
11
Introduction
11
Operating Modes
11
Control Panel
11
Display
11
Optical Keys
12
Backlight
13
Operator Functions
13
Functions of the Keys in Operator Mode
13
Selecting Displayed Information
14
Clearing Total or Ending a Delivery
14
Printing Tickets
15
Displayed Information
15
Flowrate
15
Total and Accumulated Total
16
Current Day Total and Previous Day Total
16
Operator Alarms
17
Low Battery
17
Internal Error
17
Configuration
18
Introduction
18
Operating the Main Electronics Module (MEM)
18
Configuring Using PC Configuration Tool
19
Mechanical Keys
19
Optical Keys Switch
19
Saving Battery Lifetime (Type PB)
20
Configuring Using SETUP Mode
20
Entering SETUP Mode
20
Navigating the SETUP Menu
20
Changing Configuration Settings
21
Returning to Operator Mode
22
SETUP Menu Overview
23
SETUP Menu Explanations
25
Menu 1: Total
25
Menu 2: Flowrate
26
Menu 3: Display
27
Menu 4: Flowmeter
28
Menu 5: Linearization
30
Menu 6: Remote Control Inputs
31
Menu 7: Analog Output
31
Menu 8: Pulse Output
33
Menu 9: Communication
34
5.5.10 Menu 10 Ticket
35
5.5.11 Menu 11: Others
36
Installation
38
Installation / Environmental Conditions
38
Handling the E-Series Enclosure
39
Main Parts
39
Identification
40
Opening, Assembling and Closing the Unit
42
Test Unit
43
Mechanical Installation
44
Installation Precautions
44
Mechanical Dimensions
45
Mounting the Unit
45
Electrical Installation
47
Electrical Precautions
47
Grounding of the Enclosure
48
Electrical Ratings
48
Voltage Selection Sensor Supply
49
Terminal Connectors - MEM
50
Terminal Connectors - RSM
51
Terminals P1-P2 or P5-P6: Power Supply - Type PD/PX
51
Terminals P3: Sensor Supply - Type PD
51
Terminals R1-R2 and R10-R11: Digital Outputs D1 and D5
51
6.4.10 Terminals S1-S3: Flowmeter Input
52
6.4.11 Terminals E1-E3: Remote Control Inputs - Type Ir
55
6.4.12 Terminals A1-A2: Isolated Analog Output - Type Ah
55
Maintenance
57
Check for Wear or Damage
57
Clean Unit
57
Replace Battery
57
Battery Replacement Supply Module BSM / RSM
57
Replace Clock Battery (Type ZL)
58
Replace Silica Gel Sachet
58
Appendix A - Technical Specification
59
General
59
Input
60
Output
60
Operational
60
Standards and Approvals
61
Appendix B - Troubleshooting
62
Appendix C - Modbus Communication
64
Introduction
64
Runtime Variables of the Unit
65
Configuration Variables of the Unit
66
Appendix D - Remote Configuration Tool
71
Introduction
71
Cable Connection
71
Download and Install
71
Appendix E - Legal Information
72
EU Declaration of Conformity
72
