Fluidwell E018 User Manual

E119-P
Page 14 FW_E119-P_M_v0301-02_EN
CLEAR-key
This key is used to clear the value of total or end the current delivery.
The CLEAR-key also provides access to the LOG-mode, to review historical day totals.
4.3.2 SELECTING DISPLAYED INFORMATION
By pressing the SELECT-key, all relevant information can be reviewed on the display. When no key
is pressed for 20 seconds, the display will jump back to the main screen. The following image of the
display shows the main screen with Total shown on the top line and Flowrate on the bottom line.

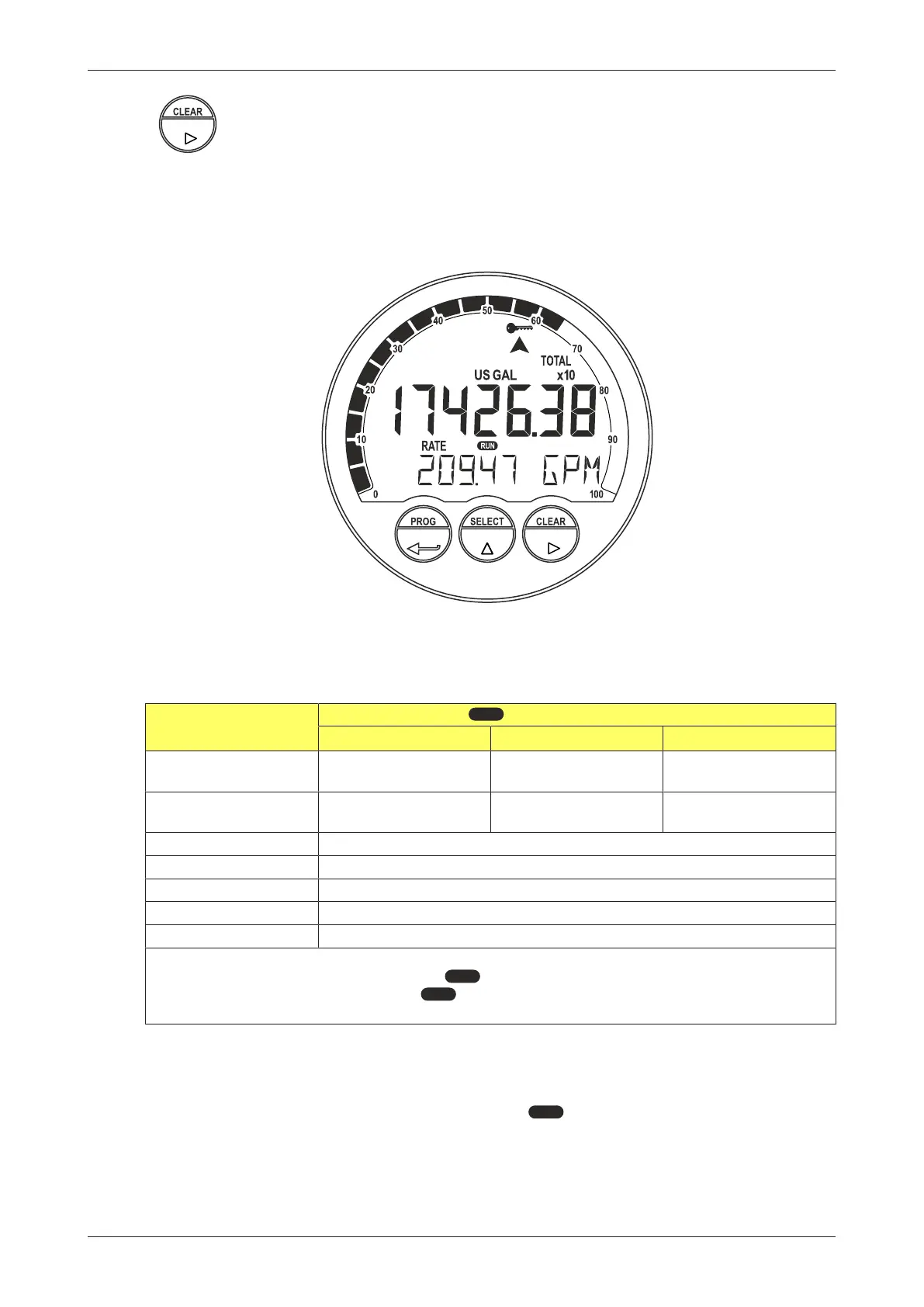

Fig.8: Example of display information
The following table shows the available display information screens, determined by the configuration
settings for Display. If an operator alarm occurs, this will also be shown on the same screen – see
Section 4.5: Operator alarms[»17].
Display information
SETUP
3.1: DISPLAY > FUNCTION[»27]
= TOTAL = FLOWRATE = ACC. TOTAL
MAIN SCREEN Total
1)
Flowrate
Flowrate Total
1)
Acc. Total
SCREEN 1 Total
1)
Acc. Total
Total
1)
Acc. Total
Total
1)
Flowrate
SCREEN 2
2)
Current day Total
SCREEN 3
2)
Previous day Total
SCREEN 4
3)
Print totalizer ticket
SCREEN 5
3)
Reprint last ticket
INTERNAL ERROR
4)
Internal alarm code
1)
When total is shown on the display, it can be cleared (reset to ‘0’) by pressing the CLEAR-key twice.
2)
Only available when day totals are enabled in
SETUP
3.2: DISPLAY > DAY TOTALS[»27].
3)
Only available when printing is enabled in
SETUP
9.1: COMMUNICATION > MODE[»34].
4)

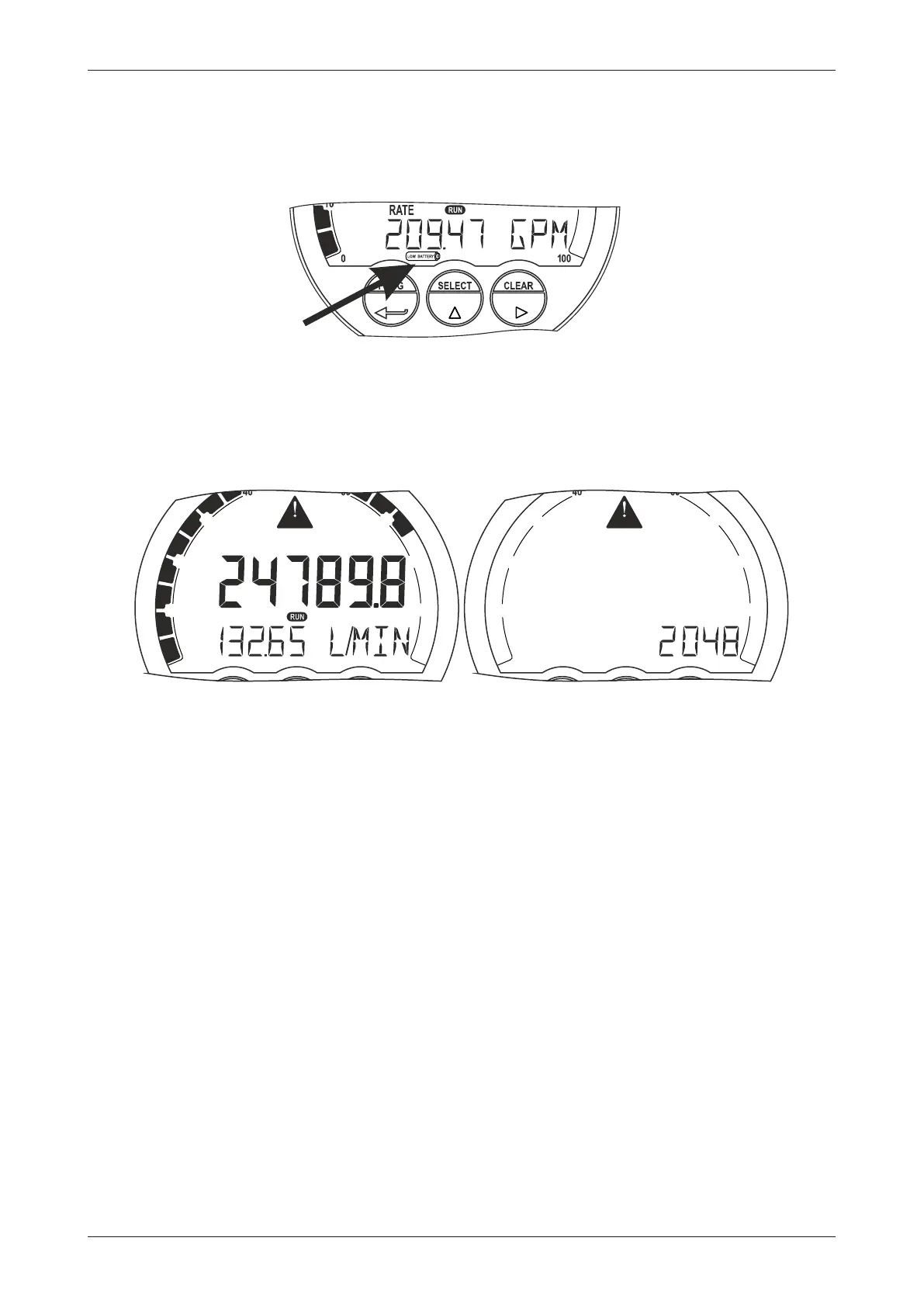

If an internal error occurs, an additional screen becomes available to show the internal alarm code.
4.3.3 CLEARING TOTAL OR ENDING A DELIVERY
The measured flow is added to the various counters (like Total) of the unit. Only Total is resettable,
Accumulated total and day totals are non-resettable.
When the unit is configured to work with deliveries (see
SETUP
10.8: TICKET > DELIVERY MODE[»36]), Total
is used as counter for the current delivery and cannot be reset individually. When the delivery is
ended, Total is automatically cleared, and a new delivery starts immediately.
When delivery mode is disabled, the operator can clear Total by executing following steps:
1. Make sure Total is shown on the display.
