Fluidwell E018

E018-P
FW_E018-P_M_v0302-02_EN Page 21
10 OTHERS DEFAULT
10.1 MODEL
- -
10.2 SOFTWARE VERSION
xx.xx.xx -
10.3 SERIAL NUMBER
xxxxxxx -
10.4 PASSWORD
0000 - 9999 (0000 = off) 0000
10.5 KEY LOCK
enable, disable enable
10.6 TAG NUMBER
0000000 - 9999999 0000000
5.5 SETUP MENU EXPLANATIONS
5.5.1 MENU 1: TOTAL
When a different unit is selected, the actual total values are NOT recalculated.
The settings for total and flowrate are separate. This means different units of measurement can be
used for each, for example, cubic meters for total and liters for flowrate.
See Menu 5: Flowmeter [»24] on how to calculate and configure the K-factors for Total and
Flowrate.
1 TOTAL
1.1 UNIT
Determines the measurement unit for total, accumulated total, and the
scaled pulse output. The following units can be selected:
L, m3, US gal, I gal, cf, oil bbl, kg, ton, US ton, lb, (none)
1.2 DECIMALS
Determines for Total and Accumulated Total the number of digits after
the decimal point.
1.3 K-FACTOR
This value is used to convert the flowmeter pulse signals into a total unit.
The K-Factor is based on the number of pulses generated by the
flowmeter per selected measurement unit, as defined in 1.1: TOTAL > UNIT.
The more accurate the K‑Factor, the more accurate the system.

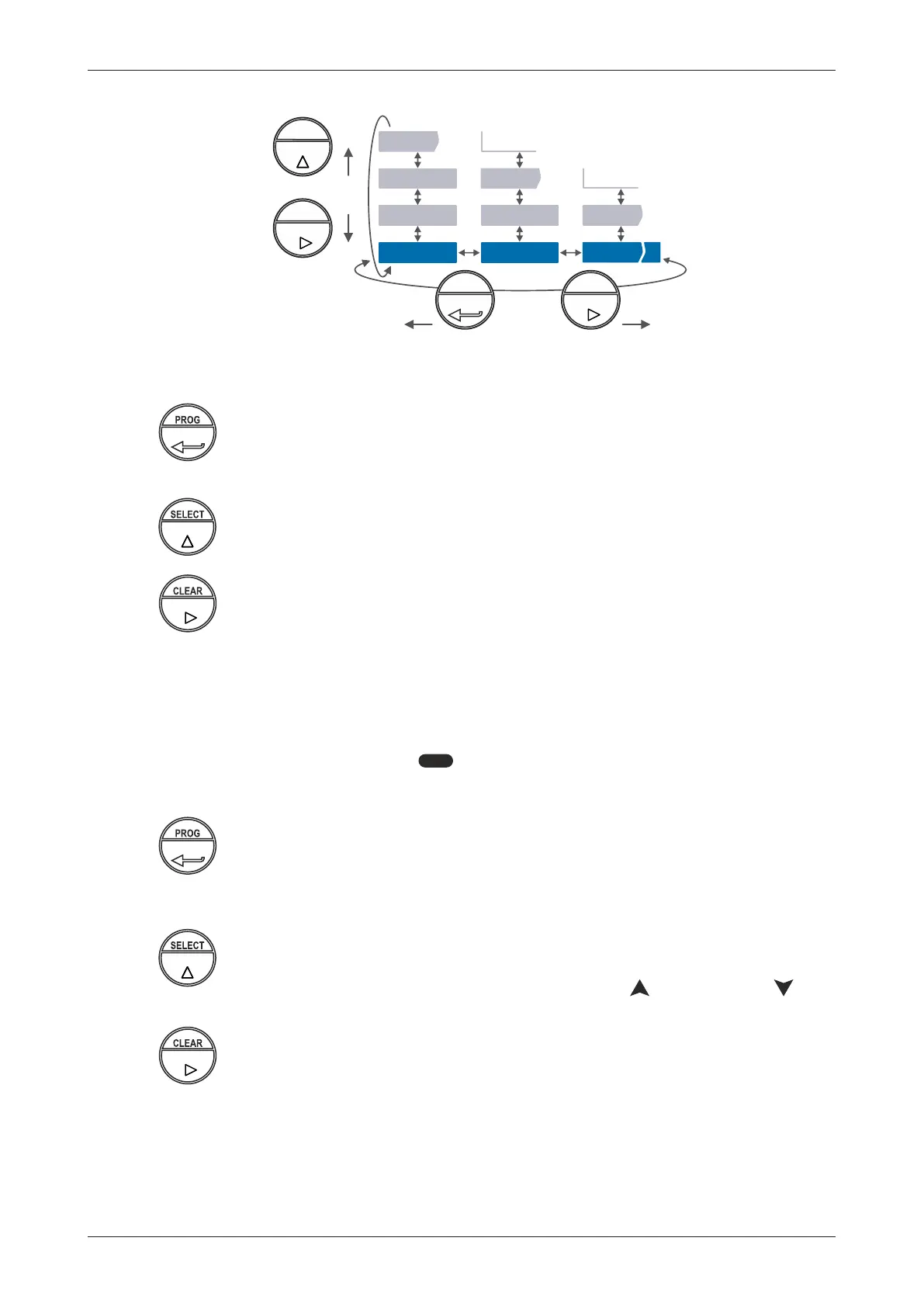

After pressing PROG, the decimal point will start to flash. The decimal
position can then be changed by pressing the SELECT-key, then press
the CLEAR key to set the digits.
1.4 CLEAR PASSWORD
A password can be set up to prevent the operator from accidentally
clearing the Total. This password can have up to 3 digits, for example
123.
To disable password protection, enter three zeros (000).
5.5.2 MENU 2: FLOWRATE
The settings for total and flowrate are separate. This means different units of measurement can be
used for each, for example, cubic meters for total and liters for flowrate.
See Menu 5: Flowmeter [»24] on how to calculate and configure the K-factors for Total and
Flowrate.
The display update time for flowrate is one second or more.
2 FLOWRATE
2.1 UNIT
Determines the measurement unit for flowrate. The following units can
be selected:
mL; L; m3; US gal; I gal; cf; oilbbl; nL; nm3; scf; g; kg; ton; lb; US ton;
rev; ---- (none)
Alteration of the measurement unit will NOT affect operator and SETUP-
level values. The K-factor has to be adapted as well; the calculation is
not done automatically!
