Operation
Machine Setup
4
4-5

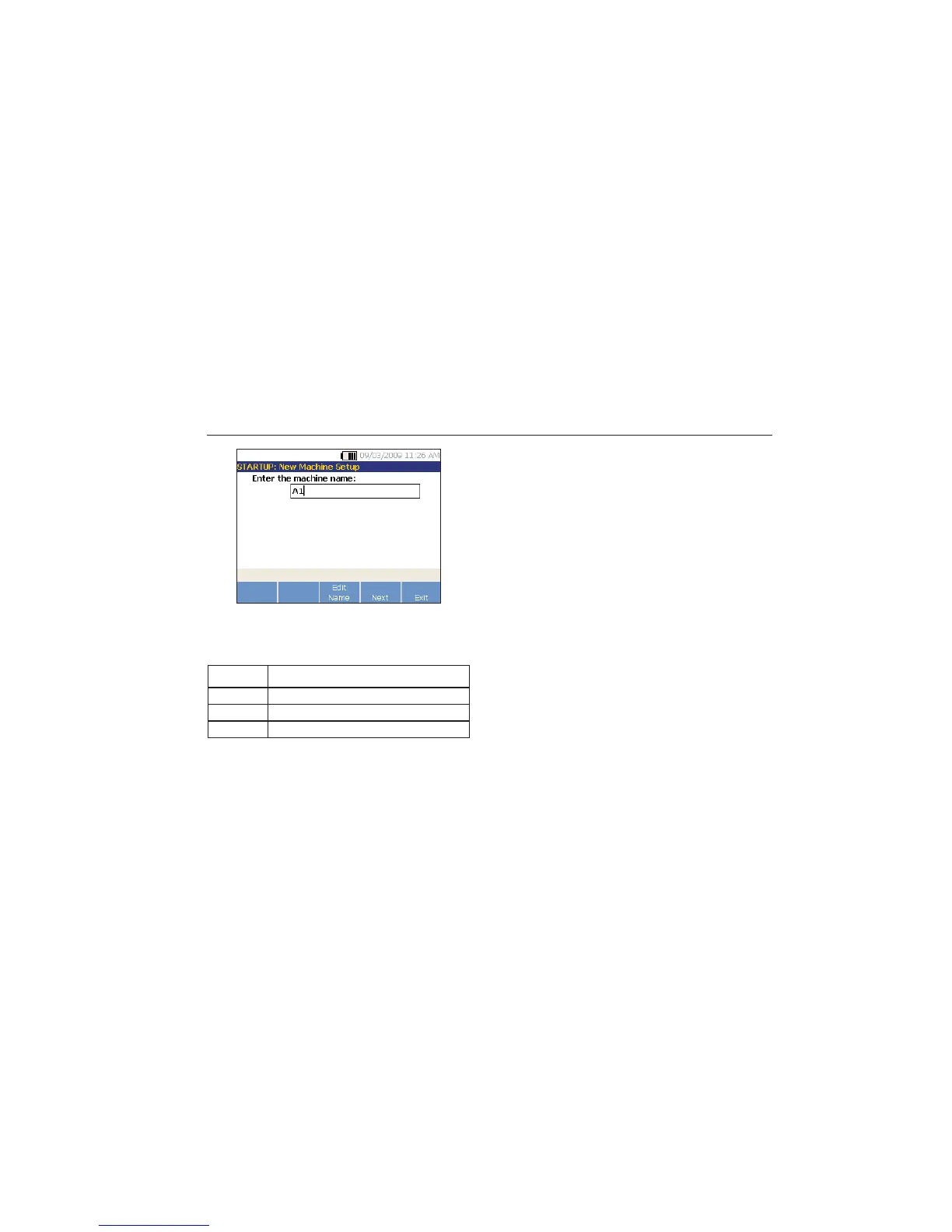

Table 4-1 describes the softkey functions for the New
Machine Setup screen.
Table 4-1. New Machine Setup Functions
Softkey Function
Edit Name Edit the Machine Setup name
Next Go to the first Machine Setup screen
Exit Exit to the Startup screen.
Machine Setup
For the best machine analysis and diagnosis, the Tester
has to understand the layout and components of the
machine. The Machine Setup wizard guides you through
several questions about the profile of the machine. These
machine setup values must be correct for valid diagnostic
results.
Note
All questions in the Machine Setup Wizard are
required to generate a diagnosis unless
otherwise labeled “optional.” Including optional
information will improve the results of the final
machine diagnosis.
Once you create a Machine Name, the Tester starts the
Machine Setup wizard and you enter the parameters of
the machine under test. The Machine Setup wizard
displays the options sequentially based on the input you
give and organizes the options into these categories:
• Motor Input (Driver)
• Coupling and Transmission
• Driven Components
