How to Diagnose
Once the Machine Setup is complete and measurement
information is collected, the diagnostic engine analyzes
the data with a set of powerful algorithms. It also identifies
abnormal conditions and pending mechanical failures for
the machine.
Fault Types
The Tester can identify four of the most common
mechanical problems:
• Bearing Failures
• Misalignment
• Unbalance
• Looseness
The diagnostic engine can identify other mechanical
faults (nonstandard faults) in addition to these four basic
faults. However, it cannot provide any details on the type
of the fault, only its severity.
To diagnose a machine after you take a measurement:

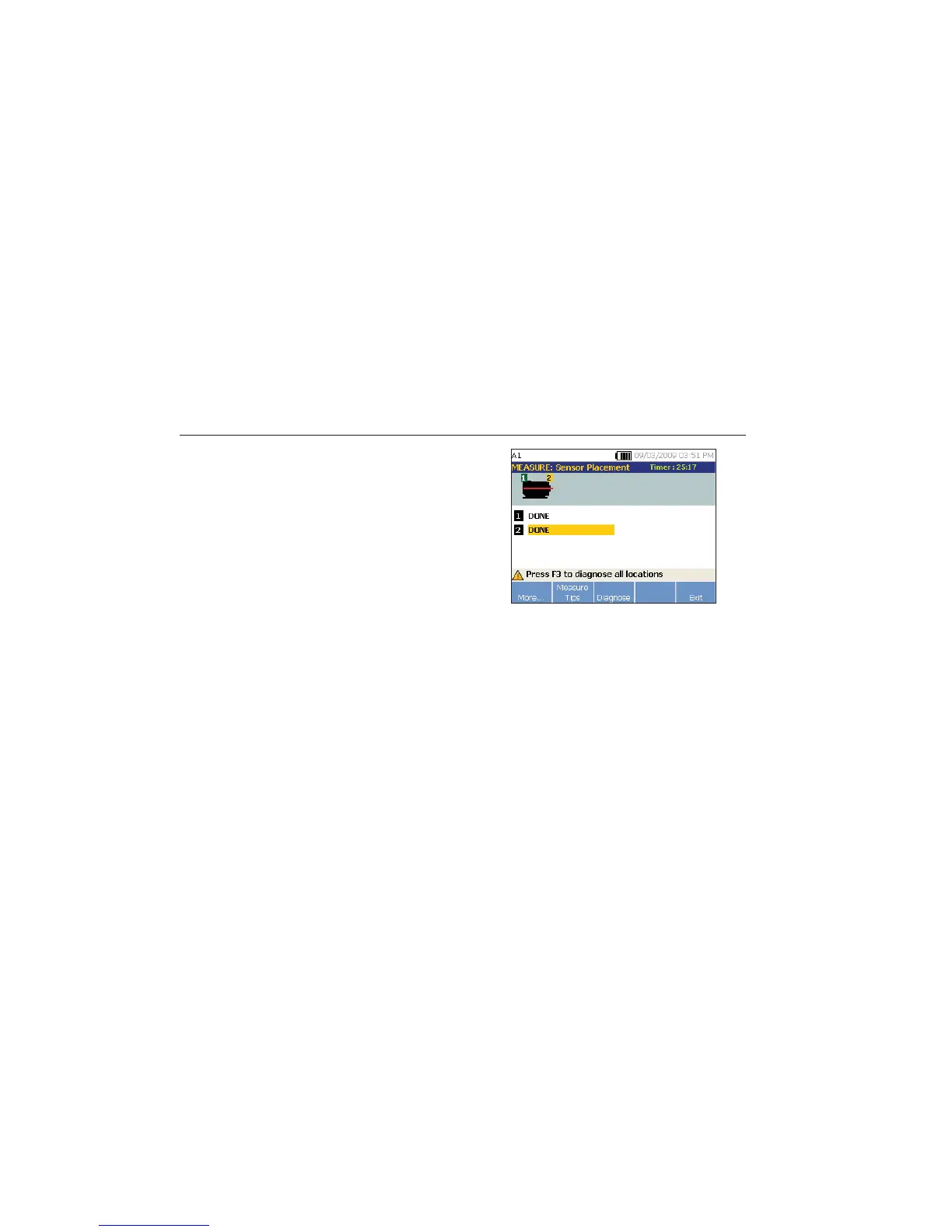

1. Take a measurement. Once the measurement is
done, the Tester displays the screen that
follows.
See Table 4-18 for a list of the softkey
functions for the Measurement screen.
2. Push Diagnose. Or, push the Dial to start the
Diagnosis. The Tester analyses the
measurement data and displays the diagnostic
results.
To Next Page
