FRICK QUANTUM CONTROL PANEL
OPERATION
S90-010 O
Page 22
CONTROL SETUP -
COMPRESSOR SAFETIES -

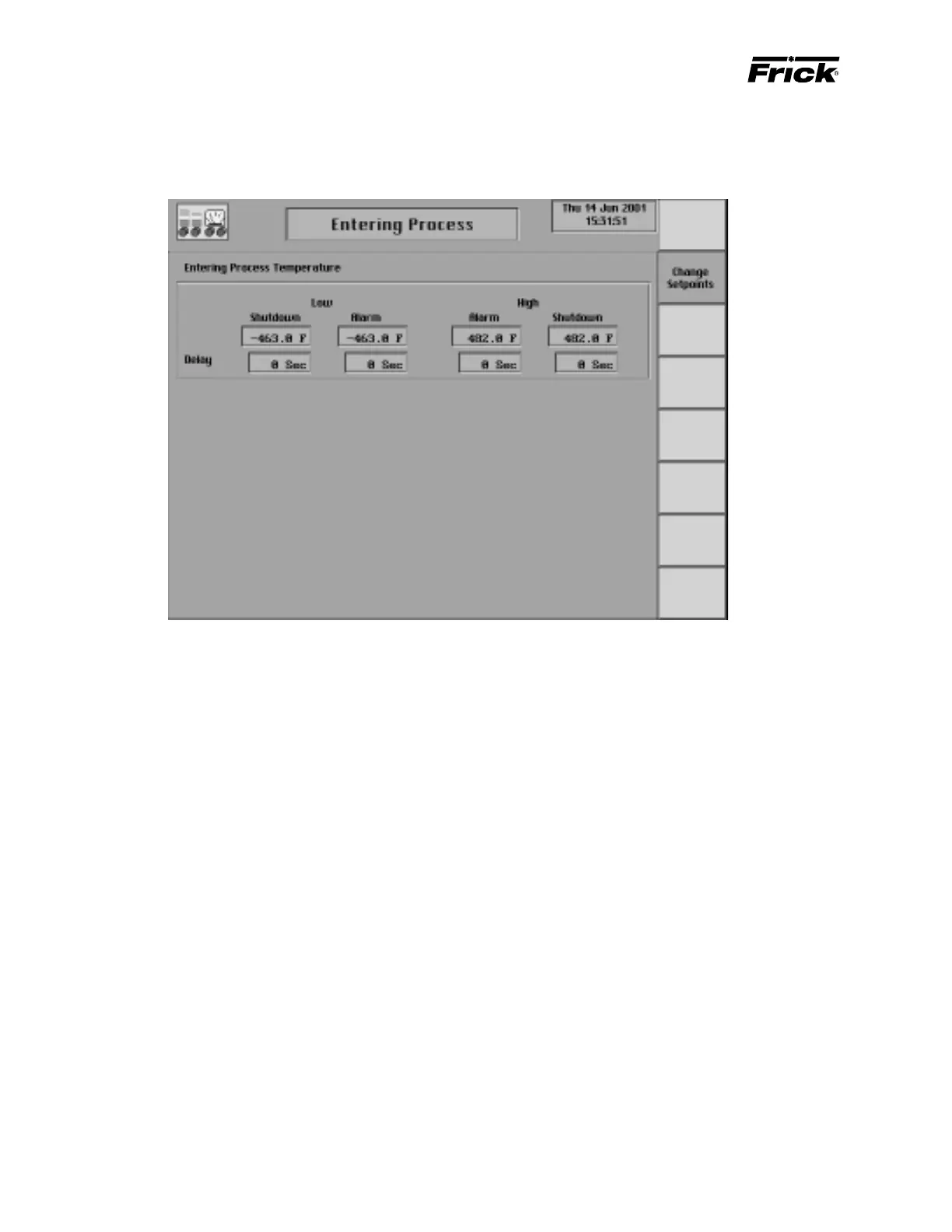

”ENTERING PROCESS SAFETIES” SCREEN
This screen is shown if the “Entering Process Temperature”
option was enabled in Panel Setup. This reading is useful
for monitoring the temperature of what is being processed.
The following Entering Process Temperature setpoints are
on this control setpoint screen:
Low Entering Process Temperature Alarm - If the
Entering Process Temperature is less than or equal to
this setpoint, for the alarm time delay, an alarm occurs.
Low Entering Process Temperature Shutdown - If the
Entering Process Temperature is less than or equal to
this setpoint, for the shutdown time delay, the compres-
sor will shut down.
Low Entering Process Temperature Alarm Delay -
The minimum time in seconds that the Entering Pro-
cess Temperature is less than or equal to the low En-
tering Process Temperature alarm setpoint before noti-
fication of the alarm.
Low Entering Process Temperature Shutdown De-
lay - The minimum time in seconds that the Entering
Process Temperature is less than or equal to the low
“Entering Process” shutdown setpoint before the com-
pressor will shut down.
High Entering Process Temperature Alarm - If the
Entering Process Temperature is greater than or equal
to this setpoint, for the alarm time delay, an alarm occurs.
High Entering Process Temperature Shutdown - If
the Entering Process Temperature is greater than or
equal to this setpoint, for the shutdown time delay, the
compressor will shut down.
High Entering Process Temperature Alarm Delay -
The minimum time in seconds that the Entering Pro-
cess Temperature is greater than or equal to the high
Entering Process Temperature alarm setpoint before
notification of the alarm.
High Entering Process Temperature Shutdown De-
lay - The minimum time in seconds that the Entering
Process Temperature is greater than or equal to the
high Entering Process Temperature shutdown before
the compressor will shut down.
