Frick QUANTUM - ANALOG CALIBRATION - Calibrate Motor Current SCREEN; ANALOG CALIBRATION - Calibrate Slide Stop SCREEN

FRICK QUANTUM CONTROL PANEL
OPERATION
S90-010 O
Page 56
ANALOG CALIBRATION -

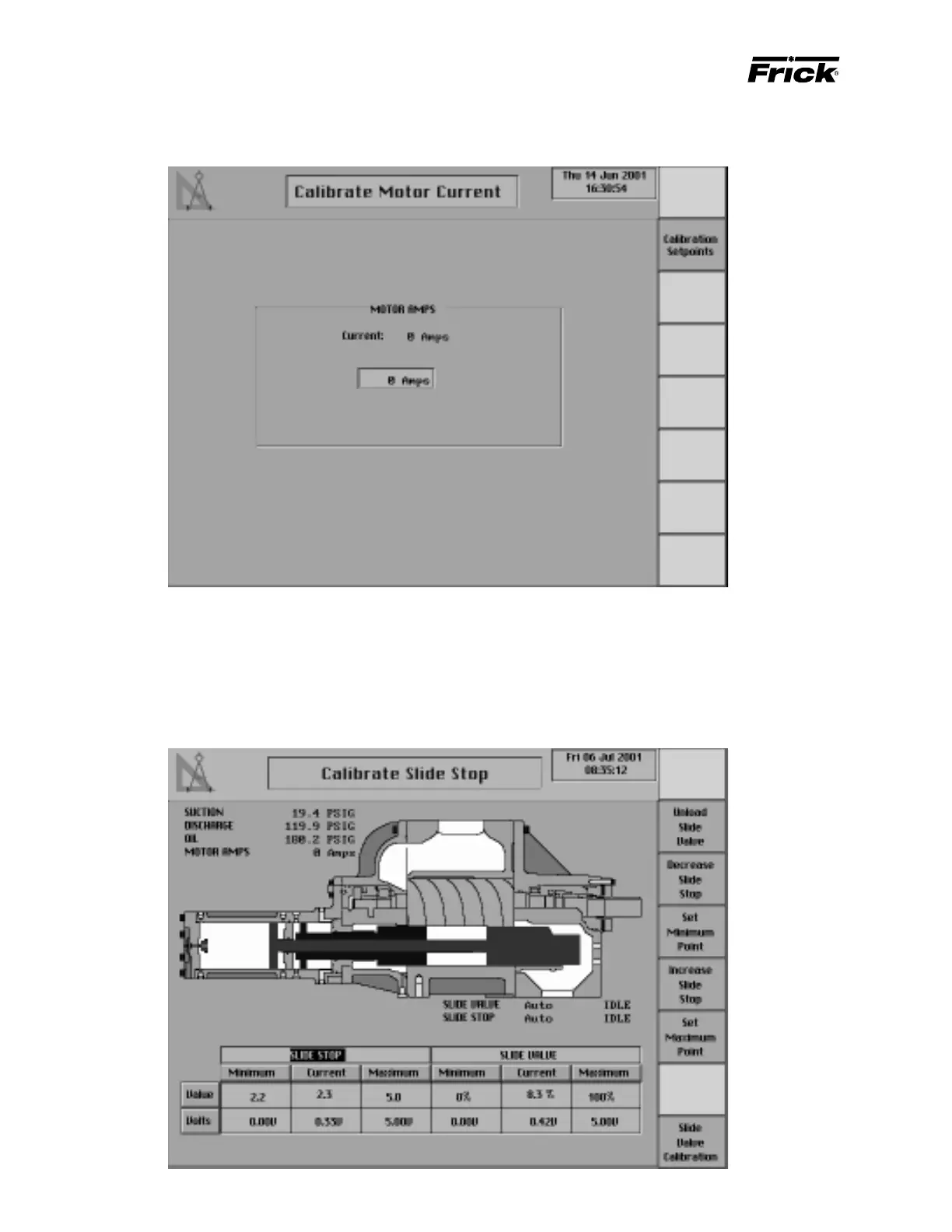

”Calibrate Motor Current” SCREEN
This screen shows the current reading of the motor amps.
Select the [Calibration Setpoints] screen key to modify
what should be shown as the current reading.
Note: The motor current must be calibrated while the
compressor is running and preferably with the compres-
sor loaded.
ANALOG CALIBRATION -
”Calibrate Slide Stop” SCREEN
