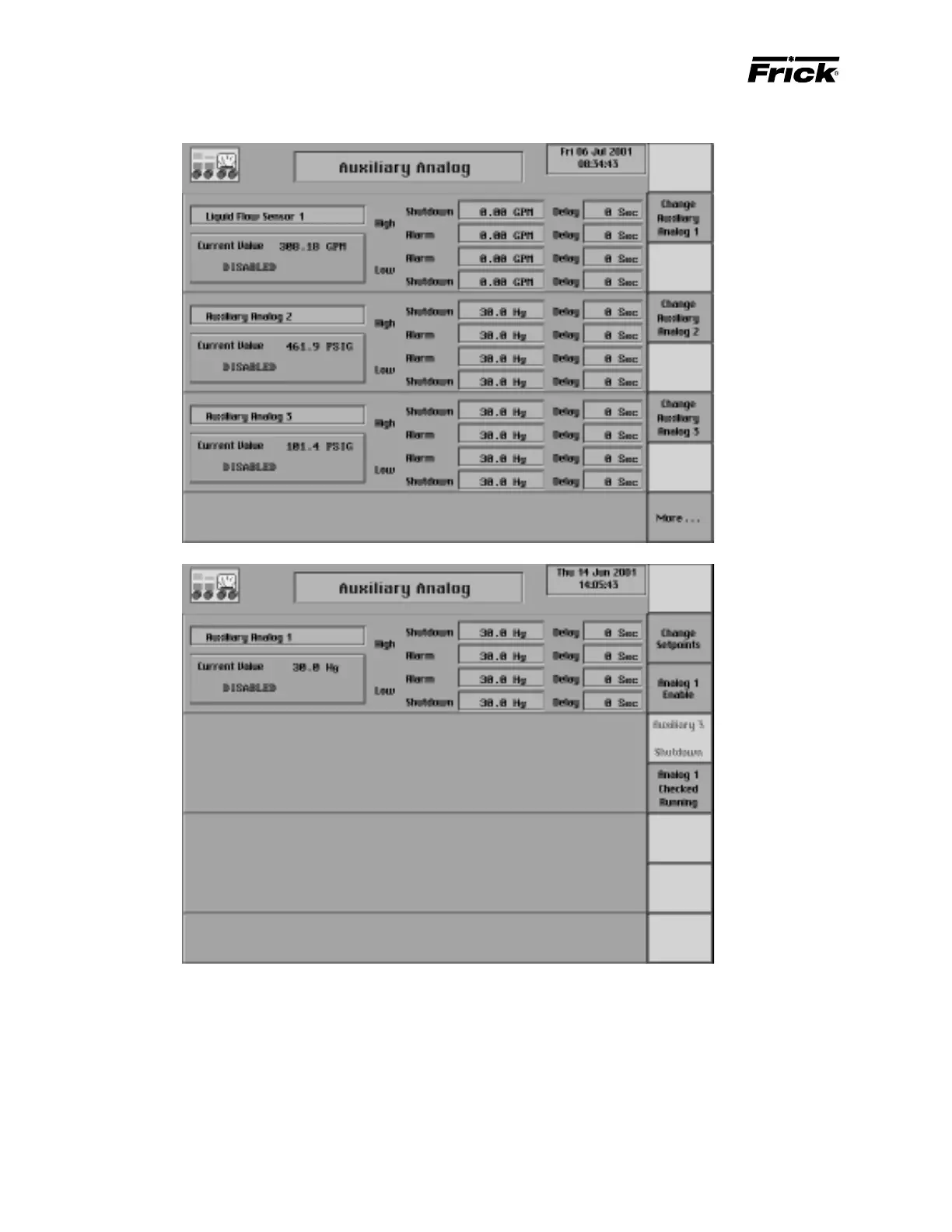

CONTROL SETUP - “AUXILIARY ANALOG TEMPERATURES & PRESSURES” SCREEN
The Temperature/Pressure Monitoring Auxiliary Analogs #1-
#9 and the Side Load/Economizer analog inputs of Analog
Board #2 are set up here. These analog auxiliaries can be
used for either temperature or pressure monitoring. Switch-
ing them to temperature or pressure analog readings is
done in Factory Setup. This screen shows the current read-
ing of the analog value.
This screen has the following setpoints:
High Shutdown - If the analog reading is greater than
or equal to this setpoint, for the shutdown time delay,
the compressor will shut down.
High Shutdown Delay - The minimum time in seconds
that the analog reading is greater than or equal to the
analog shutdown before the compressor will shut down.
High Alarm - If the analog reading is greater than or
equal to this setpoint, for the alarm time delay, an alarm
occurs.
High Alarm Delay - The minimum time in seconds that
the analog reading is greater than or equal to the high
analog alarm setpoint before notification of the alarm.
