Frick QUANTUM - Control Setup - Auxiliaries 3 - 8 Setup Screen

FRICK QUANTUM CONTROL PANEL
OPERATION
S90-010 O
Page 49
CONTROL SETUP -

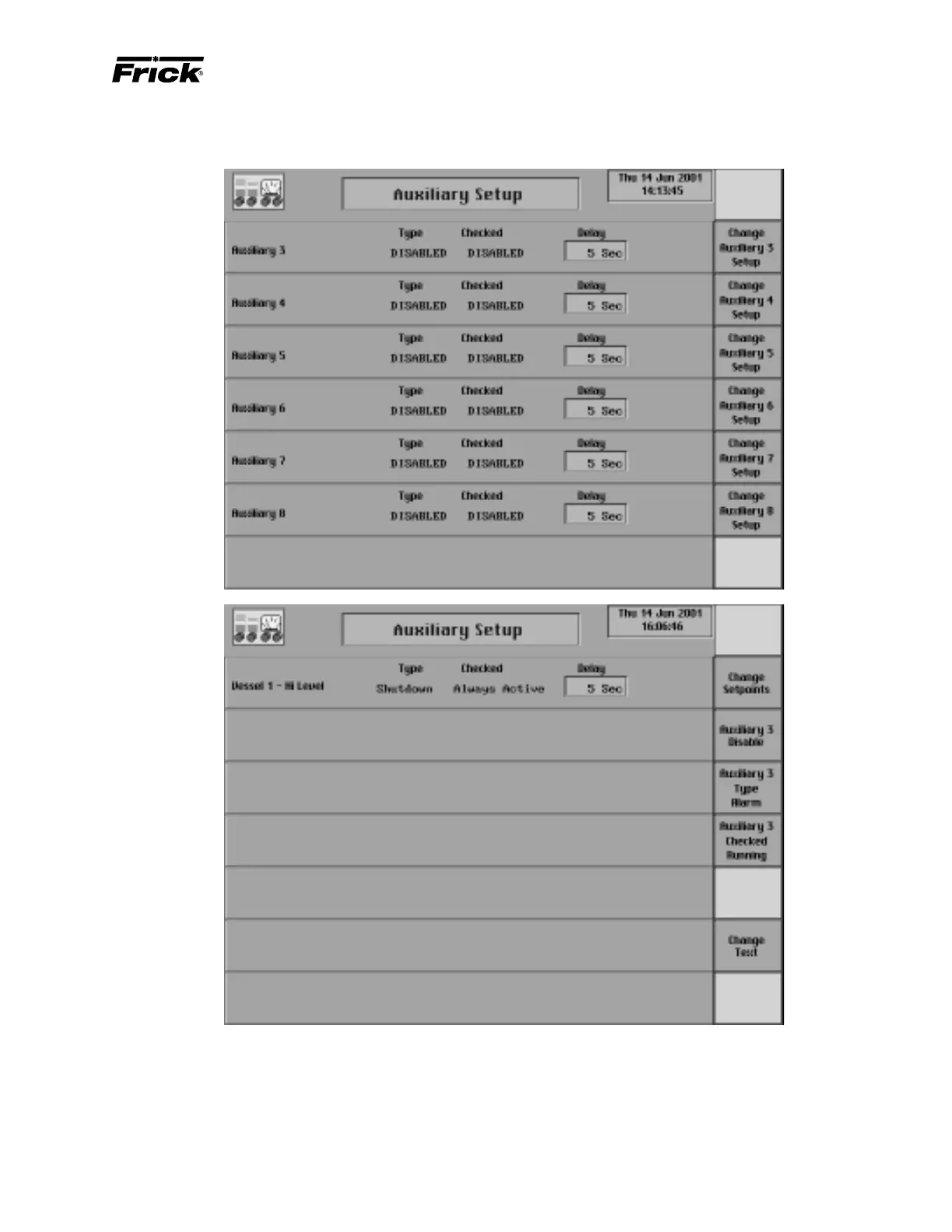

“AUXILIARIES 3 - 8 SETUP” SCREEN
The Auxiliaries #3 - #8 are programmable digital inputs on
Digital I/O Board #2. These additional auxiliaries have the
same settings as Auxiliary #1 and #2 (See “Auxiliary Setup”
Display). In addition to these settings there is a toggle key
that changes between the following selections:
[Auxiliary “x” Enable] - This key is provided if this fea-
ture is disabled for this auxiliary. “x” is used here to
refer to the auxiliary (3-8) that has been selected for
setup.
[Auxiliary “x” Disable] - This key is provided if this
feature is enabled. “x” is used here to refer to the aux-
iliary (3-8) that has been selected for setup.
