FRICK QUANTUM CONTROL PANEL
OPERATION
S90-010 O
Page 59

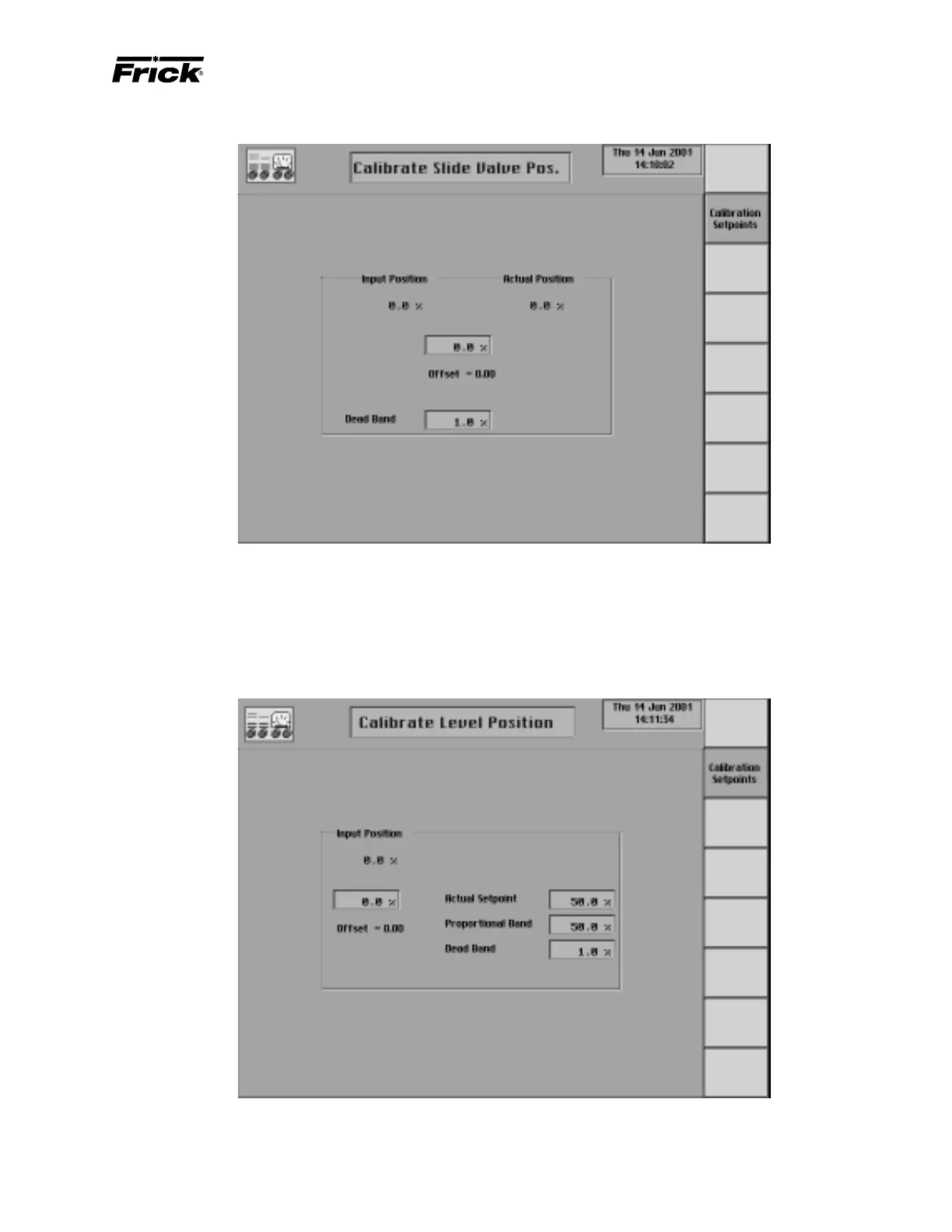

ANALOG CALIBRATION - ”Calibrate Slide Valve Position” SCREEN
This shows if “Slide Valve Position Control” was enabled in
Panel Setup. This screen is used to calibrate the analog
signal of the Remote Slide Valve Position input. Selecting
[Remote Slide Valve] from the Slide Valve mode screen
command keys on the “Operating Status” display, selects a
remote (4-20 ma) signal to control the Slide Valve.
ANALOG CALIBRATION - ”Calibrate Level Position” SCREEN
Note: Outputs 9 and 10 are used as Level Control (9 =
Increase, 10 = Decrease). When YORK S-7 is selected as
Compressor Model, These output assignments will change
to (9 = Liquid Injection, 10 = High Level).
