CONTROL SETUP - ”SETBACK SCHEDULE” SCREEN
Setback is another set of Capacity Control setpoints (Mode
2) that is initiated and removed by time of day. Setback can
be used to save energy. At night or on weekends, when
room doors are kept closed, a higher temperature can be
set to reduce energy consumption.

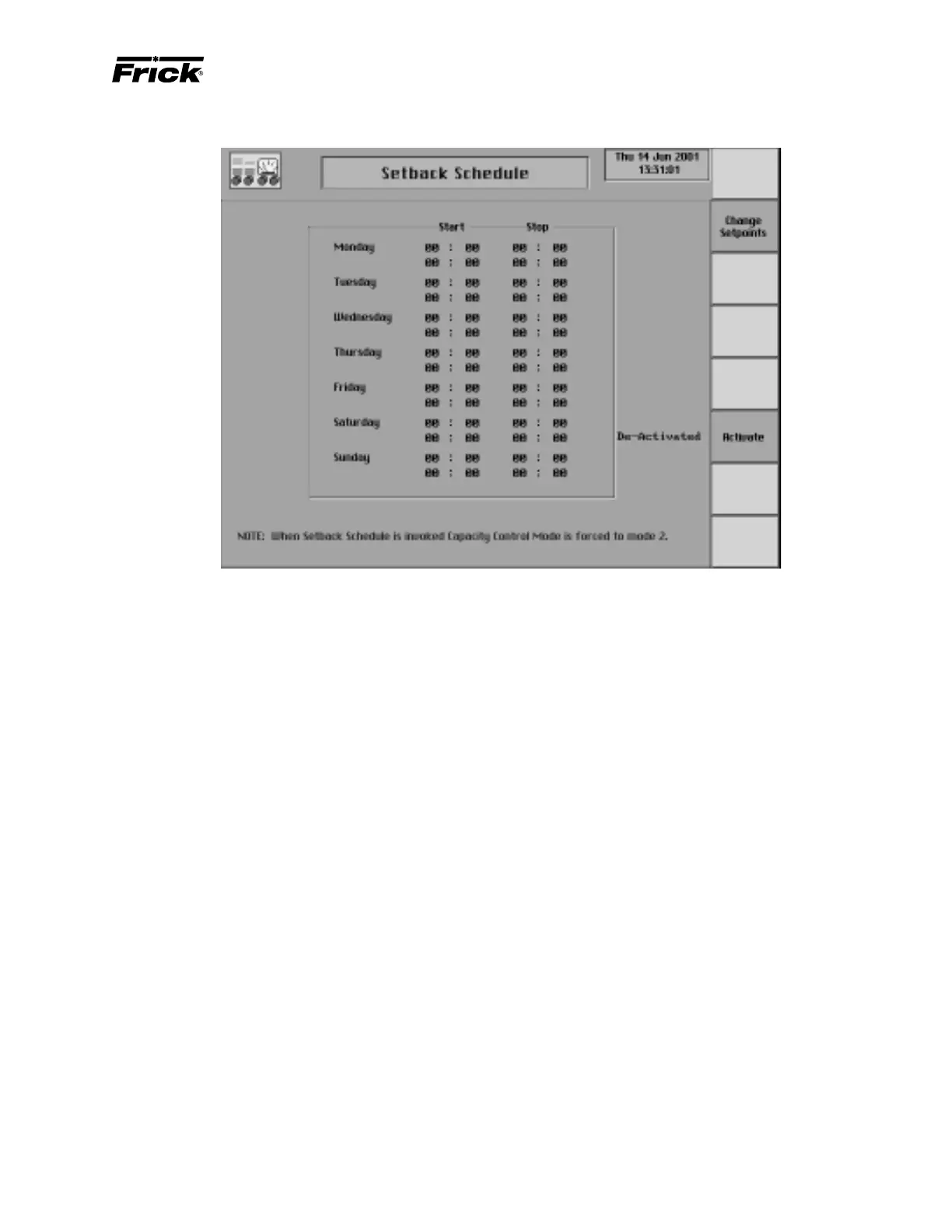

This screen shows a time schedule. Two different start and
stop times can be entered for each day of the week. The
Setback Schedule is only effective if the compressor is in
automatic. The Setback Schedule must be activated to switch
the presently active Capacity Control mode to the Mode 2
(setback) setpoints at the start time. At the stop time the
control mode is returned to the Mode 1 (normal) setpoints.
An entry of 00:00 will void the time entry field. If setback is
required at midnight (00:00) use 00:01. The following are
descriptions of the setpoints:
Start - time of day to switch to the Mode 2 (setback)
setpoints of the active capacity control.
Stop - time of day to return to the Mode 1 (normal)
setpoints of the active Capacity Control.
