CONTROL SETUP -
”OIL SETPOINTS” SCREEN

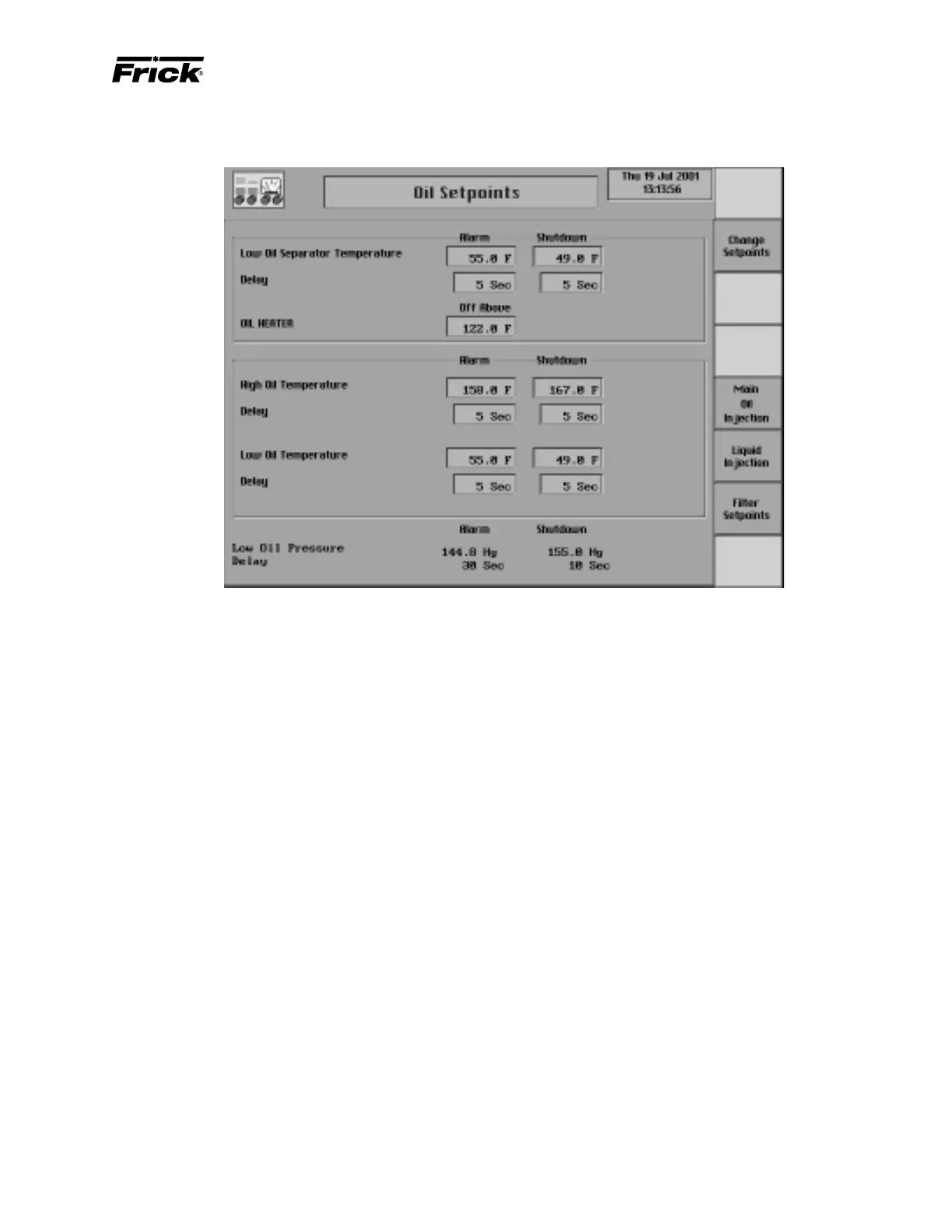

The following oil separator setpoints are on this display:
Low Oil Separator Temperature Alarm - If the Oil Sepa-
rator Temperature is less than or equal to this setpoint,
for the alarm time delay, an alarm occurs.
Low Oil Separator Temperature Shutdown - If the Oil
Separator Temperature is less than or equal to this
setpoint, for the shutdown time delay, the compressor
will shut down.
Low Oil Separator Temperature Alarm Delay - The
minimum time in seconds that the Oil Separator Tem-
perature is less than or equal to the Low Oil Separator
Temperature Alarm setpoint before notification of the
alarm.
Low Oil Separator Temperature Shutdown Delay -
The minimum time in seconds that the Oil Separator
Temperature is less than or equal to the Low Oil Sepa-
rator Shutdown setpoint before the compressor will shut
down.
Oil Heater Off Above - While the compressor is not
running, the Oil Separator heater(s) will be turned off if
the temperature is greater than or equal to this setpoint;
however, if the temperature is 1 °C below this setpoint
the Oil Separator heater(s) will be turned on. If the com-
pressor is running, the oil heater(s) are turned off.
The following oil setpoints are on this display:
High Oil Temperature Alarm - If the Oil Temperature is
greater than or equal to this setpoint, for the alarm time
delay, an alarm occurs.
High Oil Temperature Shutdown - If the Oil Tempera-
ture is greater than or equal to this setpoint, for the
shutdown time delay, the compressor will shut down.
High Oil Temperature Alarm Delay - The minimum
time in seconds that the Oil Temperature is greater than
or equal to the High Oil Temperature Alarm setpoint
before notification of the alarm.
High Oil Temperature Shutdown Delay - The mini-
mum time in seconds that the Oil Temperature is
greater than or equal to the High Oil Temperature Alarm
setpoint before the compressor will shut down.
Low Oil Temperature Alarm - If the Oil Temperature is
less than or equal to this setpoint, for the alarm time
delay, an alarm occurs.
Low Oil Temperature Shutdown - If the Oil Tempera-
ture is less than or equal to this setpoint, for the shut-
down time delay, the compressor will shut down.
Low Oil Temperature Alarm Delay - The minimum
time in seconds that the oil separator temperature is
less than or equal to the Low Oil Separator Alarm set-
point before notification of the alarm.
Low Oil Temperature Shutdown Delay - The mini-
mum time in seconds that the oil separator tempera-
ture is less than or equal to the Low Oil Separator
Shutdown setpoint before the compressor will shut
down.
