time period to view. The “Data Log View” screen shows (hg)
values in parenthesis. The “Trending View” screen auto-
matically scales to include all the data. The time period to
view is selected from the “Data Log View” screen.
The following screen command key is provided for both the
Data Log View above and the Trending View that follows:
[Select Data] -Changes the screen command keys to
the following selections of data to show:
• Suction Pressure
• Suction Temperature
• Discharge Pressure
• Discharge Temperature
• Oil Pressure
• Oil Temperature
• Filter Pressure
• Separator Temperature
• Balance Piston
• Process Temperature
• Motor Current
• Slide Valve
• Slide Stop
• Status
A toggle key is provided for each of the data selections:
[Show] - Selects the data to be shown.
[Remove] - Removes this data from being shown.

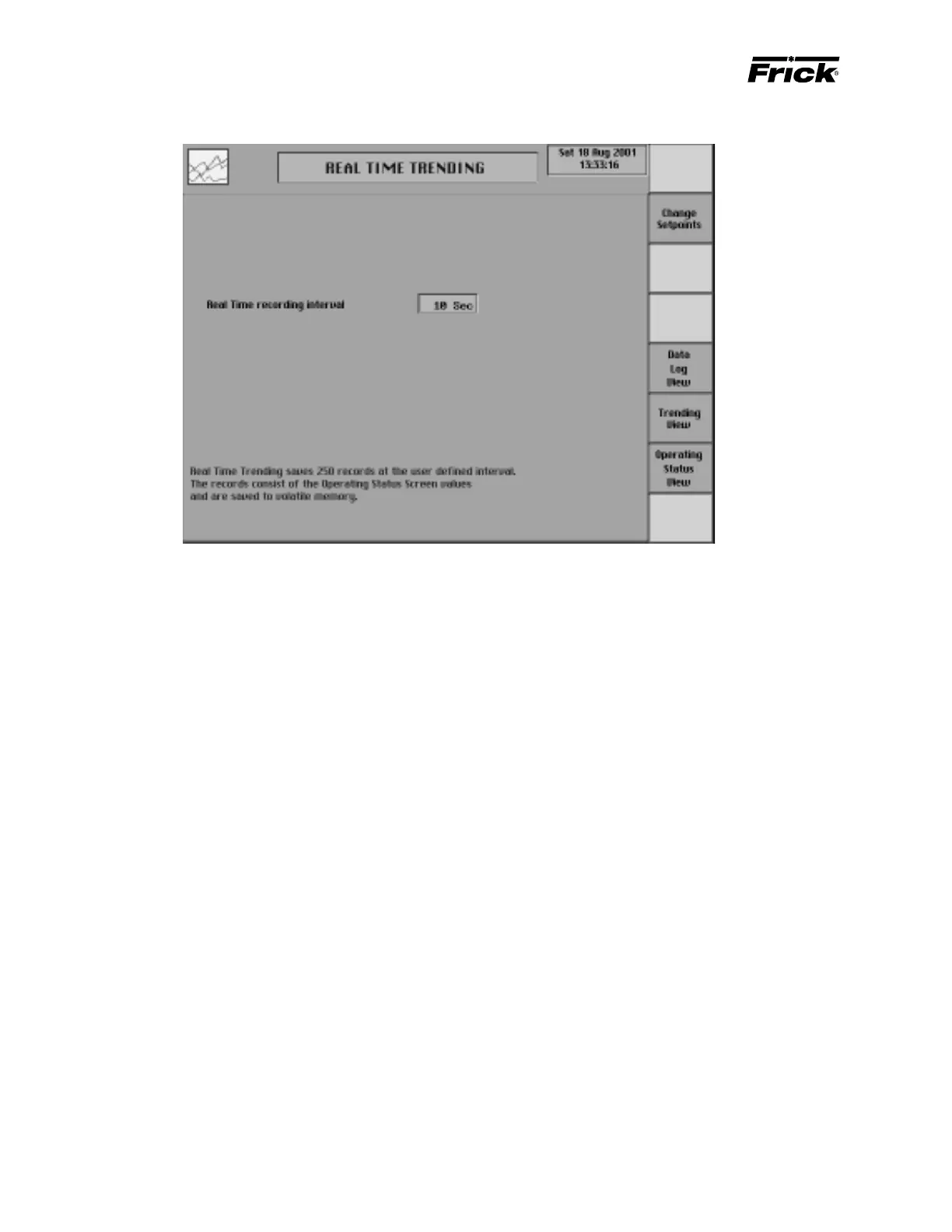

“MAIN MENU” SELECTION - “REAL TIME TRENDING” SCREEN
Real time trending saves 250 recordings of the data items
from the “Operating Status” screen. The data is stored in
RAM memory. RAM memory is volatile memory and all in-
formation is lost if the power to the panel is lost. The data
can be selected to be saved as frequently as once a second.
The following setpoint is provided:
Real time recording interval – The time interval in
seconds that defines how often the trending data val-
ues are recorded.
The following screen command keys are provided:
[Data Log View] - Accesses the “Real Time Trending”
Display for viewing the data in a tabular format.
[Trending View] - Accesses the “Real Time Trending”
Display for viewing the data in a graphical format.
[Operating Status View] - Accesses the “Real Time
Trending” Display for viewing the data as it was on the
“Operating Status” display format.
The data items to be viewed are selected from either “Data
Log View” or “Trending View” screen. The recorded data of
a pressure or a temperature reading can be added or re-
moved from what is currently displayed. Up to nine sepa-
rate channels can be viewed at a time in any order. The
screen command keys are used to select what data and
