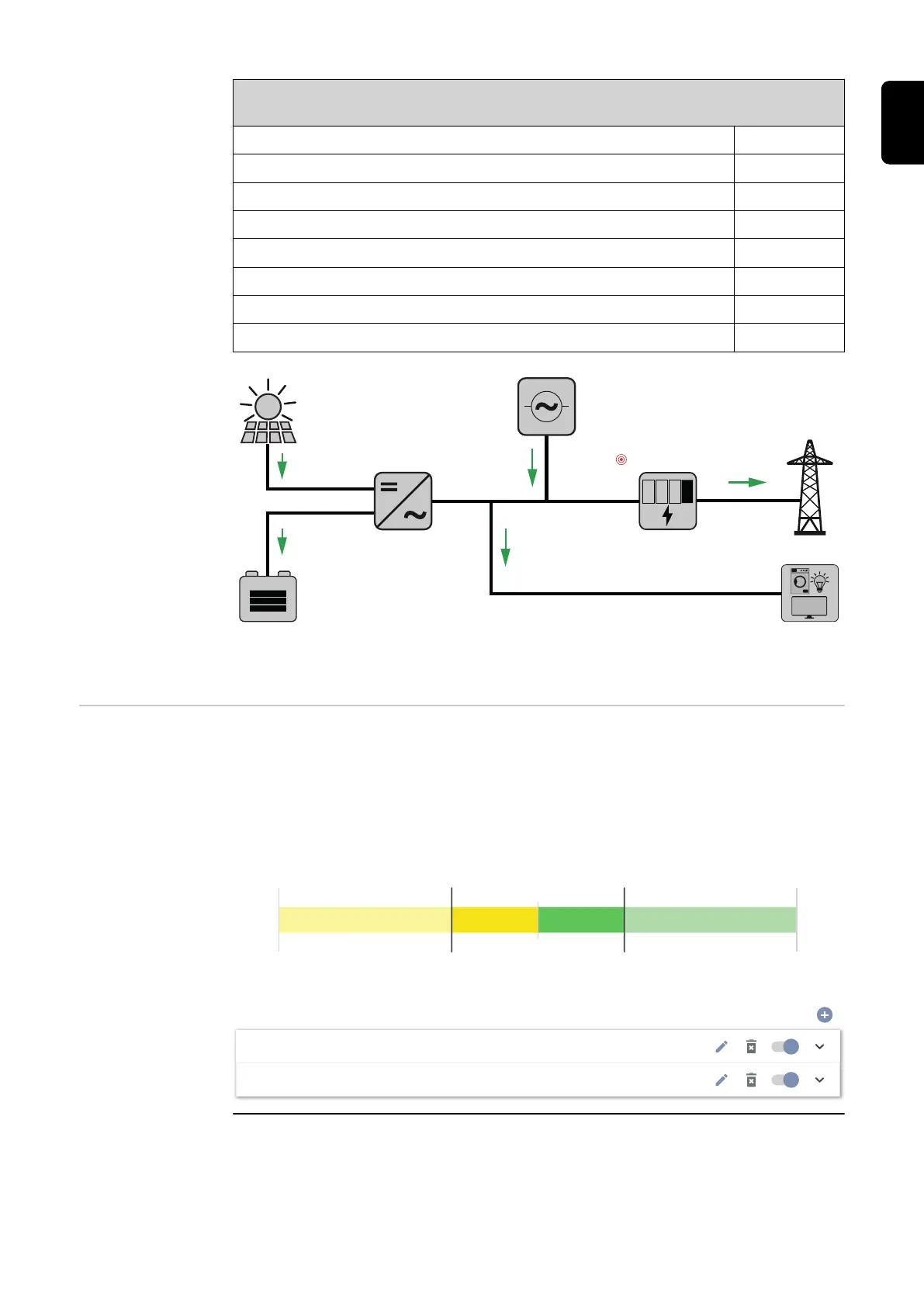

Example: Battery system including second producer in the house (with AC
max. limitation)
PV system available power 1000 W
Power into the battery 2000 W
Power consumption AC max. limited to 1000 W
Power consumption (AC) of the inverter 1000 W
Second producer in home network 2000 W
Target value set at feed-in point 0 W
Infeed into the public grid 500 W
Consumption in home 500 W
TARGET: 0W
500 W
500 W
2000 W1000 W
2000 W
AC MAX: 1000 W
1000 W
+
-
00
1
Allowed battery
control rules
A rule always consists of a restriction or parameter and the time control "Time"
and "Weekdays" while the rule is active. Rules with the same restriction (e.g. max.
charging power) must not overlap in time.
Max. charging and discharging limits
The max. charging and max. discharging power can be configured at the same
time.
Max. charging power
Max. discharging power
2000 W
2000 W
00:00 – 23:59
00:00 – 23:59
1.
Mo Tu We Th Fr Sa Su
Mo Tu We Th Fr Sa Su
2.
Limit
charging power
Max. charging
power 2000 W
Limit
discharge power
Max. discharge
power 2000 W
