Fronius Symo GEN24 10.0 User Manual

WARNING!
Danger due to work that has been carried out incorrectly.
This can result in serious injury and damage to property.
▶
Installing and connecting a surge protective device (SPD) must only be car-
ried out by service personnel trained by Fronius and only within the scope of
the respective technical regulations.
▶
Follow the safety rules.
AC~
OFF
1
ON
OFF
2

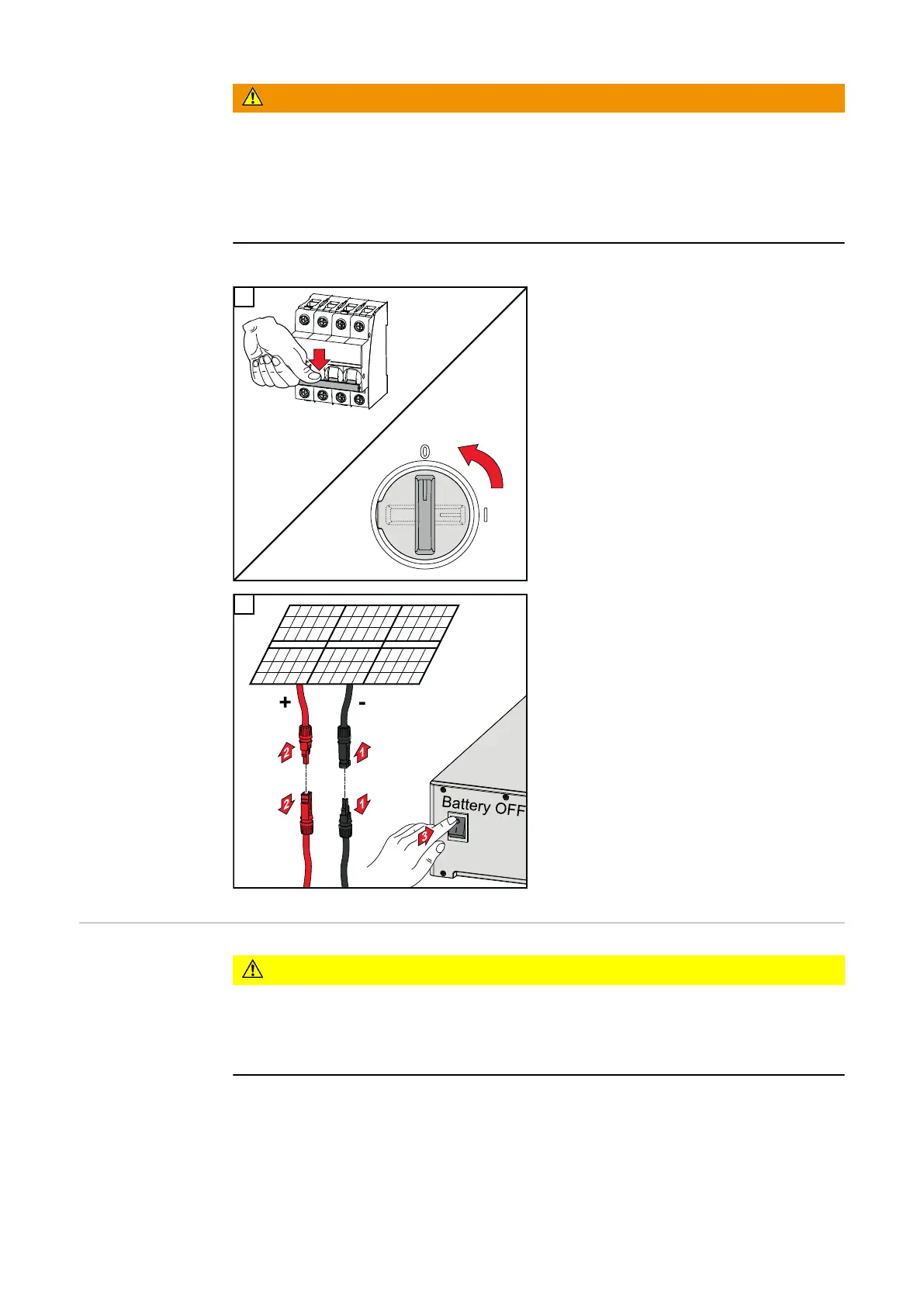

1
Turn off the automatic circuit breaker.
Set the DC disconnector to the "Off"
switch position.
2
Disconnect connections from the solar
module strings (+/-). Switch off the
battery connected to the inverter.
Wait for the capacitors of the inverter
to discharge (2 minutes).
Installation
CAUTION!
Risk due to insufficiently dimensioned ground conductor.
Damage to the inverter due to thermal overload can result.
▶
The national standards and guidelines must be observed for dimensioning
the ground conductor.
142

Fronius Symo GEN24 10.0 Specifications

General

Model	Fronius Symo GEN24 10.0
Category	Inverter
AC nominal output	10.0 kW
AC grid frequency	50 Hz / 60 Hz
THD	< 3 %
Number of MPP trackers	2
Protection class	IP66
AC Nominal Voltage	230 V / 400 V
Operating Temperature Range	-25°C to +60°C
Max. apparent AC power	10, 000 VA
AC nominal voltage range	230 V
DC connection	4x DC+ and 4x DC- screw terminals
Maximum AC Power	10000 VA
Maximum DC Power	15 kW
AC Voltage Range	180 - 280 V
Cooling	Active cooling
Warranty	5 years
