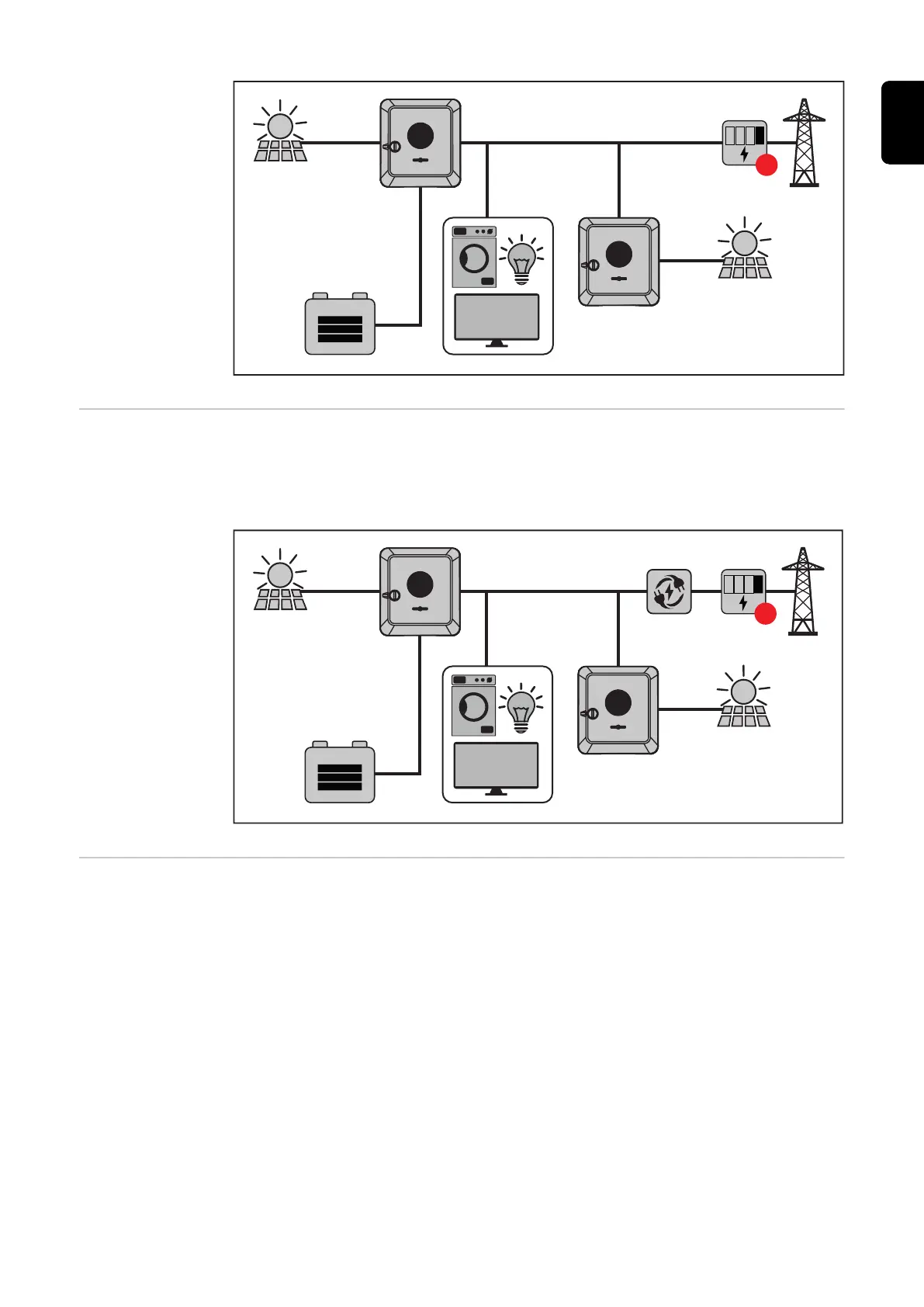

Operating mode
– Inverter with
battery, further
inverter and
backup power
function
In the hybrid photovoltaic system, batteries must only be connected to one in-
verter with battery support. Batteries cannot be split between multiple inverters
with battery support. However, depending on the battery manufacturer, several
batteries can be combined on one inverter.
Energy flow dir-
ection of the in-
verter
In the case of hybrid inverters, there are four different energy flow directions:
23
EN
