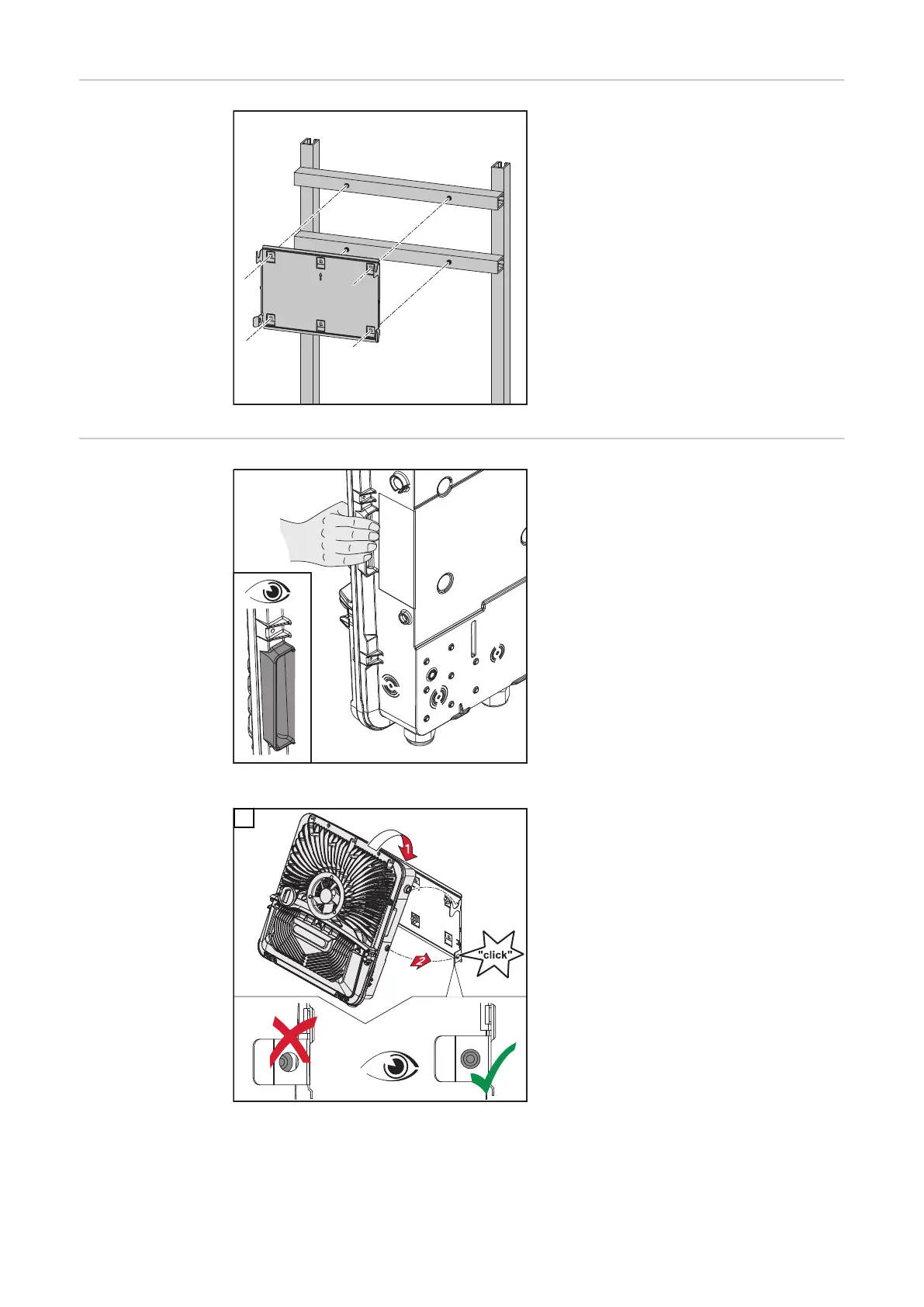

Attaching the
mounting brack-
et to mounting
rails
IMPORTANT!
The mounting bracket must be affixed
at a minimum of four points.
Attaching the in-
verter to the
mounting brack-
et
There are integrated grips on the side
of the inverter which facilitate lifting/
attaching.
1
Clip the inverter into the mounting
bracket from above. The connections
must point downwards.
The lower area of the inverter is
pushed into the snap-in tabs until the
inverter audibly clicks into place on
both sides.
Check that the inverter is correctly po-
sitioned on both sides.
