Fronius Symo GEN24 10.0 User Manual

WARNING!
Danger due to damaged and/or contaminated terminals.
This can result in serious injury and damage to property.
▶
Before making any connections, check the terminals for damage and con-
tamination.
▶
Remove contamination in the de-energized state.
▶
Have defective terminals repaired by an authorised specialist.
PV generator -
general informa-
tion

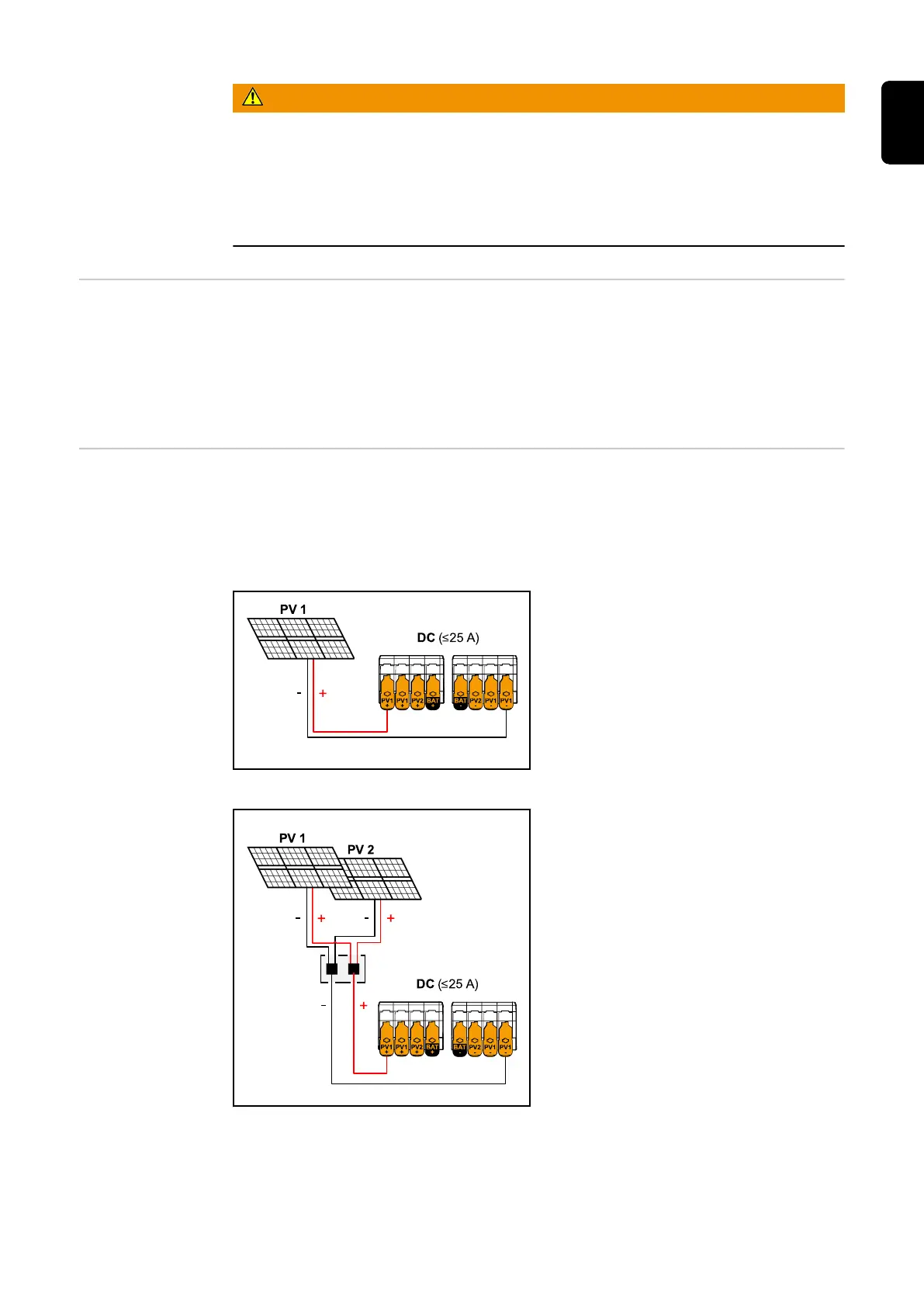

2 independent PV inputs (PV 1 and PV 2) are available. These can be connected
to a different number of modules.
When using for the first time, set up the PV generator according to the respect-
ive configuration (also possible later in the “System configuration” menu under
the “Components” menu item).
PV generator
configuration
6 - 10 kW
IMPORTANT!
The installation must be carried out in accordance with the nationally applicable
standards and directives. If the Arc Fault Circuit Interrupter integrated in the in-
verter is used for the requirement according to IEC 63027 for arc detection, the
solar module strings must not be combined in front of the inverter.
Total current less than or equal to 25 A.
PV generator settings:
PV 1: ON
PV 2: OFF
Combined solar module strings with total cur-
rent less than or equal to 25 A.
PV generator settings:
PV 1: ON
PV 2: OFF
69
EN

Fronius Symo GEN24 10.0 Specifications

General

Model	Fronius Symo GEN24 10.0
Category	Inverter
AC nominal output	10.0 kW
AC grid frequency	50 Hz / 60 Hz
THD	< 3 %
Number of MPP trackers	2
Protection class	IP66
AC Nominal Voltage	230 V / 400 V
Operating Temperature Range	-25°C to +60°C
Max. apparent AC power	10, 000 VA
AC nominal voltage range	230 V
DC connection	4x DC+ and 4x DC- screw terminals
Maximum AC Power	10000 VA
Maximum DC Power	15 kW
AC Voltage Range	180 - 280 V
Cooling	Active cooling
Warranty	5 years
