Fronius Symo GEN24 10.0 User Manual

Switching off current supply and restarting the
inverter
De-energising
the inverter and
switching it on
again

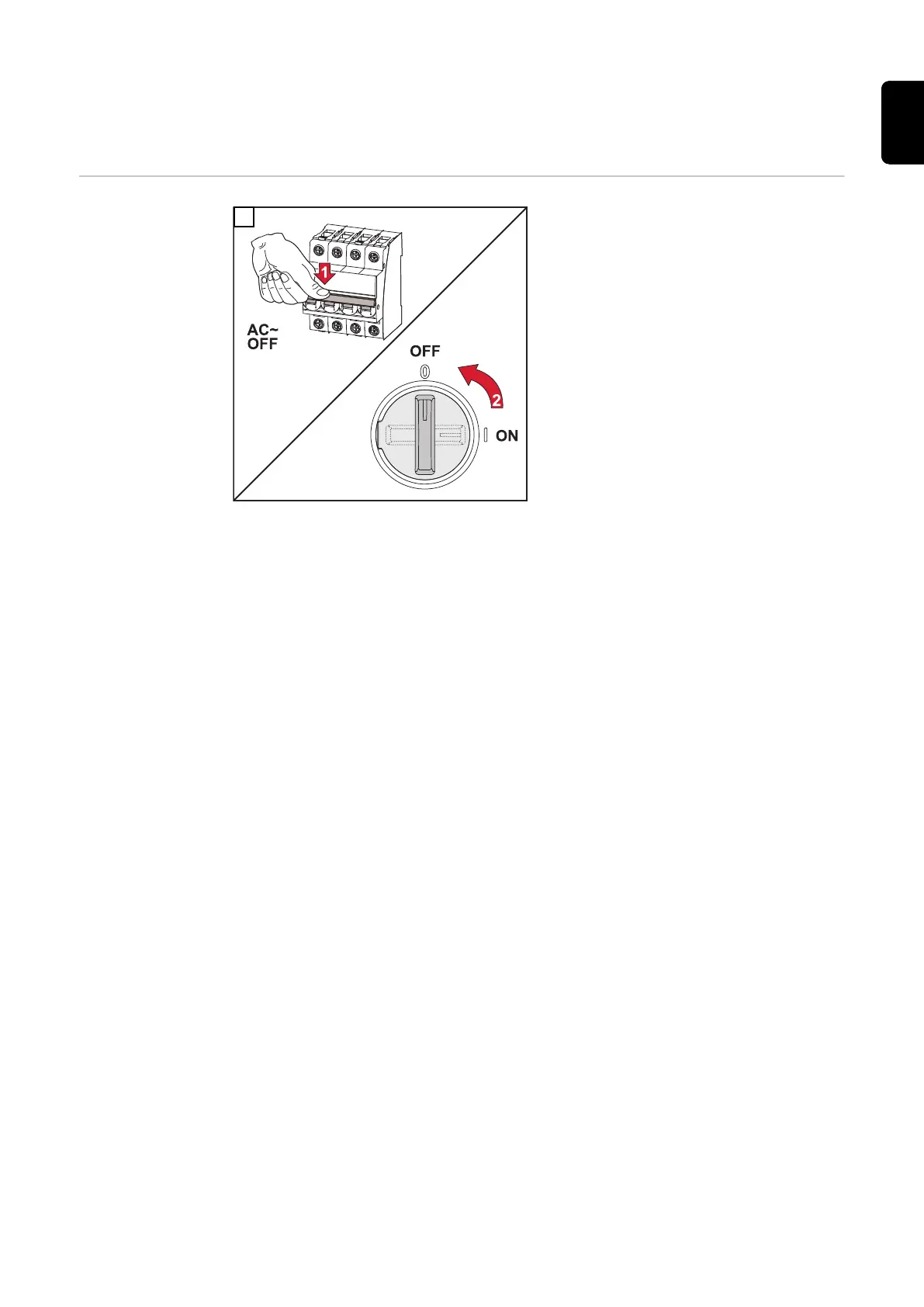

1
1.
Turn off the automatic circuit
breaker.
2.
Turn the DC disconnector to the
"Off" switch position.
To start up the inverter again, follow
the steps listed above in reverse order.
99
EN

Fronius Symo GEN24 10.0 Specifications

General

Model	Fronius Symo GEN24 10.0
Category	Inverter
AC nominal output	10.0 kW
AC grid frequency	50 Hz / 60 Hz
THD	< 3 %
Number of MPP trackers	2
Protection class	IP66
AC Nominal Voltage	230 V / 400 V
Operating Temperature Range	-25°C to +60°C
Max. apparent AC power	10, 000 VA
AC nominal voltage range	230 V
DC connection	4x DC+ and 4x DC- screw terminals
Maximum AC Power	10000 VA
Maximum DC Power	15 kW
AC Voltage Range	180 - 280 V
Cooling	Active cooling
Warranty	5 years
