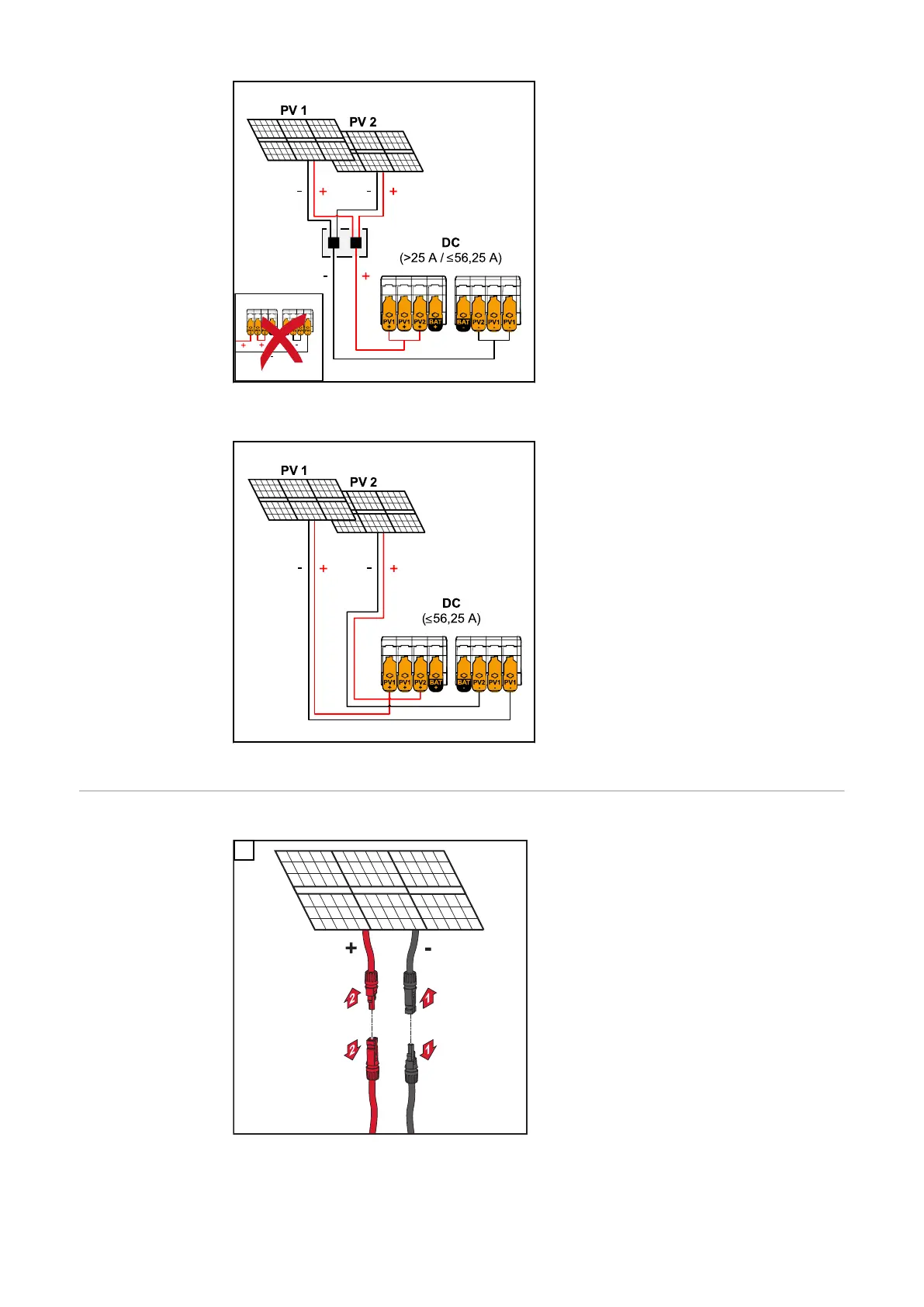

Combined solar module strings with total cur-
rent greater than 25 A.
PV generator settings:
PV 1: ON
PV 2: OFF
PV 1 + PV 2 (connected in parallel):
ON
IMPORTANT!
The maximum current load of a single
terminal is 25 A. PV connection strings
with a total current of more than 25 A
must be split between both PV inputs
upstream of the terminals (≤ 56.25 A).
The plug connection for splitting the
total current must be sufficiently di-
mensioned, suitable and correctly in-
stalled. Splitting the current by
bridging from PV 1 to PV 2 at the ter-
minal is not permitted.
PV 1 ≤ 37.5 A / PV 2 ≤ 18.75 A
PV generator settings:
PV 1: ON
PV 2: ON
Connecting the
solar module
strings to the in-
verter
1
