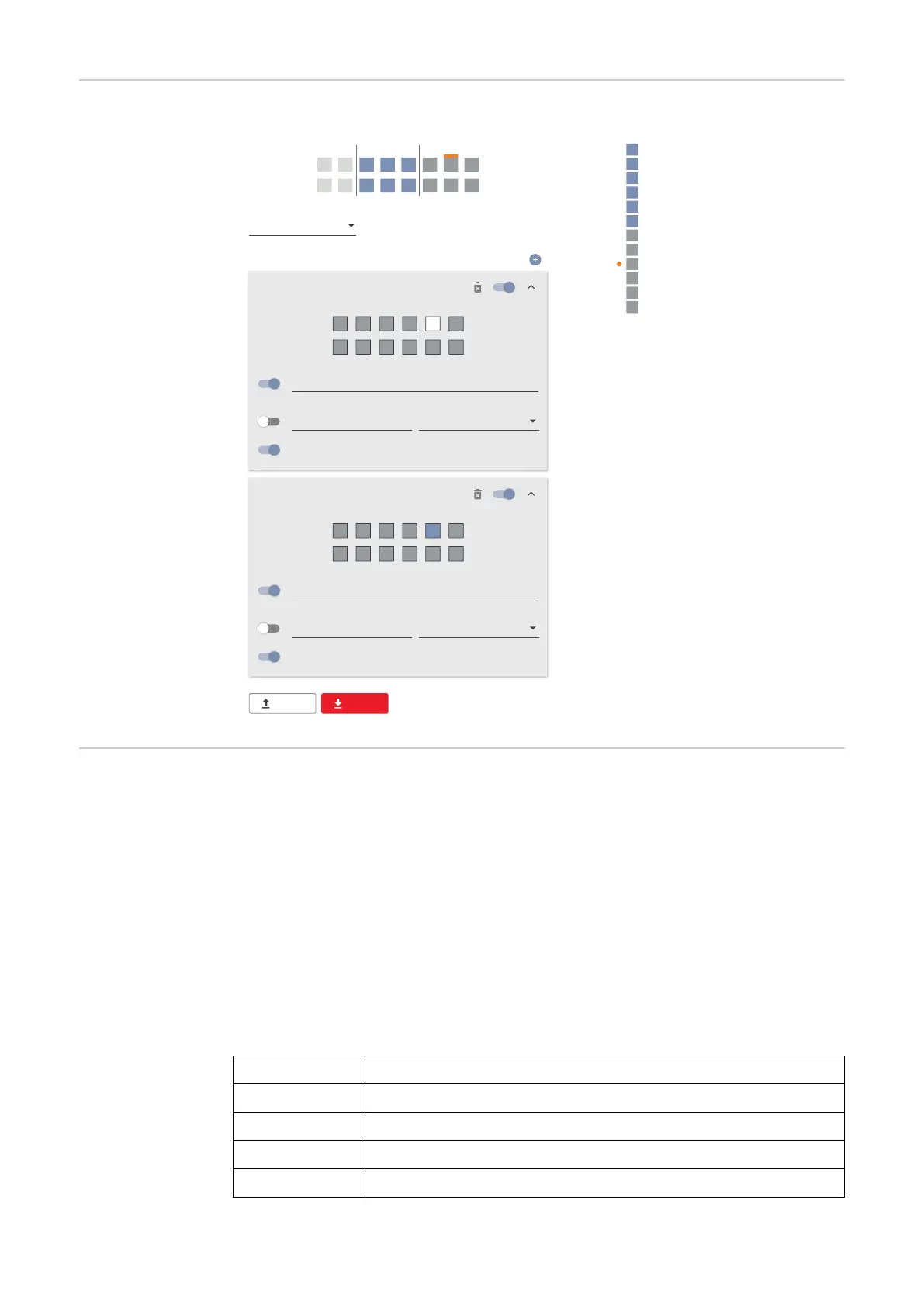

I/O power man-
agement set-
tings - 1 relay
DNO Rules
V+/GND IO I
not used
DNO Feedback
Rule 1
0 2 4 6 8 10
1 3 5 7 9 11
100
DNO Feedback
Active Power
1 cap
Power Factor (cos φ)
Rule 2
0 2 4 6 8 10
1 3 5 7 9 11
0
DNO Feedback
Active Power
1 cap
Power Factor (cos φ)
EXPORTIMPORT
0
0
2
3
4
5
6
7
8
9
10
11
1
2 4
1 3 5
6
9 117
108
v+ v+
GND GND
I/O Power Management
None
None
None
None
None
None
None
None
IO control
None
None
None
Autotest
(CEI 0-21)
Description
The "Autotest" can be used to check the protection function required by Italian
standards for monitoring the voltage and frequency limit values of the inverter
during commissioning. In normal operation, the inverter constantly checks the
current voltage and frequency actual value of the grid.
After starting the autotest, various individual tests run automatically one after
the other. Depending on network conditions, the duration of the test is about 15
minutes.
IMPORTANT!
The inverter may only be commissioned in Italy after an autotest has been suc-
cessfully performed (CEI 0-21). If the autotest is not passed, feeding energy into
the grid is not permitted. Once the autotest is started, it must be completed suc-
cessfully. The autotest cannot be started during backup power operation.
U max Test for checking the maximum voltage in phase conductors
U min Test for checking the minimum voltage in phase conductors
f max Test for checking the maximum grid frequency
f min Test for checking the minimum grid frequency
f max alt Test for checking an alternative maximum grid frequency
136
