Install the mounting bracket and hang up the in-
verter
Selecting the fix-
ing material
Use the corresponding fixing materials depending on the subsurface and observe
the screw dimension recommendations for the mounting bracket.
The installer is responsible for selecting the right type of fixing.
Properties of the
mounting brack-
et

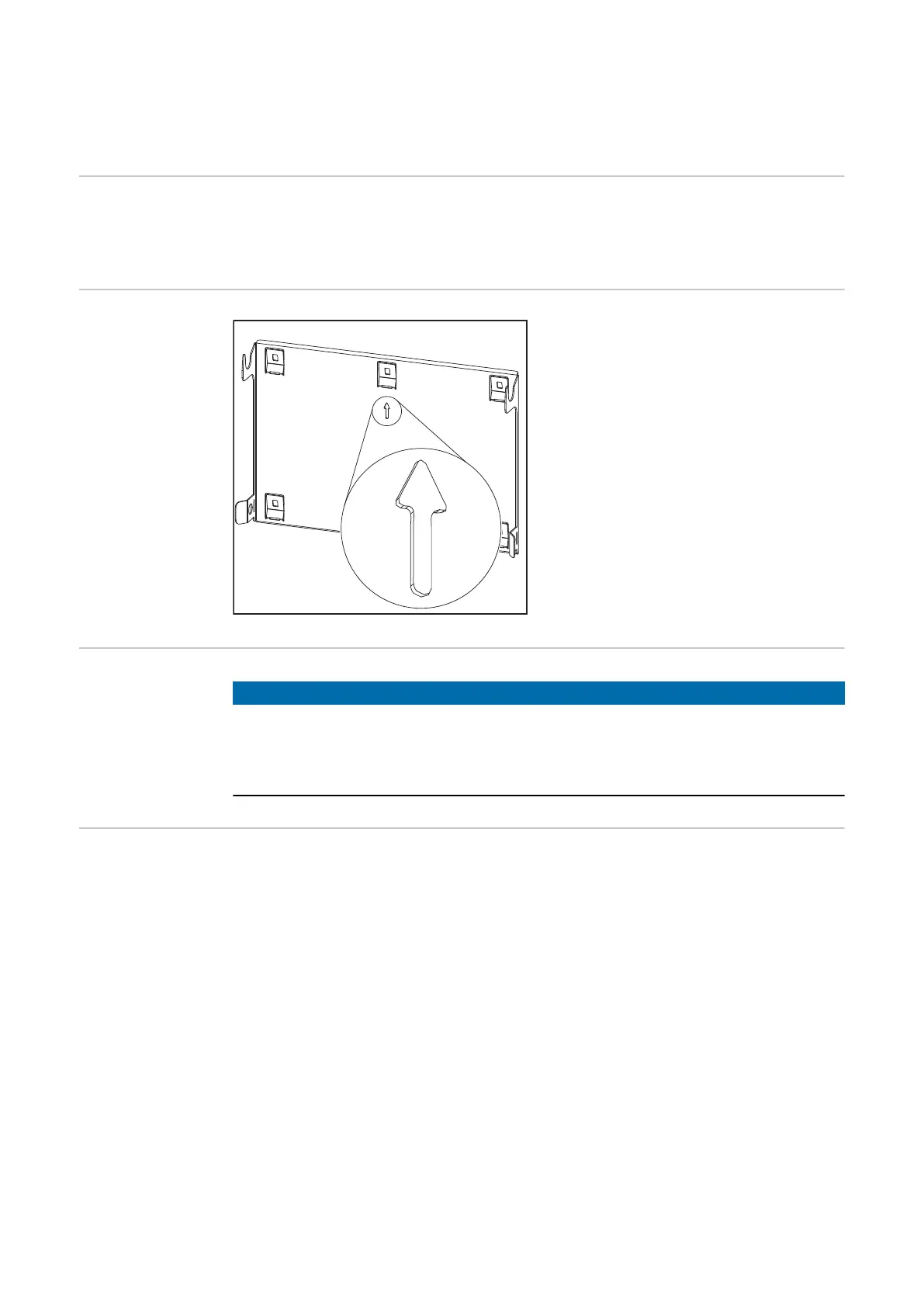

The mounting bracket (illustration) is
also used as the gauge.
The pre-drilled holes on the mounting
bracket are intended for screws with a
thread diameter of 6 - 8 mm (0.24 -
0.32 inches).
Unevenness on the installation surface
(for example, coarse-grained plaster) is
largely counterbalanced by the mount-
ing bracket.
Do not deform
the mounting
bracket
NOTE!
When fitting the mounting bracket to the wall or column, ensure that the
mounting bracket does not become deformed.
A deformed mounting bracket may make it difficult to clip/swivel the inverter in-
to position.
Fitting the
mounting brack-
et to a wall
IMPORTANT!
When installing the mounting bracket, make sure that it is installed with the ar-
row pointing upwards.
58
