32 - 11 = 21 → Production year 2021
06 = Calendar week 06

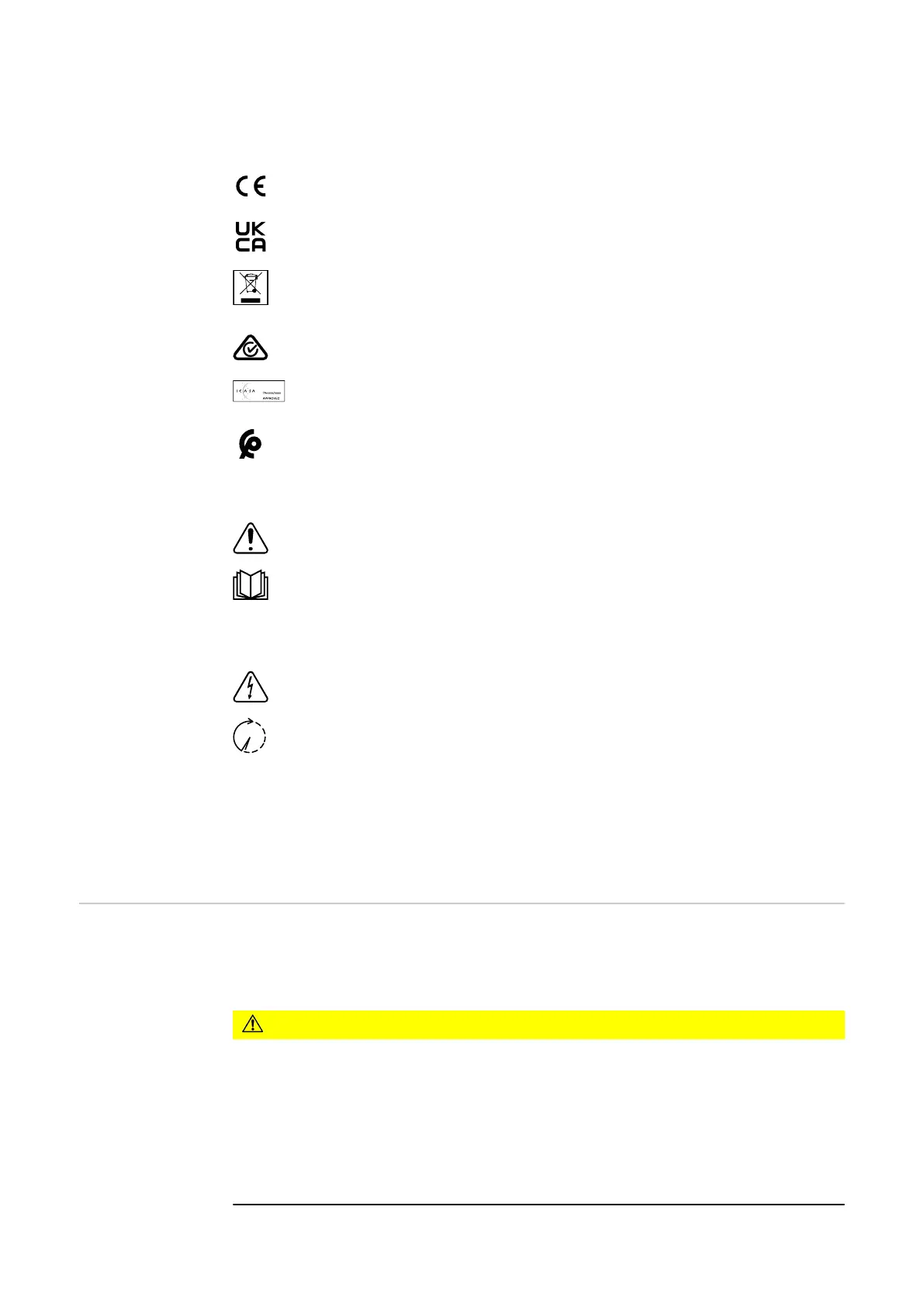

Symbols on the rating plate:
CE mark – confirms compliance with applicable EU directives and
regulations.
UKCA mark – confirms compliance with applicable UK directives and
regulations.
WEEE mark – waste electrical and electronic equipment must be
collected separately and recycled in an environmentally sound manner
in accordance with the European Directive and national law.
RCM mark – tested in accordance with the requirements of Australia
and New Zealand.
ICASA mark – tested in accordance with the requirements of the
Independent Communications Authority of South Africa.
CMIM mark – tested in accordance with IMANOR requirements for
import regulations and compliance with Moroccan standards.
Safety symbols:
Risk of serious injury and property damage due to incorrect operation.
Do not use the functions described here until you have fully read and
understood the following documents:
-
These Operating Instructions.
-
All Operating Instructions for the system components of the
photovoltaic system, especially the safety rules.
Dangerous electrical voltage.
Allow the capacitors of the inverter to discharge (2 minutes).
Warning notice text:
WARNING!
An electric shock can be fatal. Before opening the device, it must be disconnec-
ted and de-energized at the input and output.
System compon-
ent compatibility
All installed components in the photovoltaic system must be compatible and
have the necessary configuration options. The installed components must not re-
strict or negatively influence the functioning of the photovoltaic system.
CAUTION!
Risk due to components in the photovoltaic system that are not compatible
and/or have limited compatibility.
Incompatible components may limit and/or negatively affect the operation
and/or functioning of the photovoltaic system.
Only install components recommended by the manufacturer in the photovol-
taic system.
Before installation, check the compatibility of components not expressly re-
commended with the manufacturer.
54
