Fronius Symo GEN24 10.0 User Manual

The country setup can only be set when using the inverter for the first time. If
the country setup needs to be changed at a later date, please contact your in-
staller / Technical Support team.

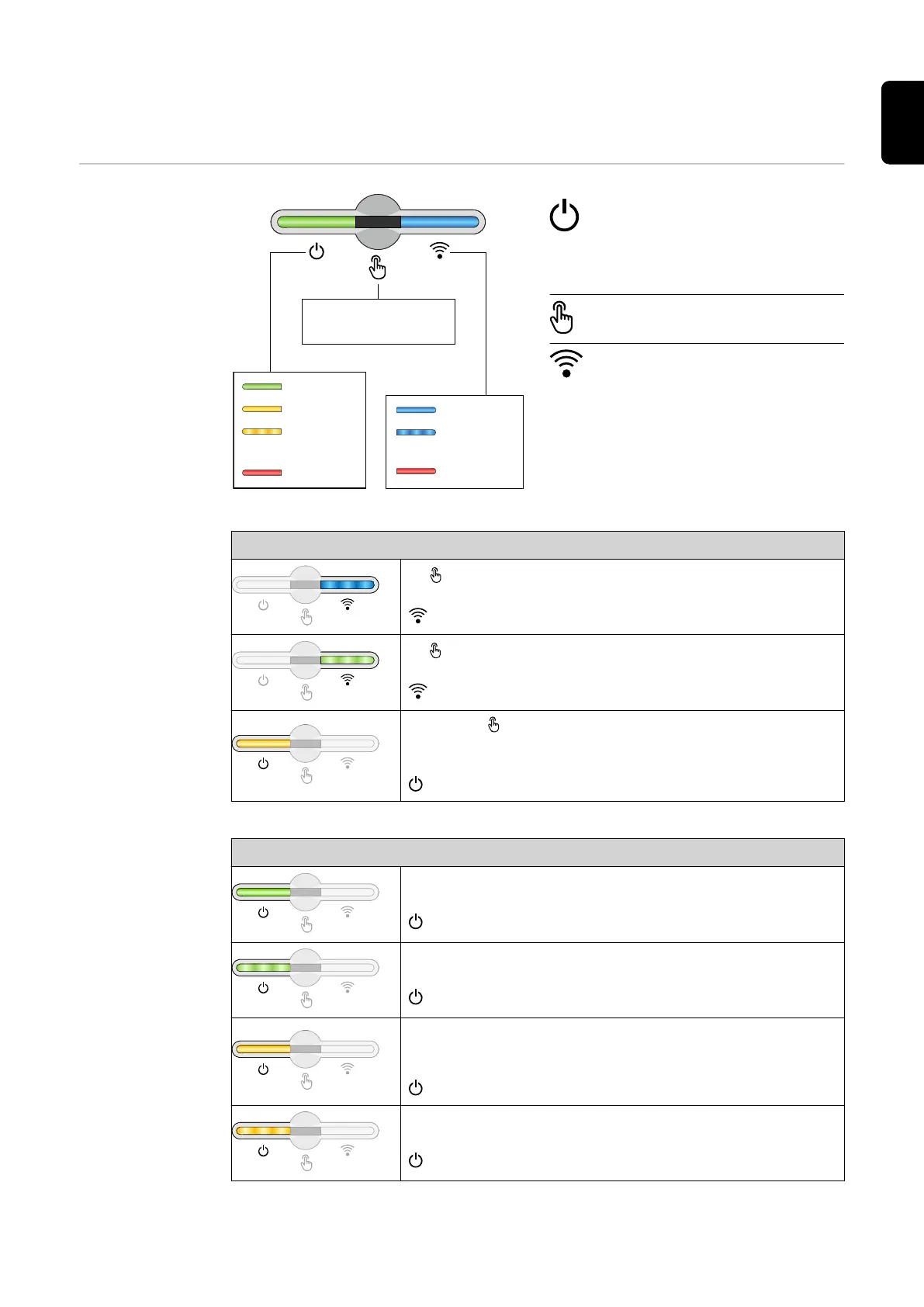

Button functions
and LED status
indicator
Ok
Standby
Uncritical Error
(flashing)
Critical Error
Network Error
Connecting
(flashing)
Connected
1x WLAN access point
2x WPS
3-6 sec. Quit Service Message
The status of the inverter is
shown via the operating status
LED. In the event of faults,
carry out the individual steps
in the Fronius Solar.start app.
The optical sensor is actuated
by touching with a finger.
The status of the connection is
shown via the communication
LED. To establish the connec-
tion, carry out the individual
steps in the Fronius Solar.start
app.
Sensor functions
1x = WLAN access point (AP) is opened.
Flashing blue
2x = WLAN Protected Setup (WPS) is activated.
Flashing green
3 seconds (max. 6 seconds) = the service message is
terminated.
Lights up yellow
LED status indicator
The inverter is operating correctly.
Lights up green
The inverter starts.
Flashing green
The inverter is in standby, is not operational (e.g. no
feed-in at night) or is not configured.
Lights up yellow
The inverter indicates a non-critical status.
Flashing yellow
95
EN

Fronius Symo GEN24 10.0 Specifications

General

Model	Fronius Symo GEN24 10.0
Category	Inverter
AC nominal output	10.0 kW
AC grid frequency	50 Hz / 60 Hz
THD	< 3 %
Number of MPP trackers	2
Protection class	IP66
AC Nominal Voltage	230 V / 400 V
Operating Temperature Range	-25°C to +60°C
Max. apparent AC power	10, 000 VA
AC nominal voltage range	230 V
DC connection	4x DC+ and 4x DC- screw terminals
Maximum AC Power	10000 VA
Maximum DC Power	15 kW
AC Voltage Range	180 - 280 V
Cooling	Active cooling
Warranty	5 years
