1

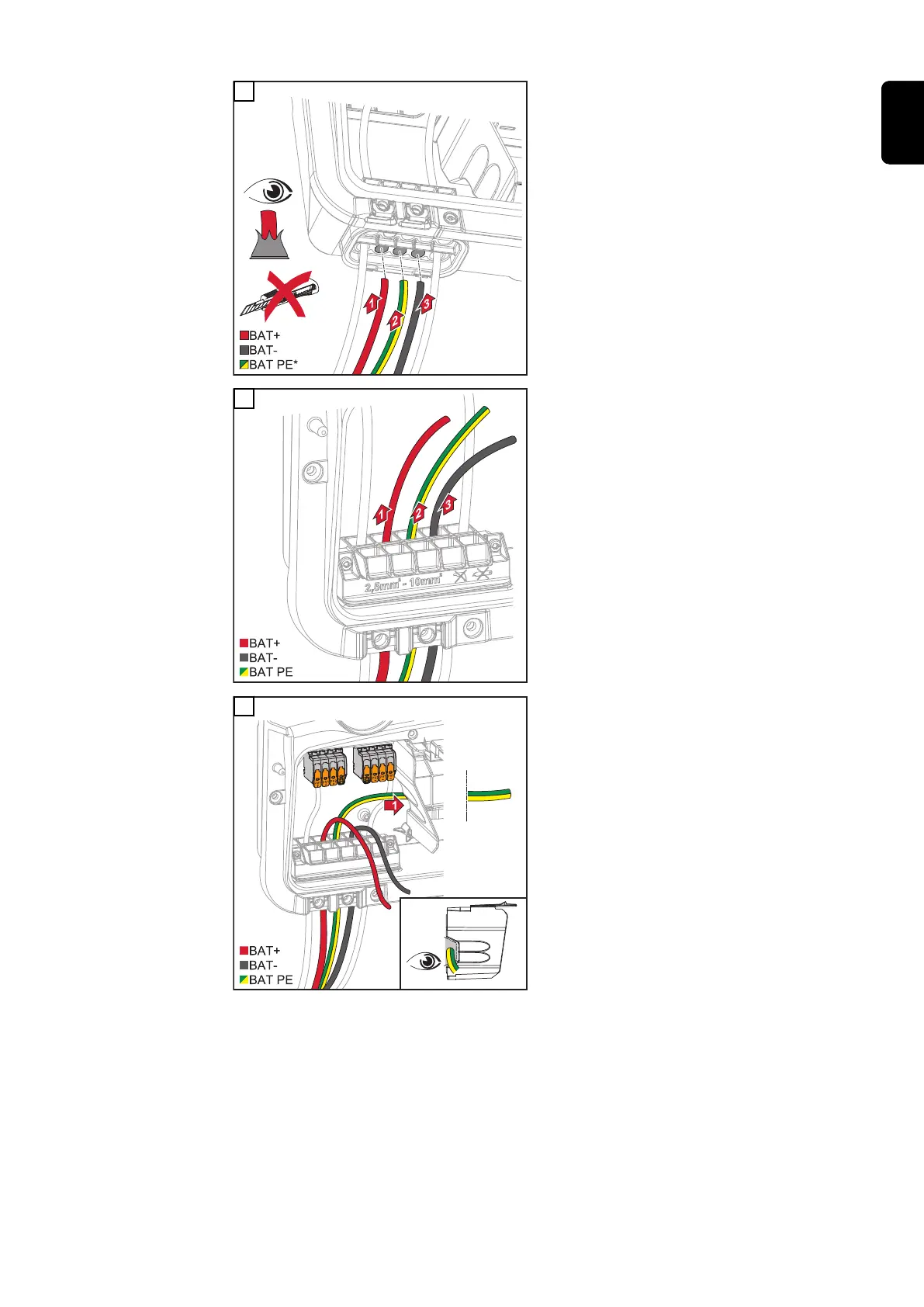

Manually push the battery cables
through the DC bushings.
* When connecting a battery from the
manufacturer BYD, the ground con-
ductor of the battery must be connec-
ted externally (e.g. switch cabinet). Ob-
serve the minimum cross section of
the ground conductor to the battery.
IMPORTANT!
Before stripping the insulation, push
the cables through the DC bushings to
prevent individual wires being bent or
broken.
2
3
Route the battery ground conductor in
the integrated cable duct of the con-
nection area divider into the AC con-
nection area.
75
EN
