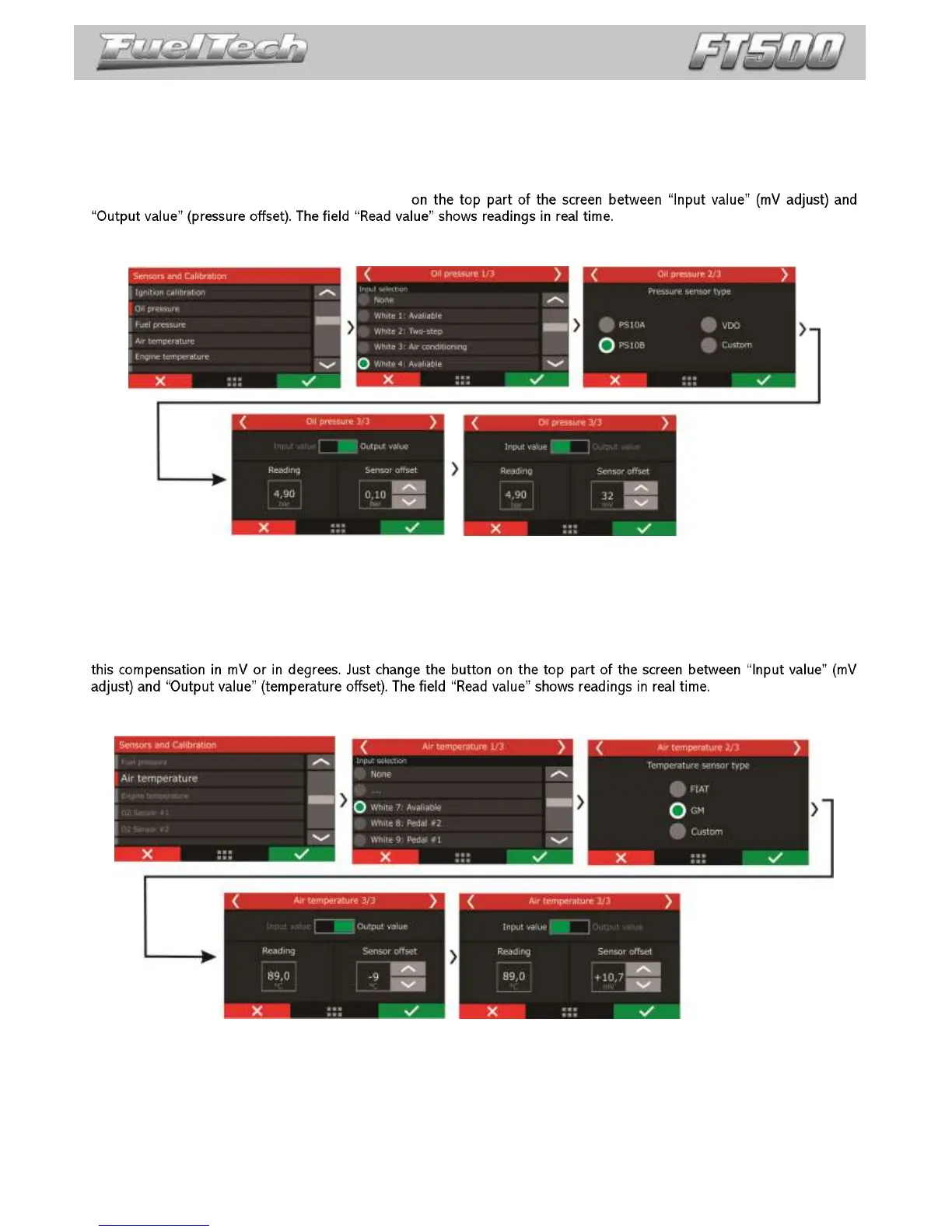

16.3 Fuel/oil pressure sensors inputs
In this menu are the settings for fuel and pressure sensors. There is a predefined configuration for PS-10A, PS10-
B and VDO pressure sensors, but any kind of analog sensor with 0-5V signal can be used. This configuration is done
through the PC and software FT Manager.
In case there is a reading error between the FT500 screen and the real value of the sensor (comparing to an
external gauge), this compensation is easily done by adjusting the sensor offset. It is possible to edit this compensation in
mV or in pressure offset. Just change the button
Make sure your external gauge is correctly calibrated and that the correct sensor is selected, as incorrect use of
this function can cause significant error in pressures reported.
16.4 Intake air and engine temperature sensors
In this menu are the settings for intake air and engine temperature sensors. There is a predefined configuration
for GM and Fiat sensors, but any kind of analog sensor with 0-5V signal can be used. This configuration is done through
the PC and software FT Manager.
In this case, there is a reading error between the FT500 screen and the real value of the sensor (comparing to an
external gauge or to the dashboard), this compensation is easily done by adjusting the sensor offset. It is possible to edit
Make sure your external gauge or dashboard is correctly calibrated and that the correct sensor is selected, as
incorrect use of this option can cause significant error in reported temperatures and possible engine damage.
