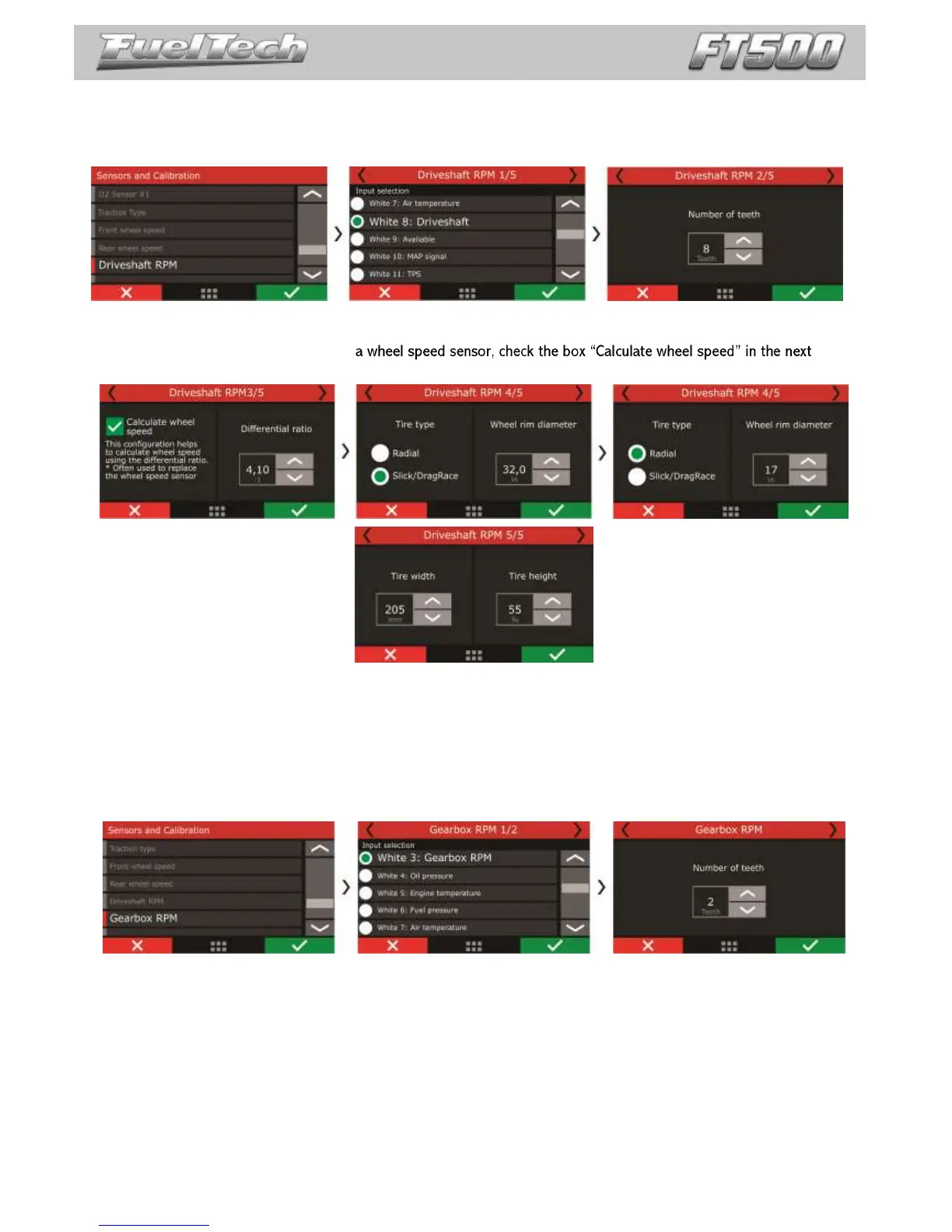

16.8 Driveshaft RPM
This menu is used to setup the driveshaft RPM reading. Select the FT500 sensor input to be used and insert the
trigger wheel number of teeth
With the driveshaft speed and the tire dimensions, it is possible to calculate the traction wheel speed. If you want
to use a driveshaft RPM sensor instead of
screen.
To calculate wheel speed, insert the differential ratio and tire dimensions.
The last setting is related to tire type and size. Slick/Drag Race tires only require the wheel rim diameter. Radial
tires require wheel rim diameter, tire width and height.
16.9 Gearbox RPM
This feature allows the gearbox input shaft RPM Reading.
The reading is very useful to analyze the clutch/torque converter slip. Just insert the sensor input and the number
of teeth.
