7.5 Pedal/throttle

Standard input for TPS sensor signal

is #11, but it is possible to set this input on

any available input. Pedal/Throttle calibration

must be performed as shown in chapter 13.4.

Electronic throttle control ETC

First data to be inserted on the ECU when using electronic Throttle is its code (not the throttle part number). This

code is found on the FT Manager Software. If your throttle is not on the list, please, contact our tech support to check

compatibility first.

Throttle position sensor input

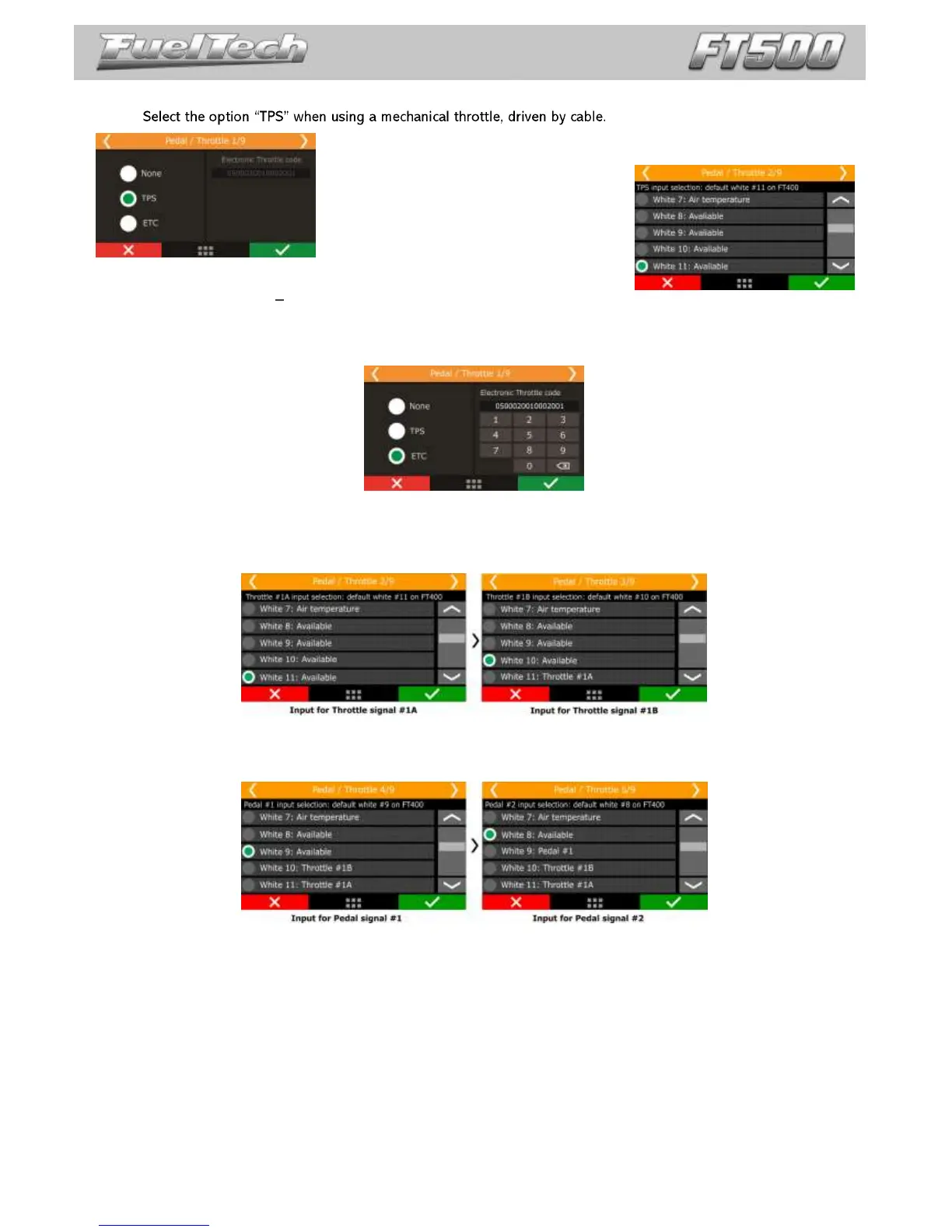

After inserting the Throttle code, set the input that will be connected to the throttle position sensor, usually there

are two signals on the throttle. Standard inputs are wires white #11 (Throttle signal #1A) and white #10 (Throttle signal

#1B).

Pedal position sensor input

Now, setup the inputs that will be connected pedal #1 and pedal #2 position sensors. The standard inputs are

wires white #9 (pedal #1) and white #8 (pedal #2).
