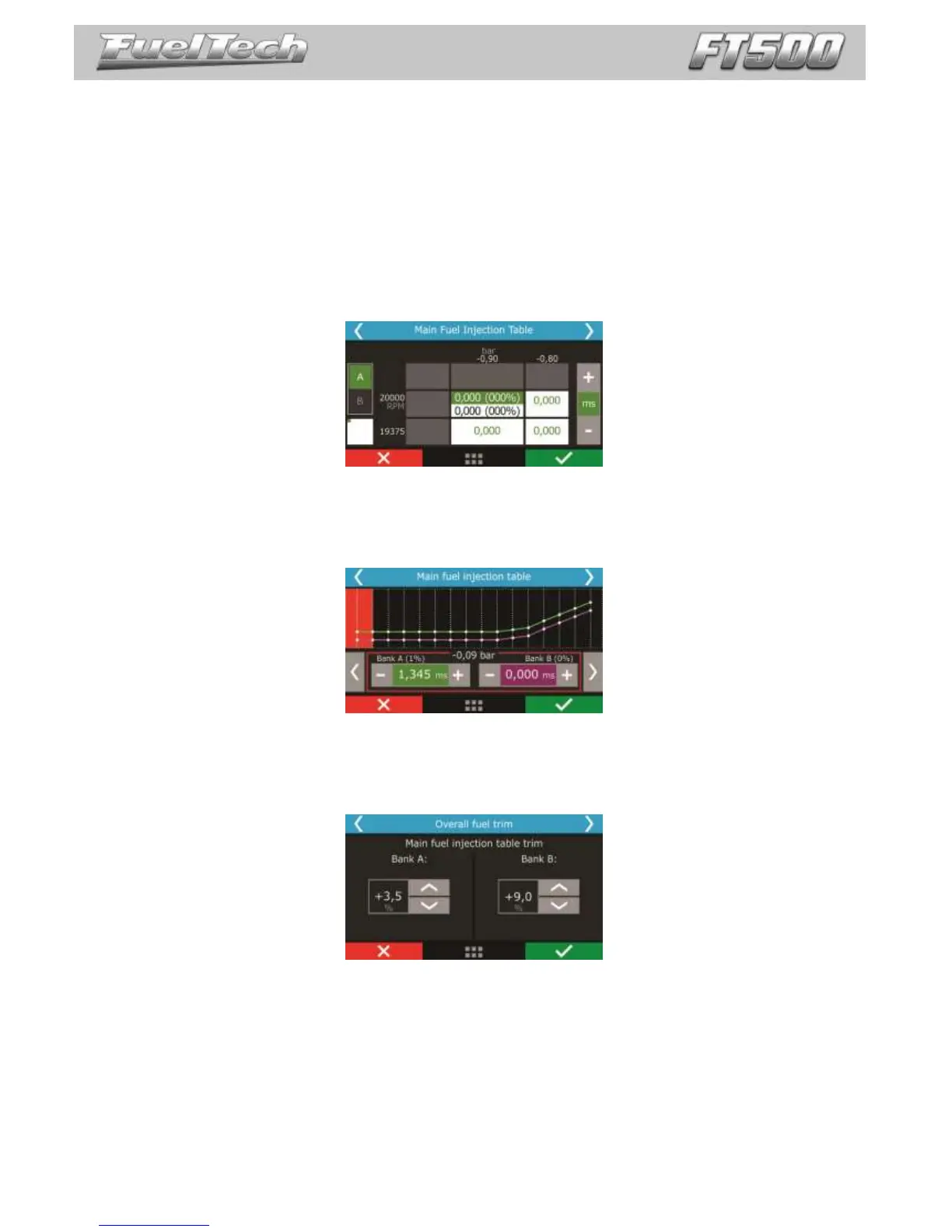

18 Fuel tables adjust
18.1 Main fuel table
Editing mode for main fuel table is on basic mode by default, easily configured for advanced mode through
FTManager Software and a PC.
On FTManager, it is possible to edit the map cell ranges of MAP/TPS, RPM, etc., making it possible to increase the
detail level on the maps where a fine tuning is needed.
Basic mode
In this mode the main fuel map editing is a 2D table with an axis for TPS/MAP and other for injection time. The
cell interval may be changed via FTManager Software.
Advanced mode
In this mode, main fuel map is a 3D table with TPS/MAP ranges X injection time X RPM.
The cell interval may be changed via FTManager Software.
18.2 Overall fuel trim
This function adds or removes fuel from the entire map. When two independent banks are used, this
compensation is done individually by bank.
This compensation is a percentage applied over the injection time, not over the injector duty cycle.
