6.4.4 Meter options
[ 1 ] Frequency meters
Connect a frequency meter to analog signal output terminals [FMA] (+) and [11] (-) of the inverter to

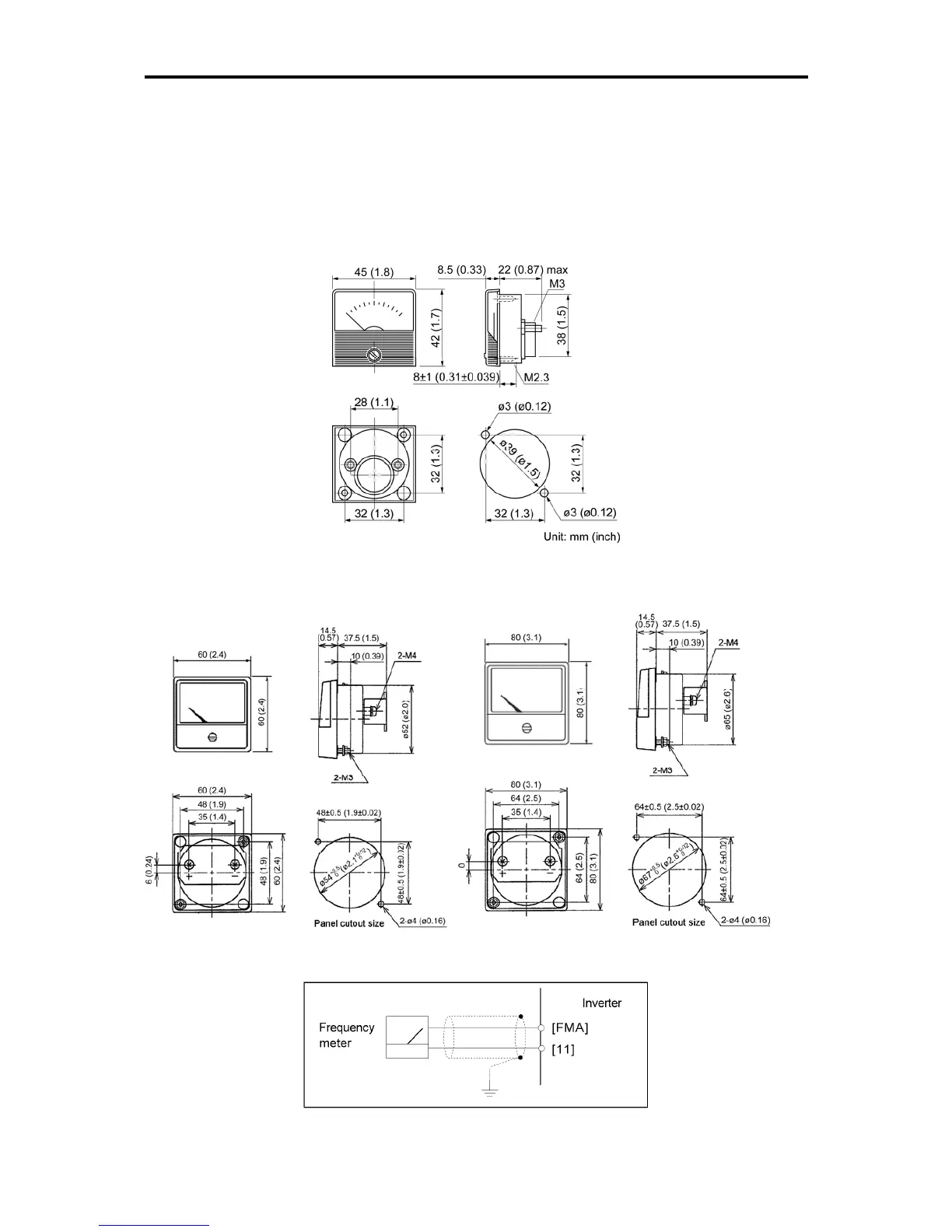

measure the frequency component selected by function code F31. Figure 6.15 shows the dimensions
of the frequency meter and a connection example.
Model: TRM-45 (10 VDC, 1 mA)
Model: FMN-60 (10 VDC, 1 mA) Model: FMN-80 (10 VDC, 1 mA)
Unit: mm (inch)
Figure 6.15 Frequency Meter Dimensions and Connection Example
