8.6 External Dimensions

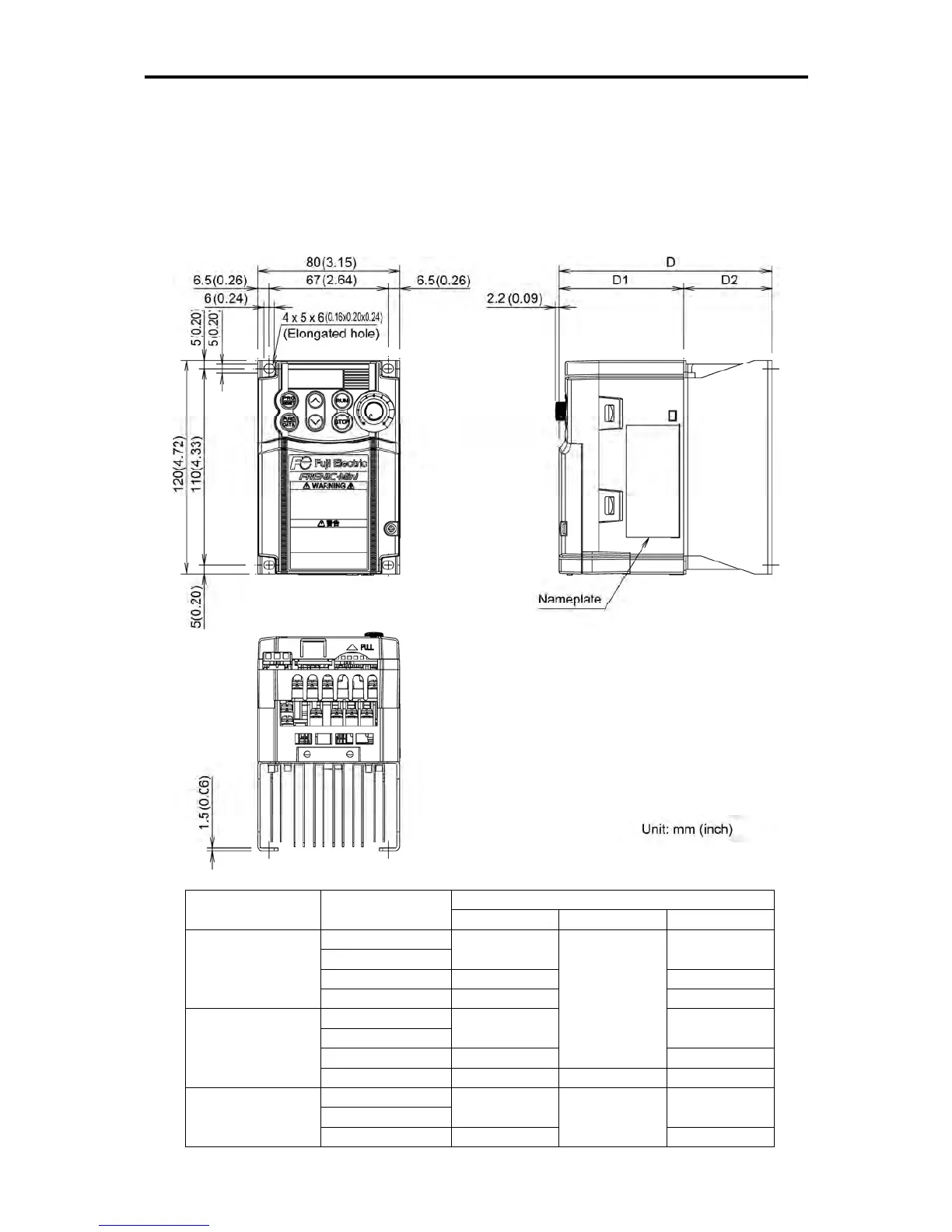

The diagrams below show external dimensions of FRENIC-Mini according to the inverter type.
8.6.1 Standard models
Figure A
Dimensions mm (inch)
Power supply voltage Inverter type
D D1 D2
FRN0001C2S-2
FRN0002C2S-2
80 (3.15) 10 (0.39)
FRN0004C2S-2 95 (3.74) 25 (0.98)
Three-phase 200 V
FRN0006C2S-2 120 (4.72) 50 (1.97)
FRN0001C2S-7
FRN0002C2S-7
80 (3.15) 10 (0.39)
FRN0004C2S-7 95 (3.74)
70 (2.76)
25 (0.98)
Single-phase 200 V
FRN0006C2S-7 140 (5.51) 90 (3.54) 50 (1.97)
FRN0001C2S-6U
FRN0002C2S-6U
100 (3.94) 10 (0.39)
Single-phase 100 V
FRN0003C2S-6U 115 (4.53)
90 (3.54)
25 (0.98)
Note: A box () in the above table replaces A, C, E, or U depending on the shipping destination.
