Chap. 2 PARTS NAMES AND FUNCTIONS
2.1 External View and Terminal Blocks
(1) External view
(2) Wiring section
(a) FRN0006C2S-2 (b) FRN0010C2S-2
(*When connecting the RS-485 communications cable, remove the control circuit terminal block cover and snip off the barrier
provided in it using nippers.)
Note: A box () in model names replaces A, C, E, or U depending on shipping destination.

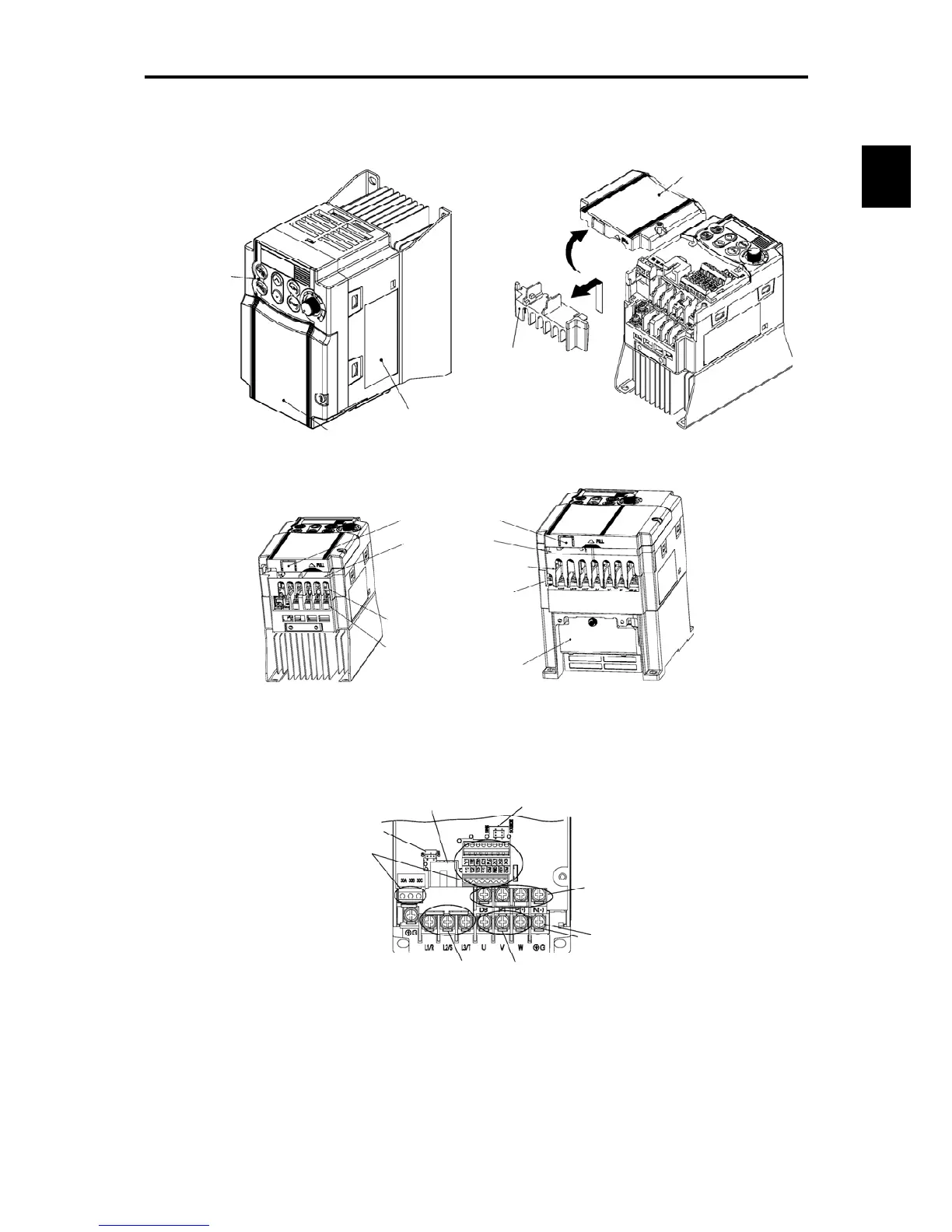

Figure 2.1 External View of FRENIC-Mini
(FRN0010C2S-2)
Figure 2.2 Enlarged View of Terminal Blocks
The above figures show three-phase power source models. The terminal allocation of the power input
terminals L1/R, L2/S, L3/T, and grounding terminals for single-phase models differs from that shown
in above figures.

Refer to Chapter 8 "SPECIFICATIONS" for details on terminal functions, allocation and
connection and to Chapter 6, Section 6.2.1 "Recommended wires" when selecting wires.

For details on the keys and their functions, refer to Section 2.2 "LED Monitor, Potentiometer and
Keys on the Keypad." For details on keying operation and function code setting, refer to Chapter
3 "OPERATION USING THE KEYPAD."
Nameplate
Control circuit terminal
bock cover
Control circuit terminal
block cover
Main circuit
terminal block cover
Barrie
r
for the RS-485
communications port*
Control circuit wire
port
Cooling fan
L1/R, L2/S, L3/T, P1, P (+),
and N(-) wire port
L1/R, L2/S, L3/T, U, V, W,
and grounding wire port
DB, U, V, W,
and grounding
wire port
DB, P1, P (+) and
N (-) cable port
Keypad
Terminating resistor
ON/OFF jumper switch
SINK/SOURCE jumper switch
Grounding terminal
Grounding terminal
Control circuit terminal block
Power input terminal block
Inverter output terminal block
DC reactor, braking resistor and
DC link bus terminal block
RJ-45 connecotr
