Fuji Electric PXR3 User Manual

11
2-2 Basic operations
Just after power-on:
The PV (process value) is displayed just after power-on.
SV
C2
C1
SEL
AL2
AL1
How to switch parameters:

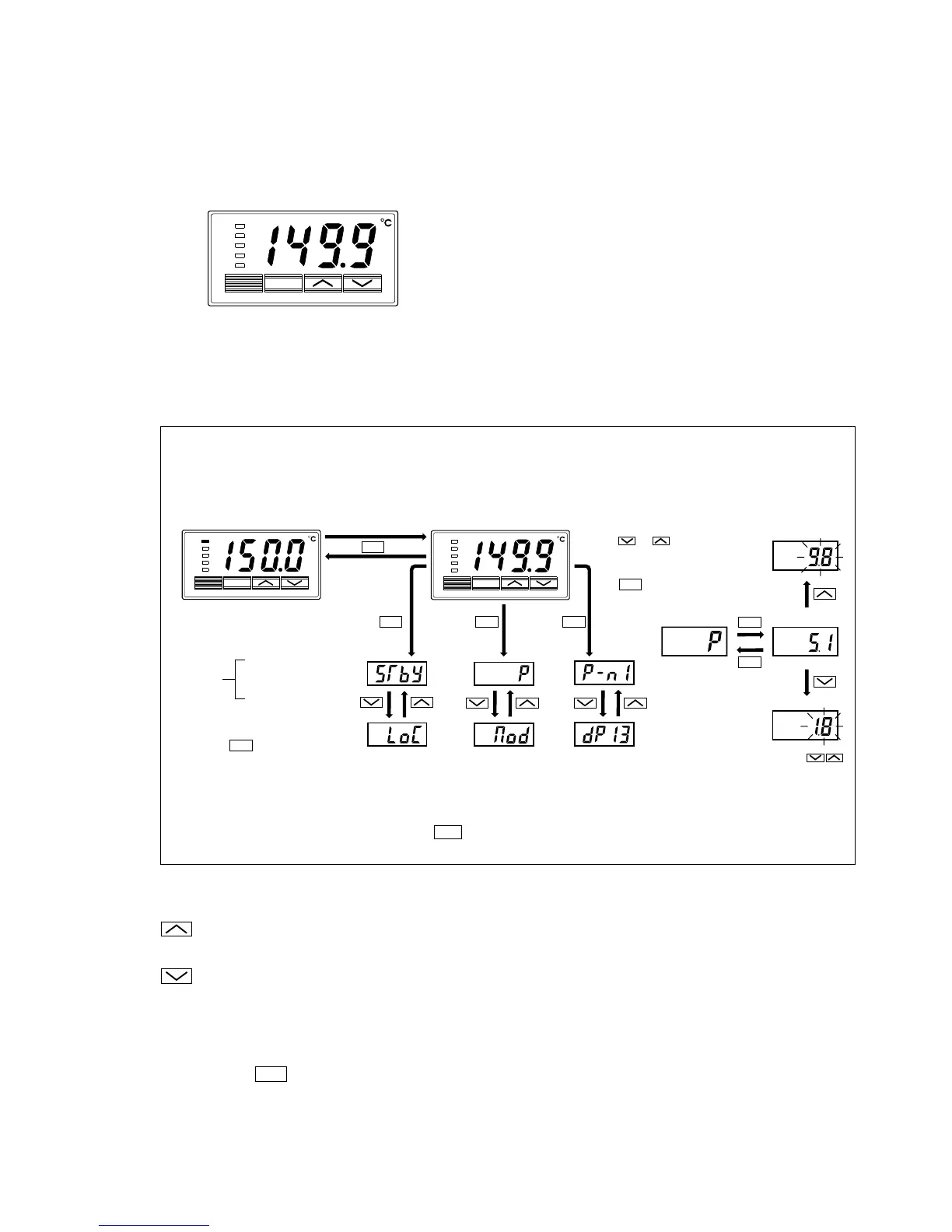

The figure below shows the basic operations for the PXR3.
If it has not been operated for 30 seconds, the display returns to the PV display.
Pressing the key for 2 second after setting parameters, the indication
shifts to the SV indication state.
Display state just after power-on
(PV indication)(SV indication)
SEL
(apporox.
1 second)
Parameters of
the first block
Press the key to
switch PV to / from SV.
SV lamp
Parameters of
the second block
Parameters of
the third block
Set data indication
Set data registration
Pressing and holding the
keys makes the value increase
or decrease fast.
SEL
(apporox.
3 second)
SEL
(apporox.
5 second)
SEL
SEL
Flickers when the set value is
changed by pressing the
or key.
Stop flickering when the SV
is registered by pressing the
key.
Parameter setting
Basic operations for the PXR3
SV
C2
C1
SEL
AL2
AL1
SV
C2
C1
SEL
AL2
AL1
OFF
……indicatingPV
Lit, flickers
……indicatingSV
Indication switching PV (process value)
to / from SV (set value)
SEL
SEL
SEL
SEL
How to set values:
key: One press increases the value by 1.
Press and hold this key to increase the value.
key: One press decreases the value by 1.
Press and hold this key to decrease the value.
How to register the set data:
By pressing the
SEL
key, the displayed values are registered.
Note that the SV (SV0) will be registered in 3 seconds without any operation. (Refer to P.12)
When changed the parameters “P-n2”, “ALM1” or “ALM2”, turn the power OFF and ON.
Exp.) In case when the PV (process value)
is 149.9.
