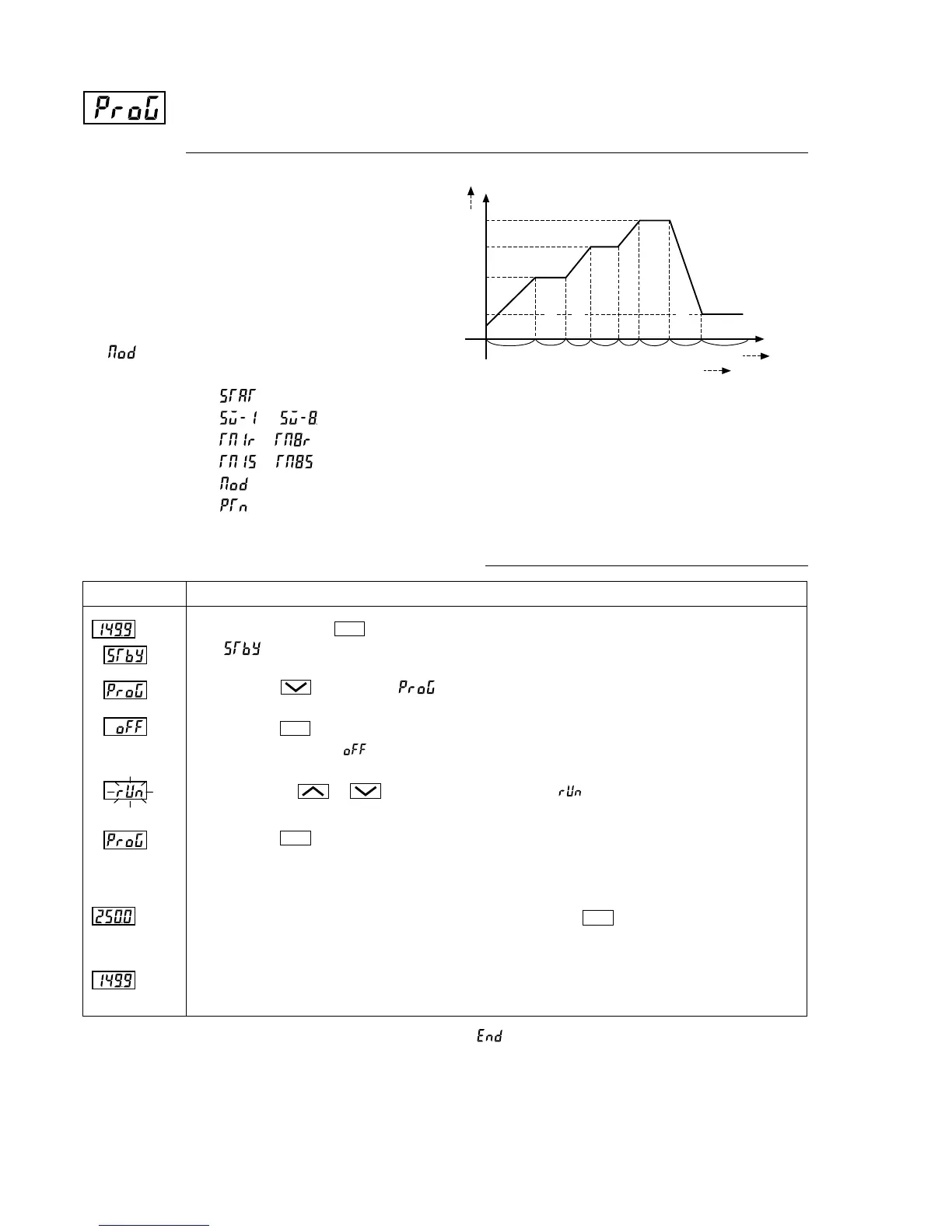

Ramp-soak control (Settings: oFF/rUn/hLd) (Option)
[Description]
• This function automatically changes the SV (Setting
value) according to the program pattern set in advance as
shown in the right line graph. Up to eight pairs of ramp-
soak operation can be programmed.
• The first ramp starts at the PV (Measured value) that is
the one just before running the program.
• The program can also automatically run at power-on
(Power-on starting function). Refer to the parameter of
(page 46).
Related parameters:
(page 46)
to (page 46)
to (page 46)
to (page 46)
(page 46)
(page 45)
[Setting example] Starting the ramp-soak operation
SV-3
SV-2
SV-1
SV-4
PV
Ramp: the section in which the SV changes toward the target value.
Soak: the section in which the SV is the target value, and remains unchanged.
First ramp
TM1r
TM1S
TM2r
TM2S
TM3S
TM3r TM4r
TM4S
Up to SV-8
Up to TM8s
Up to TM8r
First soak
Second ramp
Second soak
Third ramp
Third soak
Fourth ramp
Fourth soak
Press the key once. Then, the program will start according to the ramp-soak pattern that is
set in advance.
Press and hold the key for one second.
will be displayed.
Pressing the or keys, the display flickers and is displayed.
(Repeat the procedure from 3 to 5 to check the set value.)
Press the key once.
The current setting ( ) is displayed.
Press the key to display .
SEL
SEL
SEL
1.
4.
If you want to display the operation status, press and hold the key for two seconds.
The SV is displayed on the display area.
If unoperated state continues, the PV will be displayed.
6.
2.
3.
SEL
5.
*1) When the program was not set, it is turned to .
*1
Display Operating procedure
PV indication
PV indication
SV indication
