298 7 Maintenance

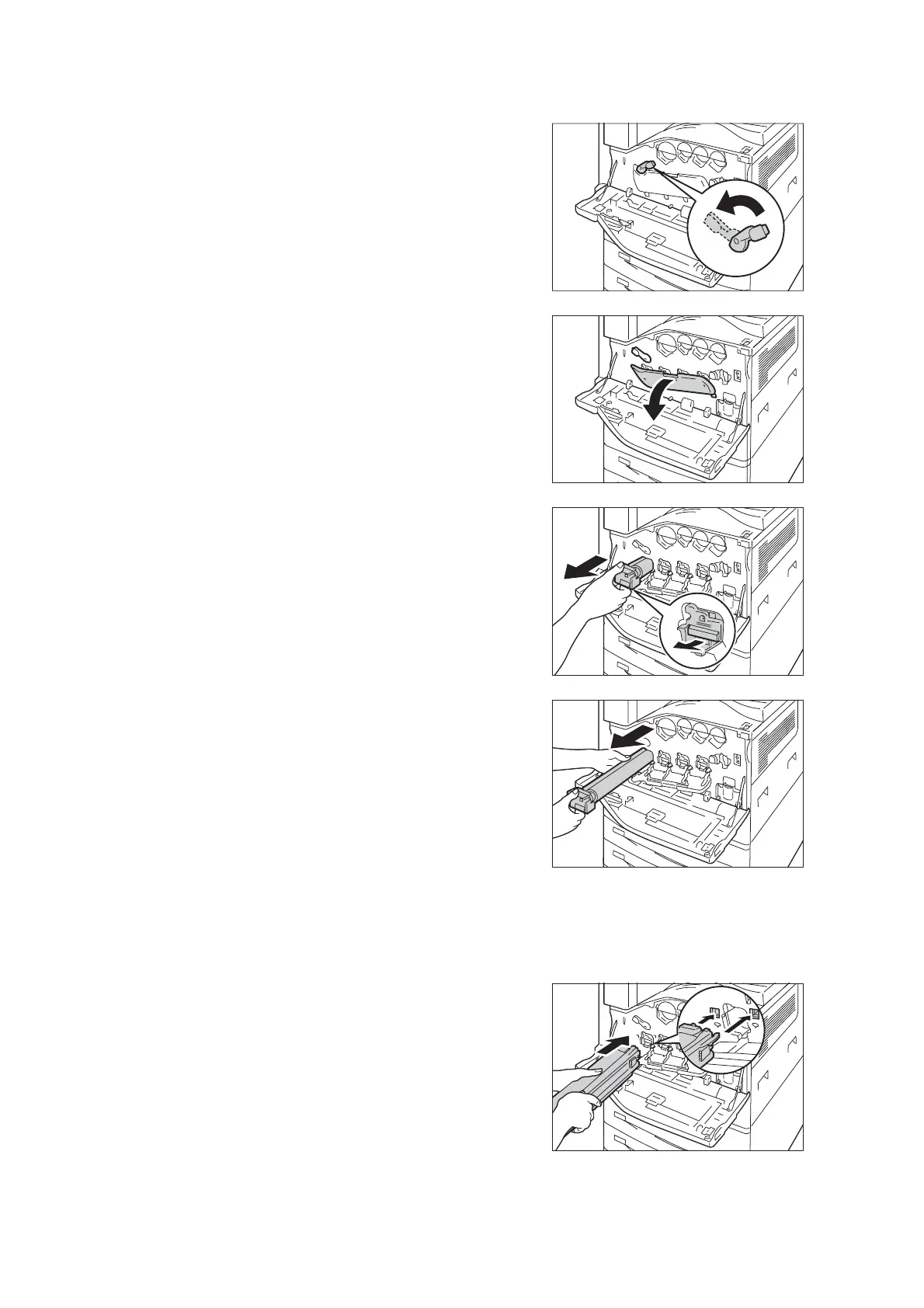

2. Rotate the release lever of the drum
cartridge cover counterclockwise.
3. Lower the cover.
Note
• The drum cartridge is unlocked.
4. Grasp the handle of the drum cartridge
indicated in the message (R1, R2, R3, or
R4) and gently slide out the cartridge.
Important
• When removing the drum cartridge, be careful not to
drop it on the floor.
5. Hold the bottom of the drum cartridge as
shown in the illustration, and pull it out from
the machine.
Important
• Be careful not to touch the toner attached to the
cartridge.
6. Take the new drum cartridge out of the box,
and insert the used drum cartridge into the
supplied plastic bag and place it into the
box.
Important
• Do not place the new drum cartridge in an upright
position.
7. Insert the front two points of the new drum
cartridge with protective cover in the holes
on the machine.
Note
• Insert the two points as shown in the illustration on the
right.
To Next Page
