7.1 Replacing Consumables 299

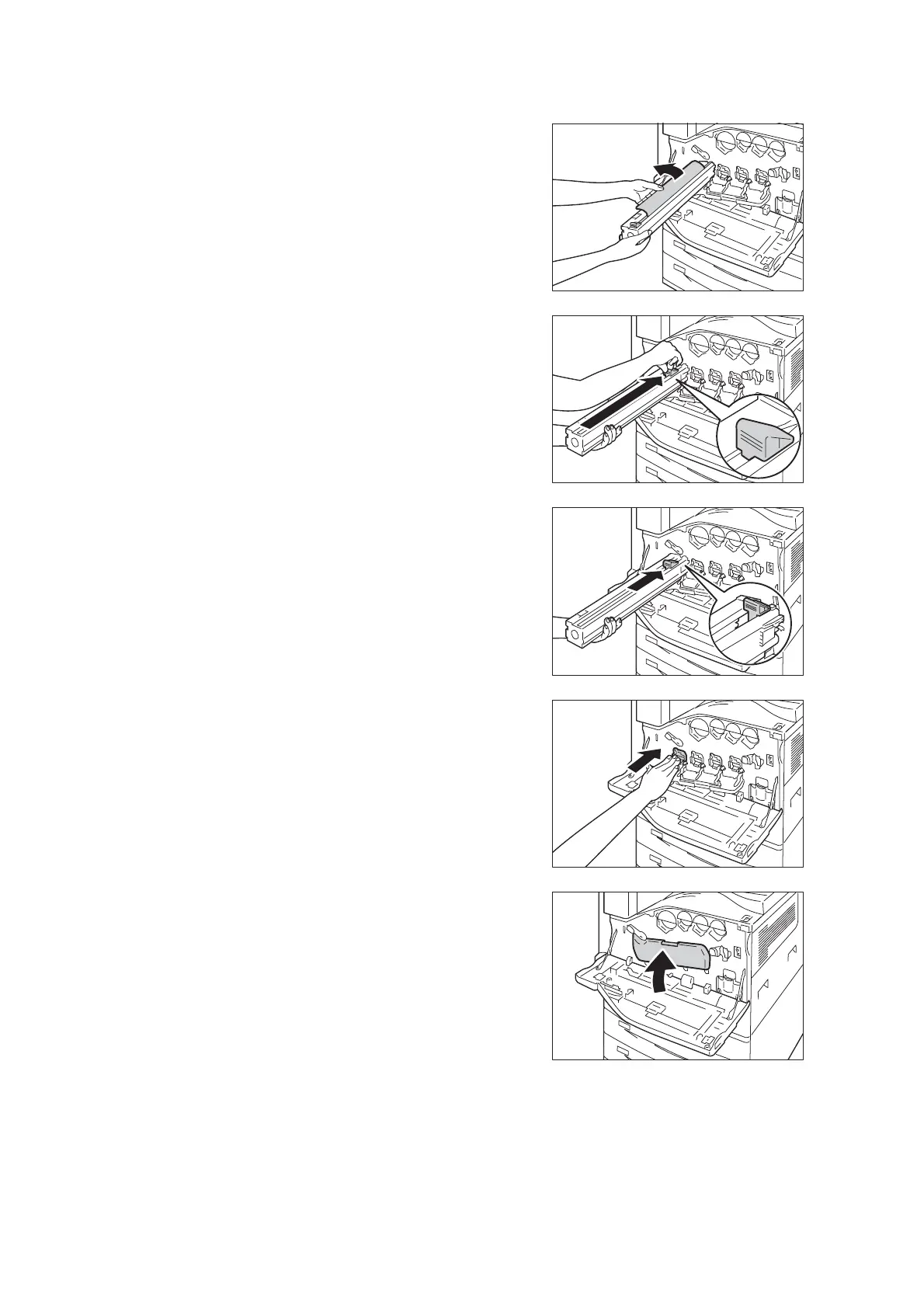

8. Pull out the black paper while holding the
protective cover with one hand. While doing
so, keep the two points inserted in the
holes.
9. Grasp the tab on top of the cartridge and
slide it toward the machine while holding
the protective cover with one hand.
10. Slide the tab until it stops.
11. Carefully remove the protective cover.
12. Push the drum cartridge straight in the
housing until it stops.
Note
• Put the protective cover into the drum cartridge box.
13. Return the cover to the original position.
Note
• Push the cover until it clicks into place.
